Challenger MT575E

Last Updated: July 2024

Overview

The Challenger MT575E is fitted with a 6-cylinder diesel engine provided by AGCO Power, offering a displacement of 449 ci. The liquid-cooled engine is turbocharged and intercooled, contributing to a rated power output of 240 hp at 2100 RPM. An electric starter is part of the engine's configuration. The tractor's substantial power is managed via a continuously variable transmission (CVT) with infinite speed adjustment in both forward (Low range 0-11 mph, high range 0-25 mph) and reverse (Low range 0-19 mph, high range 0-19 mph) directions, giving this tractor a wide range of speed and torque options. The tractor operates on a closed-center load sensing hydraulic system and includes a rear hitch of type III/IIIN. Additional details from independent test results have been incorporated, including maximum torque, torque rise, hydraulic performance, fuel efficiency, and fuel consumption figures.

Key Specifications

Power Output: 240

Transmission: CVT

Fuel Type: Diesel

Image Gallery

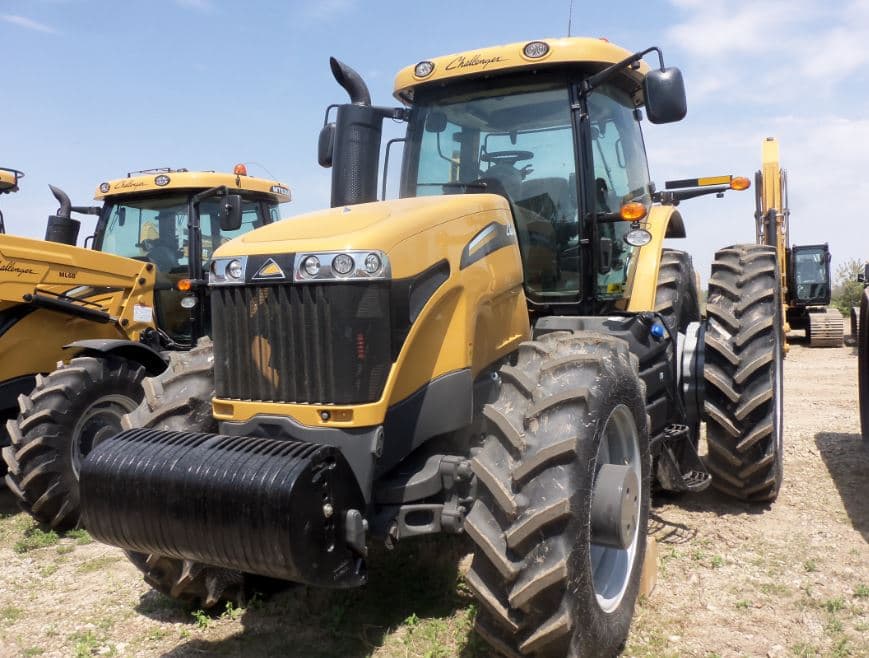

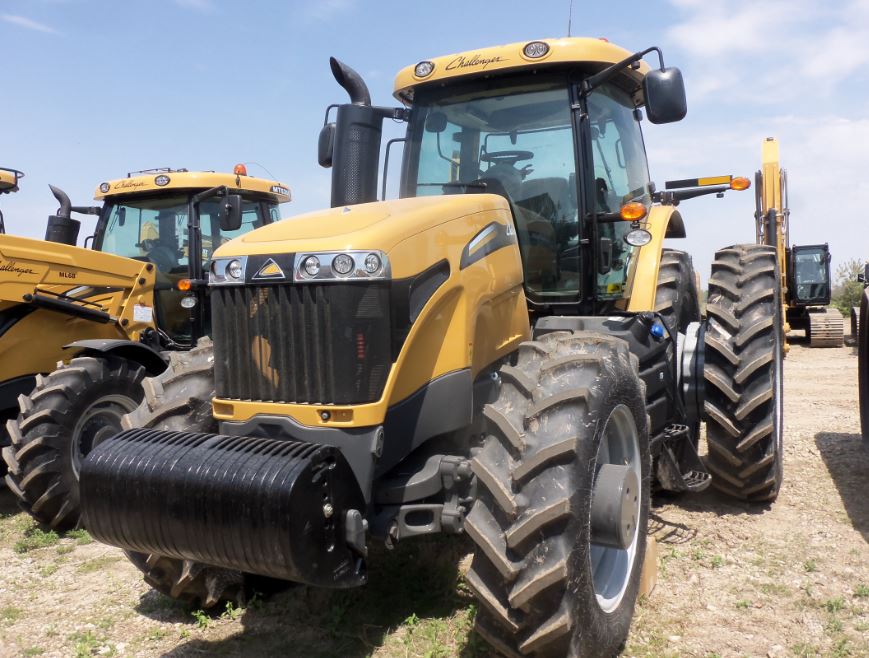

Challenger MT575E Tractor

Technical Specifications

Engine

Manufacturer: AGCO Power
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 6
Displacement (ci): 449
Bore (in): 4.252
Stroke (in): 5.276
Rated RPM: 2100
Power Output (hp): 240

Transmission

Type: CVT
Forward Gears: Infinite speed adjustment (Low range 0-11 mph, high range 0-25 mph)
Reverse Gears: Infinite speed adjustment (Low range 0-19 mph, high range 0-19 mph)
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: III/IIIN
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed-center load sensing

Test Results

Nebraska Tractor Test Laboratory - Test Date: September to November, 2015

Maximum Power and Fuel Consumption

Maximum Power: 192.0 HP (143.2 kW) at 2100 rpm
Fuel Consumption at Maximum Power: 10.92 gal/hr (41.33 l/hr) with a fuel efficiency of 0.378 lb/hp.hr (0.230 kg/kWh)
DEF Consumption: Not provided

Drawbar Performance

Power at Rated Engine Speed (13th Gear): 112.1 HP (83.64 kW) with a drawbar pull of 6755 lbs (30.05 kN) and a speed of 6.10 mph (9.82 km/h)
Fuel Consumption at Rated Speed: 0.509 lb/hp.hr (0.310 kg/kWh) with a fuel efficiency of 12.97 Hp.hr/gal (2.56 kWh/l)

Torque and Engine Performance

Maximum Torque: 674.3 lb-ft (914.2 Nm) at 1150 rpm
Torque Rise: 33.0% with a power increase at 1802 rpm of 14.5%

Hydraulic Performance

Maximum Force Exerted: 13,900 lbs (61.8 kN) through the entire range
Pump Delivery Rate: 30.7 GPM (116.2 l/min) with sustained pressure of 2700 psi (186 bar)
Hydraulic Power: 41.0 HP (30.6 kW) at delivery pressure of 1620 psi (126 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.41 Hp.hr/gal (3.43 kWh/l)
Fuel Consumption: 9.11 gal/hr (34.45 l/hr) at 1920 rpm

NTTL.(2015). Nebraska Summary: S1022 Challenger MT575E Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3337
