Challenger MT565E

Last Updated: July 2024

Overview

The Challenger MT565E is powered by a 6-cylinder, 402 ci, turbocharged and intercooled AGCO Power diesel engine with liquid cooling. It features selective catalytic reduction (SCR) emission control and consumes DEF at 0.70 Gal/hr. The engine produces 197.8 hp at 1902 rpm with a maximum torque of 646 lb-ft at 1453 rpm and 44.5% torque rise. It has a continuously variable transmission with infinite forward and reverse gears. Key performance metrics include 10.72 Gal/hr fuel consumption at max power, 15,106 lbs maximum hydraulic force, 29 GPM pump delivery rate, and 18.67 Hp.hr/gal fuel efficiency at 1030 rpm PTO speed.

Key Specifications

Power Output: 197.8

Transmission: Continuously-variable transmission (CVT)

Fuel Type: Diesel

Image Gallery

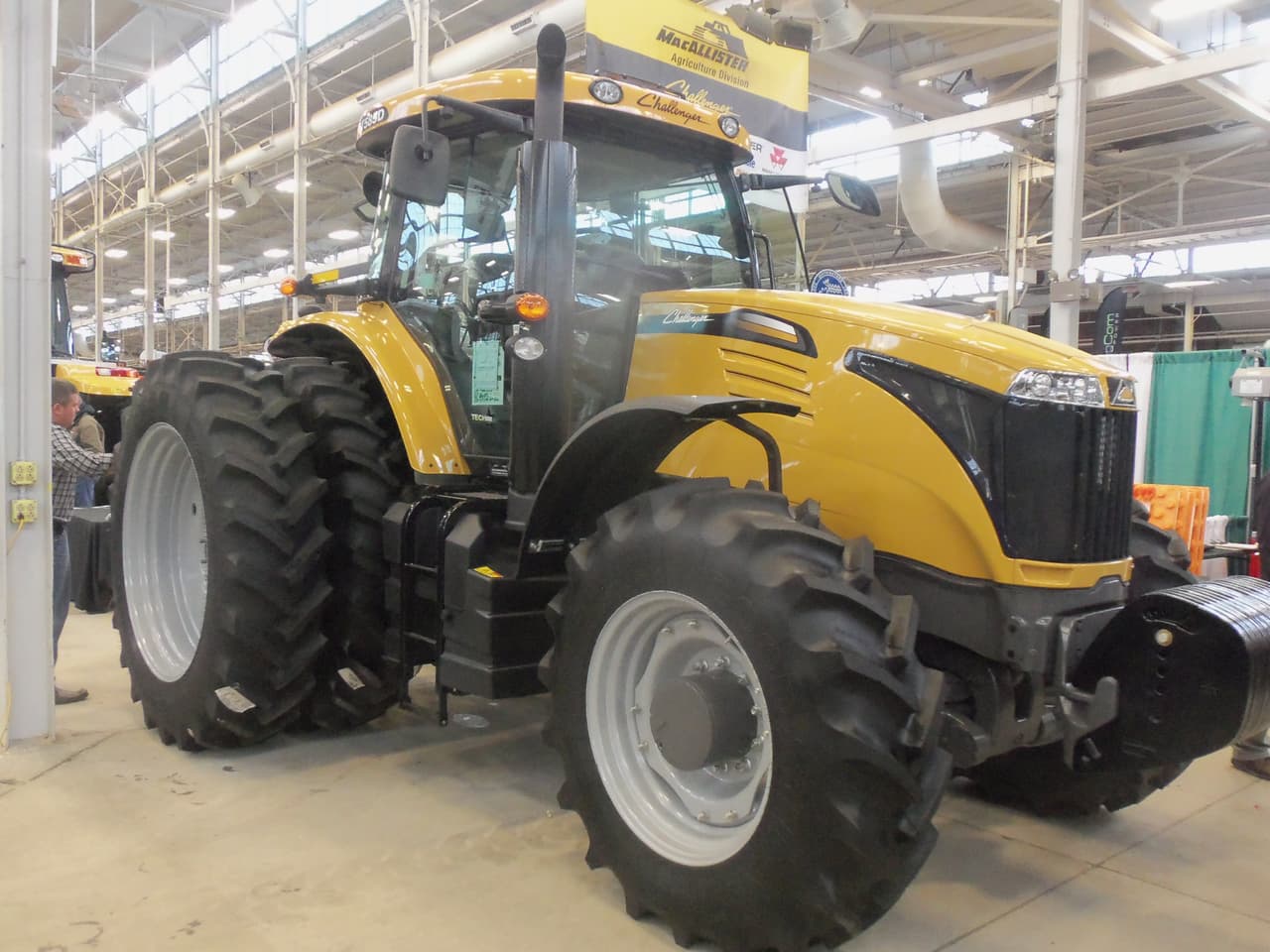

Challenger MT565E Tractor

Technical Specifications

Engine

Manufacturer: AGCO Power
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged and intercooled
Cylinders: 6
Displacement (ci): 402
Bore (in): 4.252
Stroke (in): 4.724
Rated RPM: 2100
Power Output (hp): 197.8

Transmission

Type: Continuously-variable transmission (CVT)
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: III/IIIN
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed-center load sensing

Test Results

Nebraska Tractor Test Laboratory - Test Date: February to March, 2016

Maximum Power and Fuel Consumption

Maximum Power: 191.0 HP (142.4 kW) at 1802 rpm
Fuel Consumption at Maximum Power: 10.05 Gal/hr (38.0 l/h) with a fuel efficiency of 0.367 lb/hp.hr (0.223 kg/kW.h)
DEF Consumption: 0.70 Gal/hr (2.66 l/h)

Drawbar Performance

Power at Rated Engine Speed (11th Gear): 137.2 HP (102.3 kW) with a drawbar pull of 7440 lbs (33.10 kN) and a speed of 5.26 mph (8.47 km/h)
Fuel Consumption at Rated Speed: 0.478 lb/hp.hr (0.291 kg/kW.h) with a fuel efficiency of 14.87 Hp.hr/gal (2.93 kW.h/l)

Torque and Engine Performance

Maximum Torque: 413.5 lb.-ft. (561.9 Nm) at 1400 rpm
Torque Rise: 51.3% with a power increase at 1800 rpm of 14.3%

Hydraulic Performance

Maximum Force Exerted: 13890 lbs (61.8 kN) at hitch points
Pump Delivery Rate: 29 GPM (110 l/min) at minimum pressure and standard pump, with an optional rate of 39 GPM (147 l/min)
Hydraulic Power: 41.0 HP (30.6 kW) at delivery pressure of 2720 psi (187 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 18.16 Hp.hr/gal (3.58 kW.h/l)
Fuel Consumption: 10.00 Gal/hr (37.85 l/h) at 1799 rpm

NTTL. (2016). Nebraska OECD Tractor Test 2947 for Challenger MT565E Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3338
