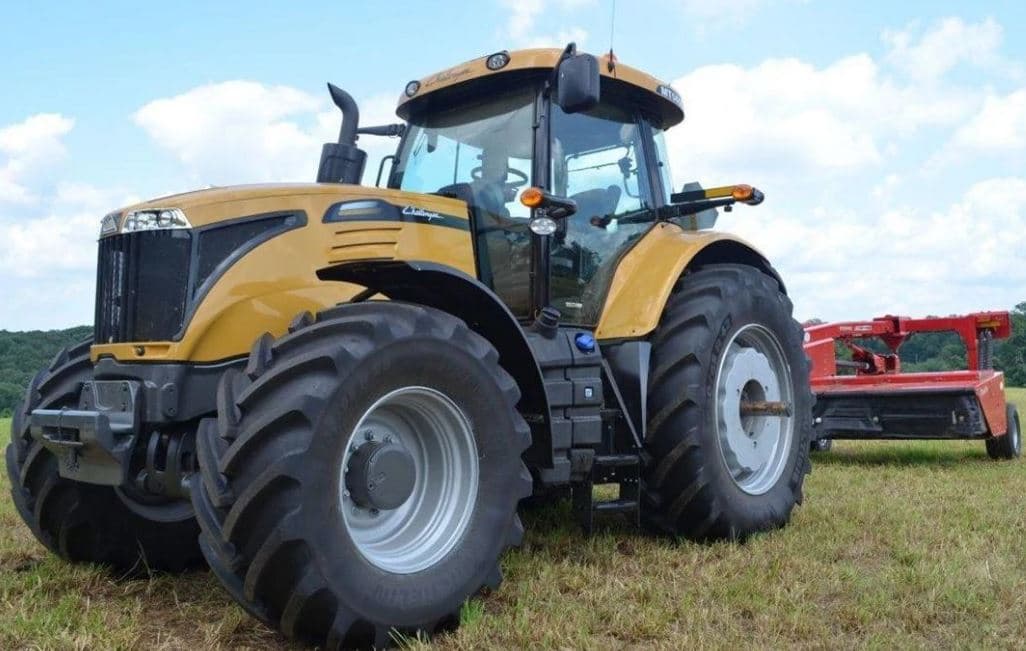

Challenger MT565

Last Updated: June 2024

Overview

The Challenger MT565 is a robust row-crop tractor designed to handle a variety of agricultural work. With its 2WD system and powerful SISU turbocharged diesel engine, this tractor offers reliable performance and durability. It features a liquid-cooled, six-cylinder vertical engine with an impressive displacement of 402 ci, and a bore and stroke of 4.251 by 4.724 inches, respectively. The MT565 offers 18 forward gears and 6 reverse, allowing for flexible and efficient operation across different tasks. The tractor boasts a sizable dimension frame, measuring 198 inches in length, 98 inches in width, and an overall height of 120 inches with the cab. Weight differs based on the drivetrain, with the 2WD version weighing around 15,555 lbs and the 4WD version at about 16,465 lbs. The rear type III hitch provides attachment versatility for the operations.
Show more...

Key Specifications

Category: Row Crop

Transmission: Full power shift

Drive Type: 2WD

Operating Weight: 15555 (2WD), 16465 (4WD)

Fuel Type: Diesel

Challenger MT565 vs. Similar Tractors

Operating Weight
Above Average
Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer
SISU
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
402
Bore (in)
4.251
Stroke (in)
4.724
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Full power shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
198
Width (in)
98
Height (in)
120
Operating Weight (lb)
15555 (2WD), 16465 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
III
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Closed center pressure flow compensated (PFC)
