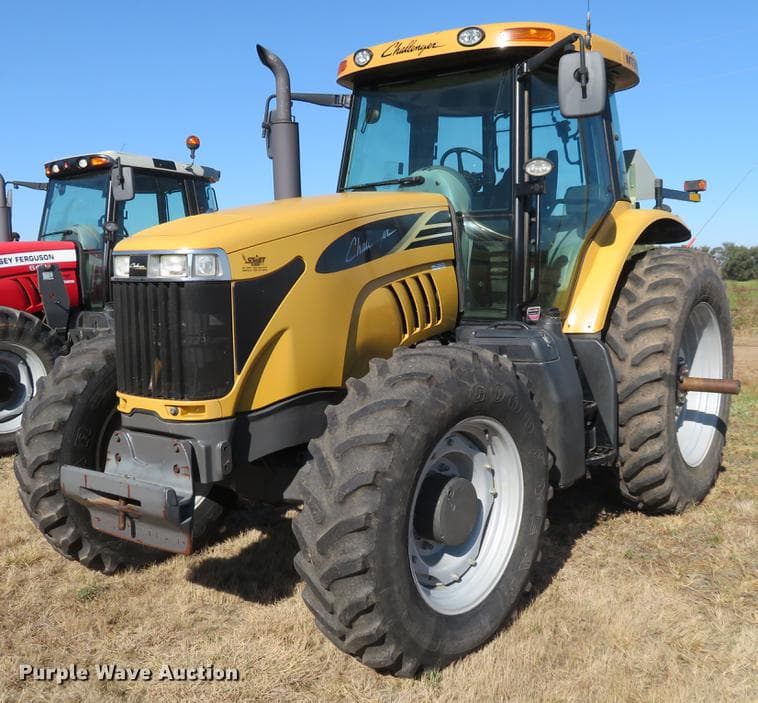

Challenger MT555B MFWD

Last Updated: June 2024

Overview

The Challenger MT555B MFWD is a multifunctional tractor equipped with an Auto Power transmission and a turbocharged and aftercooled C6.6 ACERT engine with six cylinders and a displacement volume of 402.8 cubic inches. The engine produces a power output of 130 hp at 2200 rpm. The operating weight of the tractor is 15000 lbs. The tractor has commendable ground clearance of 17.4 inches, reaching a height of 10.3 ft at the top of the ROPS/FOPS and extends to a length of 15.9 ft. The tractor comes with four remote control valves, a pump flow capacity of 47.6 gal/min and a relief valve setting of 2900 psi. The MT555B MFWD is designed with an impressive three-point hitch and a comfortable operator station, providing a balanced combination of power and comfort for the user.
Show more...

Key Specifications

Power Output: 130

Transmission: Auto Power

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 15000

Lift Capacity: 14283

Technical Specifications

Engine

Manufacturer
-
Model
C6.6 ACERT
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged and Aftercooled
Cylinders
6
Displacement (ci)
402.8
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
130

Transmission

Type
Auto Power
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
190.8
Width (in)
81.6
Height (in)
123.6 (converted from 10.3 ft)
Operating Weight (lb)
15000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
MFWD (Mechanical Front Wheel Drive)
Steering Type
-
Coolant Capacity (qts)
27.2 (converted from 6.8 gal)
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
14283
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
