Challenger MT515D

Last Updated: July 2024

Key Specifications

Power Output: 135.6

Transmission: AutoPower IV

Fuel Type: Fuel No. 2 Diesel

Image Gallery

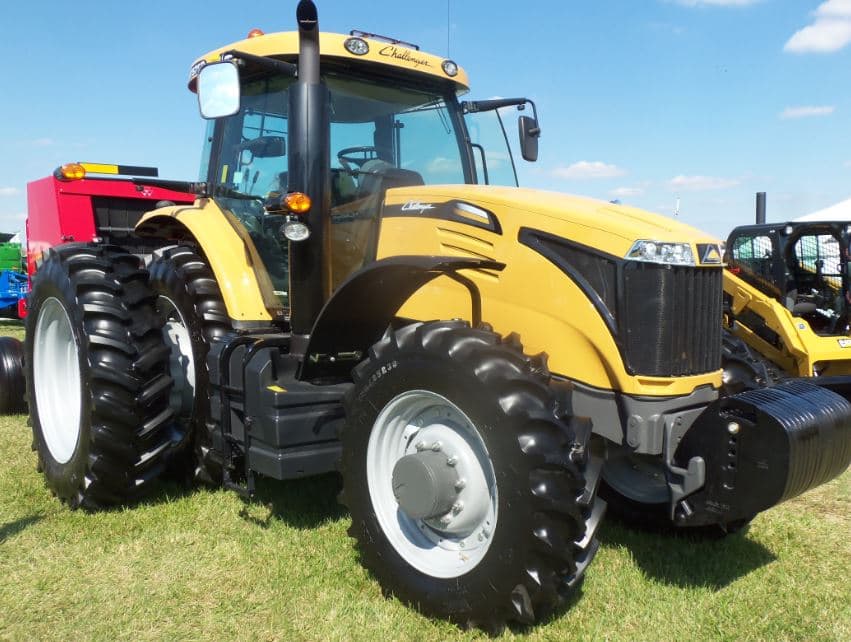

Challenger MT515D Tractor

Technical Specifications

Engine

Manufacturer: AGCO Power
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Fuel No. 2 Diesel
Induction Type: Turbocharged and Intercooled
Cylinders: 6
Displacement (ci): 402
Bore (in): 4.252
Stroke (in): 4.724
Rated RPM: -
Power Output (hp): 135.6

Transmission

Type: AutoPower IV
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Rear Tires: Two 520/85R38;**;14 psi (100 kPa), Front Tires: Two 420/85R28;**;15 psi (105 kPa)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 12 volt
Brake Type: -
Hydraulic System Type: Closed center load sensing (CCLS)

Test Results

Nebraska Tractor Test Laboratory - Test Date: April - May, 2012

Maximum Power and Fuel Consumption

Rated Engine Speed: 121.2 HP (90.4 kW) at 2101 rpm
Fuel Consumption at Rated Engine Speed: 7.32 Gal/hr (27.72 l/h) with a fuel efficiency of 0.421 lb/hp.hr (0.256 kg/kW.h)
DEF Consumption at Rated Engine Speed: 0.30 Gal/hr (1.15 l/h)
Maximum Power: 135.6 HP (101.1 kW) at 2002 rpm
Fuel Consumption at Maximum Power: 7.76 Gal/hr (29.38 l/h) with a fuel efficiency of 0.399 lb/hp.hr (0.243 kg/kW.h)

Drawbar Performance

Maximum Drawbar Power: 100.6 HP (75.0 kW) at 2099 rpm in 9th Gear
Fuel Consumption at Maximum Drawbar Power: 0.461 lb/hp.hr (0.281 kg/kW.h) with a fuel efficiency of 15.07 Hp.hr/gal (2.97 kW.h/l)
Drawbar Pull at Maximum Power: 6320 lbs (28.1 kN) with a speed of 5.97 mph (9.60 km/h) and 4.2% slip

Torque and Engine Performance

Maximum Torque: 438.0 lb.-ft. (594.0 Nm) at 1200 rpm
Torque Rise: 44.5%
Torque Rise at 1700 Engine RPM: 37%

Hydraulic Performance

Maximum Force Exerted: 9305 lbs (41.4 kN) at hitch points
Pump Delivery Rate at Minimum Pressure: 25.1 GPM (94.9 l/min)
Hydraulic Power at Maximum Pump Delivery: 29.6 HP (22.1 kW) at 2170 psi (149 bar)

NTTL.(2012).Nebraska Summary: S904 Challenger MT515D. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3027
