Challenger MT495D

Last Updated: July 2024

Overview

The Challenger MT495D is powered by a AGCO Power 49AWI engine, a turbocharged, air-to-air intercooled diesel engine with 4 cylinders providing a displacement of 299 ci and a bore/stroke of 4.251x5.276 inches. This engine is able to deliver a power output of 150 hp at a rated RPM of 2200. The tractor's steering is powered hydrostatically. The transmission of the MT495D is a continuous variable transmission (CVT) called Techstar CVT, providing infinite forward and reverse gears. Alternatively, an AutoPower VI transmission is available, offering a six-speed power shift with 24 forward and reverse gears. The MT495D model uses a closed center load sensing (CCLS) hydraulic system and features a rear type III/II hitch.

Key Specifications

Power Output: 150

Transmission: AutoPower VI / Techstar CVT

Operating Weight: 12500

Fuel Type: Diesel

Image Gallery

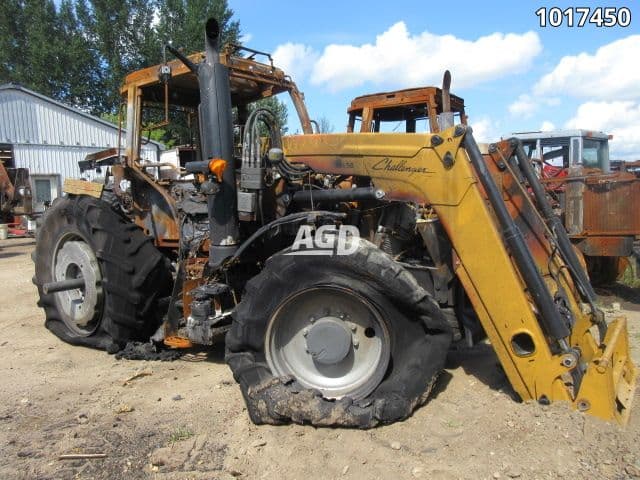

Challenger MT495D Tractor

Technical Specifications

Engine

Manufacturer: AGCO Power
Model: 49AWI
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: 16-Valve
Fuel Type: Diesel
Induction Type: Turbocharged, Air-to-Air Intercooled
Cylinders: 4
Displacement (ci): 299
Bore (in): 4.251
Stroke (in): 5.276
Rated RPM: 2200
Power Output (hp): 150

Transmission

Type: AutoPower VI / Techstar CVT
Forward Gears: 24
Reverse Gears: 24
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 12500

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: III/II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed Center Load Sensing (CCLS)

Test Results

Nebraska Tractor Test Laboratory - Test Date: July to September, 2013

Maximum Power and Fuel Consumption

Maximum Power (1 hour): 140.7 HP (104.9 kW) at 2000 rpm
Fuel Consumption at Maximum Power: 7.94 Gal/hr (30.06 l/h) with a fuel efficiency of 0.394 lb/hp.hr (0.240 kg/kW.h)
DEF Consumption: 0.34 Gal/hr (1.28 l/h)

Drawbar Performance

Maximum Power in Turtle 8 Gear: 109.3 HP (81.5 kW) with a drawbar pull of 8405 lbs (37.4 kN) and a speed of 4.88 mph (7.85 km/h)
Fuel Consumption at Turtle 8 Gear: 0.490 lb/hp.hr (0.298 kg/kW.h) with a fuel efficiency of 14.11 Hp.hr/gal (2.78 kW.h/l)

Torque and Engine Performance

Maximum Torque: 454 lb.-ft. (615 Nm) at 1400 rpm
Torque Rise: 49.0% with a power increase at 2000 rpm of 10%

Hydraulic Performance

Maximum Force Exerted: 11755 lbs (52.3 kN) at hitch points
Pump Delivery Rate: 31.3 GPM (118.5 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 39.4 HP (29.4 kW) at delivery pressure of 2320 psi (160 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.58 Hp.hr/gal (3.46 kW.h/l)
Fuel Consumption: 7.83 Gal/hr (29.64 l/h) at 2037 rpm

NTTL.(2013).Nebraska Summary: S921 Challenger MT495D. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2979
