Challenger MT485E

Last Updated: July 2024

Overview

The Challenger MT485E is powered by a turbocharged and intercooled 4-cylinder AGCO Power diesel engine with 144 horsepower at 1901 rpm and a maximum torque of 457 lb-ft at 1503 rpm. It features a liquid-cooling system with thermostat and variable speed fan, as well as a high-pressure common rail direct injection fuel system and Selective Catalytic Reduction (SCR) exhaust treatment. The transmission options include four-speed and six-speed power shift, as well as a continuously-variable transmission. Independent test results provide detailed performance data on drawbar operation, fuel consumption, hydraulic system output, and other operational metrics.

Key Specifications

Power Output: 144.0 @ 1901 rpm

Transmission: AutoPower IV - four-speed power shift, AutoPower VI - six-speed power shift, TechStar CVT - continuously-variable transmission

Operating Weight: 15432

Fuel Type: Diesel

Image Gallery

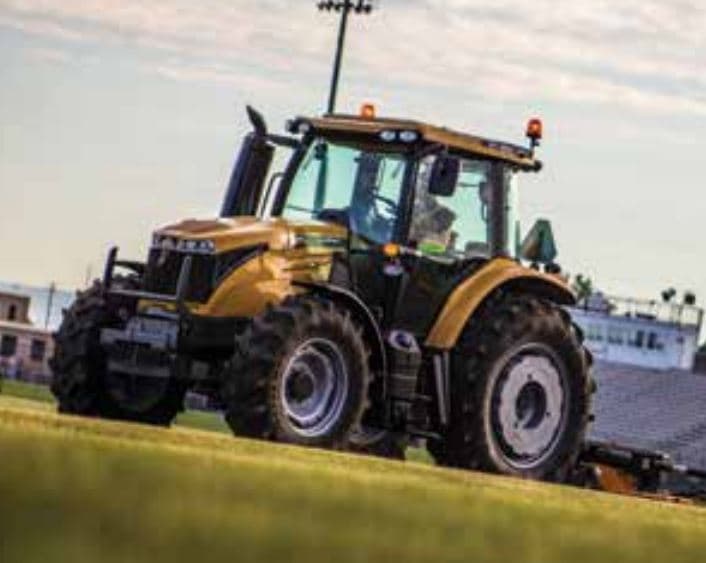

Challenger MT485E Tractor

Technical Specifications

Engine

Manufacturer: AGCO
Model: AGCO Power
Cooling Type: Liquid-cooled with thermostat and variable speed fan
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Four-cylinder vertical with turbocharger, air-to-air intercooler, and SCR (Selective Catalytic Reduction) exhaust treatment
Cylinders: 4
Displacement (ci): 299 (4910 cm³)
Bore (in): 4.252
Stroke (in): 5.276
Rated RPM: 2100
Power Output (hp): 144.0 @ 1901 rpm

Transmission

Type: AutoPower IV - four-speed power shift, AutoPower VI - six-speed power shift, TechStar CVT - continuously-variable transmission
Forward Gears: 16 (AutoPower IV/VI), Infinity (TechStar CVT)
Reverse Gears: 16 (AutoPower IV/VI), Infinity (TechStar CVT)
Total Gears: -

Dimensions

Length (in): -
Width (in): 72*
Height (in): -
Operating Weight (lb): 15432

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: III/II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: Hydraulic Wet Disc
Hydraulic System Type: Open Center

Test Results

Nebraska Tractor Test Laboratory - Test Date: October, 2016

Maximum Power and Fuel Consumption

Maximum Power: 144.0 HP (107.4 kW) at 1901 rpm
Fuel Consumption at Maximum Power: 8.36 Gal/hr (31.64 l/h) with a fuel efficiency of 0.439 lb/hp.hr (0.267 kg/kW.h)
DEF Consumption: 0.44 Gal/hr (1.67 l/h)

Drawbar Performance

Power at Rated Engine Speed (9th Gear): 111.7 HP (83.3 kW) with a drawbar pull of 7055 lbs (31.4 kN) and a speed of 5.37 mph (8.65 km/h)
Fuel Consumption at Rated Speed: 0.439 lb/hp.hr (0.267 kg/kW.h) with a fuel efficiency of 15.89 Hp.hr/gal (3.13 kW.h/l)

Torque and Engine Performance

Maximum Torque: 457 lb.-ft. (619 Nm) at 1503 rpm
Torque Rise: 117.8% with a power increase at 1901 rpm of 9%

Hydraulic Performance

Maximum Force Exerted: 10750 lbs (47.8 kN) at hitch points
Pump Delivery Rate: 29.6 GPM (112.1 l/min) at maximum pressure and rated engine speed
Hydraulic Power: 42.9 HP (32.0 kW) at delivery pressure of 2725 psi (188 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.7 Hp.hr/gal (3.29 kW.h/l)
Fuel Consumption: 8.37 Gal/hr (31.68 l/h) at 2029 rpm

NTTL.(2018).OECD tractor test 3031 for Challenger MT485E AP4 Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
