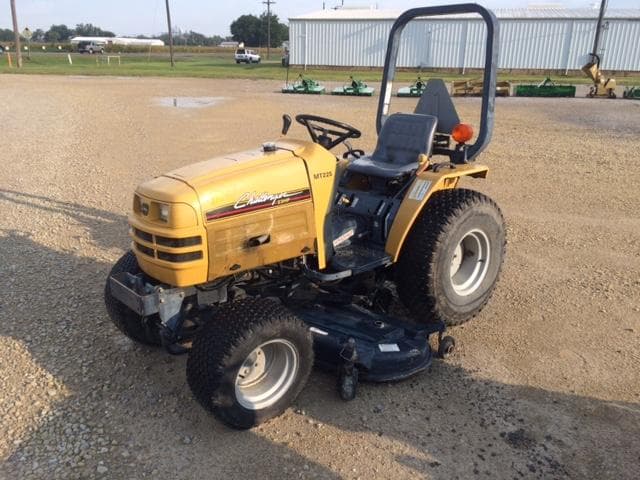

Challenger MT225

Last Updated: September 2024

Overview

The Challenger MT225 is a compact utility tractor designed for small farms and light-duty work. It features a 4-wheel drive system and power steering, making it easy to handle in tight spaces. The tractor is powered by a small 3-cylinder diesel engine made by Iseki, which runs at a very high 2800 rpm. While the engine's 23.3 horsepower is below average for its class, it's suitable for basic tasks around the farm.

This tractor uses a hydrostatic transmission, which allows for smooth speed changes without shifting gears. It has infinite forward and reverse speeds in two ranges, giving the operator good control. The MT225 is quite small, measuring 105.4 inches long, 41 inches wide, and 75.2 inches tall. It's very light for a tractor, weighing only 1672 pounds. The tractor has a Category I rear hitch that can lift up to 694 pounds, which is below average but useful for small implements. It also has an open center hydraulic system and an open operator station, which means no cab for the driver.
Show more...

Key Specifications

Category: Utility

Power Output: 23 hp (17.4 kW)

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1672 lb (758 kg)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Iseki
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Natural
Cylinders
3
Displacement
68 ci (1.1 L)
Bore
3.08 in (78.2 mm)
Stroke
3.07 in (78.0 mm)
Rated RPM
2800
Power Output
23 hp (17.4 kW)

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power steering
