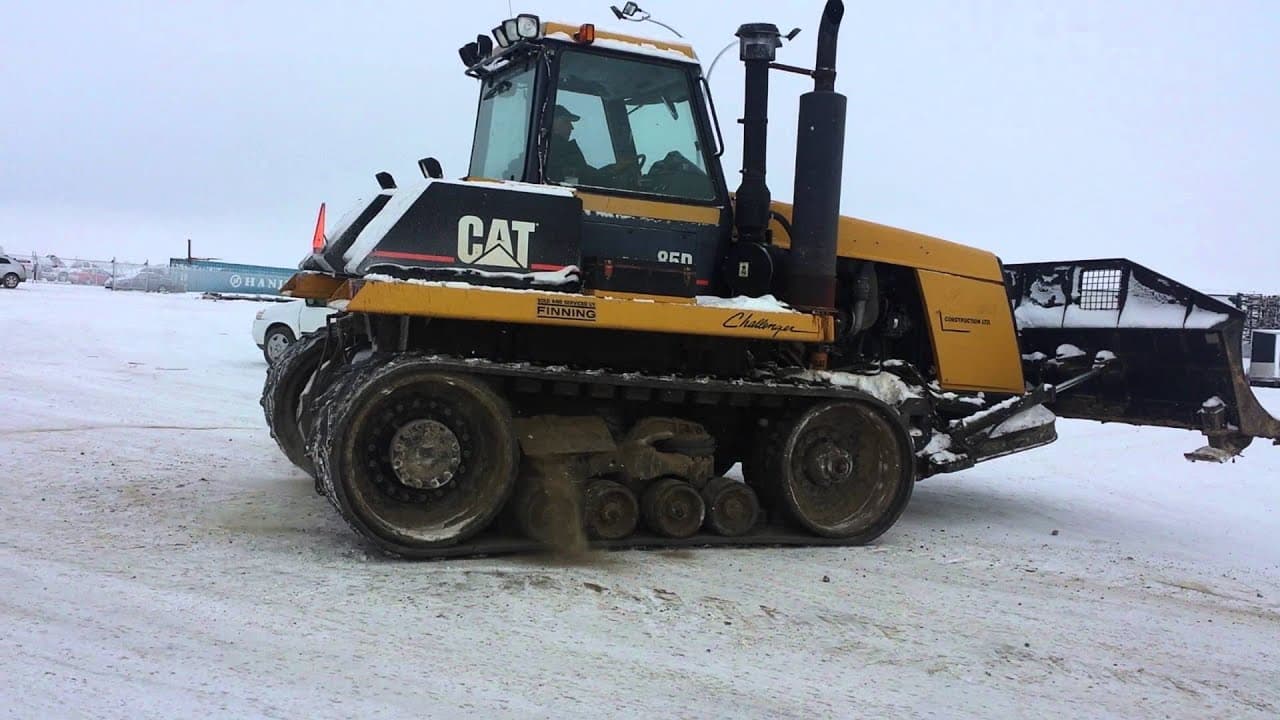

Challenger 85D

Last Updated: June 2024

Overview

The Challenger 85D is a high-powered tractor with a Caterpillar 3196 ATAAC engine that's turbocharged and intercooled. Its liquid-cooled engine boasts six cylinders and a displacement of 729 ci. Power output stands impressively at 370 hp while operating at a rated RPM of 2100. The tractor measures 232 inches in length and 120 inches in width, and its operating weight registers at 34234 lbs. It has a hydrostatic differential steering and a full power shift transmission type with ten forward gears and two reverse ones, making it highly manoeuvrable and effective for various farming tasks. The tractor's system features a closed-center pressure-compensated hydraulic type.
Show more...

Key Specifications

Power Output: 370

Transmission: Full Power Shift

Operating Weight: 34234

Fuel Type: Diesel

Image Gallery

Challenger 85D Tractor Challenger 85D Tractor Challenger 85D Tractor Challenger 85D Tractor Challenger 85D Tractor Challenger 85D Tractor Challenger 85D Tractor Challenger 85D Tractor Challenger 85D Tractor Challenger 85D Tractor

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
3196 ATAAC
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
6
Displacement (ci)
729
Bore (in)
5.118
Stroke (in)
5.906
Rated RPM
2100
Power Output (hp)
370

Transmission

Type
Full Power Shift
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
232
Width (in)
120
Height (in)
144 (Including exhaust)
Operating Weight (lb)
34234

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic Differential Steering
Coolant Capacity (qts)
80
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed-Center Pressure-Compensated
