Challenger 65E

Last Updated: June 2024

Overview

The Challenger 65E, part of Caterpillar's lineup, is a heavy-duty tractor engineered for performance and efficiency. It is powered by a turbocharged diesel engine from Caterpillar with 6 cylinders and a displacement of 629 cubic inches. The engine boasts a power output of 310 horsepower and runs at a rated RPM of 2100. The cooling capacity is 60 quarts, ensuring effective heat management even during heavy-duty tasks. For maneuverability, the 65E uses hydrostatic differential steering paired with a full power shift transmission. The transmission is well-equipped with 10 forward and 2 reverse gears. The overall operating weight of this tractor is 34,195 lbs.

Key Specifications

Power Output: 310

Transmission: full power shift

Operating Weight: 34195

Fuel Type: turbocharged diesel

Image Gallery

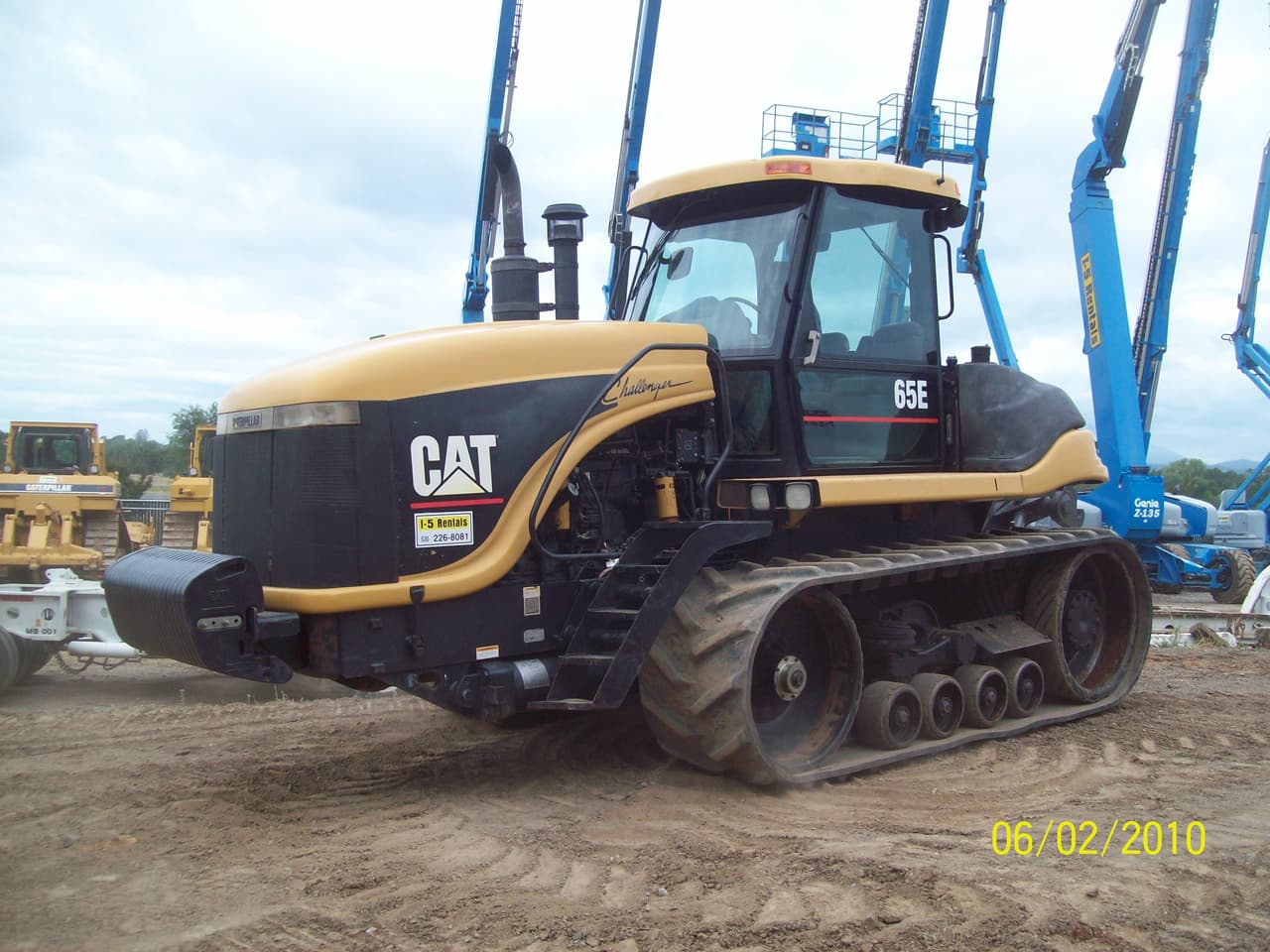

Challenger 65E Tractor

Technical Specifications

Engine

Manufacturer: Caterpillar
Model: -
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: turbocharged diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 629
Bore (in): 4.92
Stroke (in): 5.51
Rated RPM: 2100
Power Output (hp): 310

Transmission

Type: full power shift
Forward Gears: 10
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): -
Width (in): 25
Height (in): -
Operating Weight (lb): 34195

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: hydrostatic differential steering
Coolant Capacity (qts): 60
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Rear
Hitch Category: III, IV
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: Closed
