Challenger 65B

Last Updated: June 2024

Overview

The 65B model manufactured by Challenger, a part of Caterpillar, is a reliable tractor powered by a 6-cylinder, turbocharged, intercooled diesel engine with a power output of 285 hp. The engine is liquid-cooled and has a displacement of 638 cubic inches. Featuring a full power shift transmission system, it offers 10 forward gears and 2 reverse gears. The tractor uses hydrostatic differential steering for precise control. It has an operating weight of 34030 lbs and dimensions of 107 inches in length and 24.5 inches in width. Despite the missing data for several specs, the 65B is a versatile machine equipped with dual dry elements air cleaner and a closed hydraulic system.

Key Specifications

Power Output: 285

Transmission: Full Power Shift

Operating Weight: 34030

Fuel Type: Diesel

Image Gallery

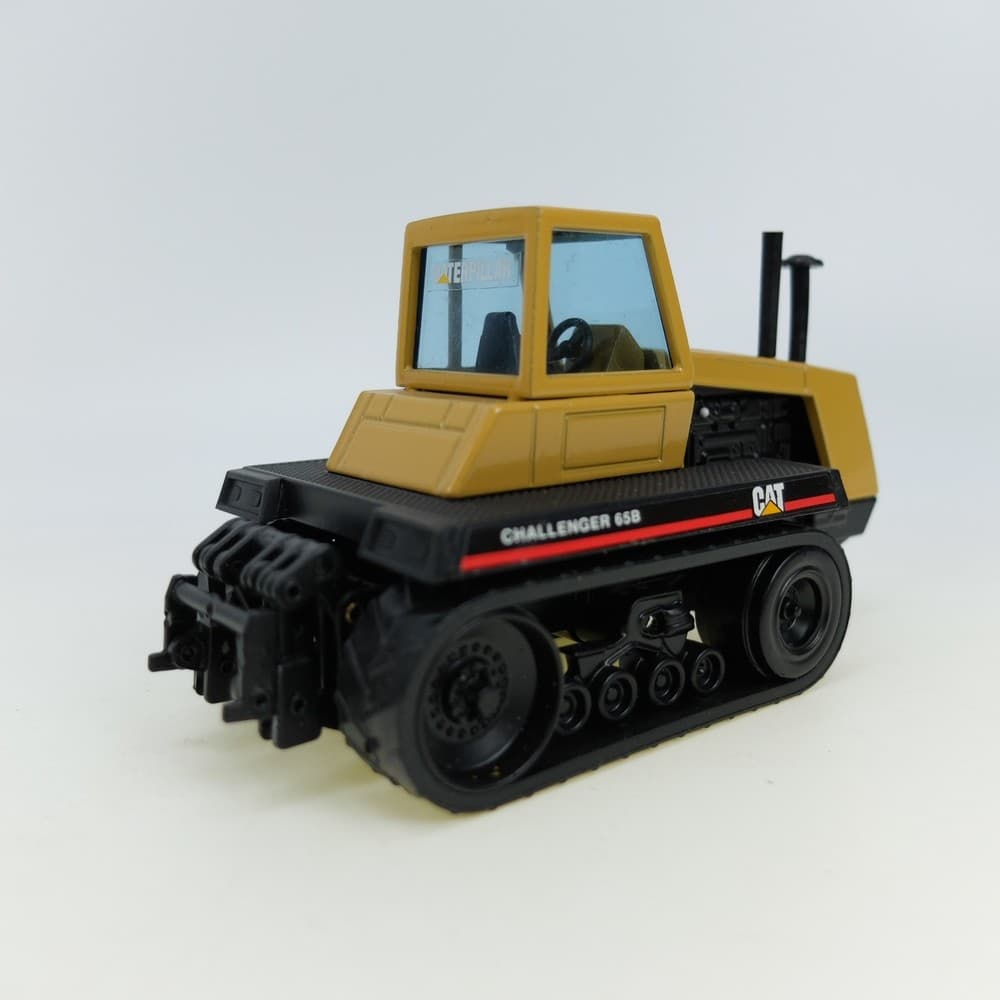

Challenger 65B Tractor

Technical Specifications

Engine

Manufacturer: Caterpillar
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged Intercooled
Cylinders: 6
Displacement (ci): 638
Bore (in): 4.75
Stroke (in): 6
Rated RPM: 2100
Power Output (hp): 285

Transmission

Type: Full Power Shift
Forward Gears: 10
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 107
Width (in): 24.5
Height (in): -
Operating Weight (lb): 34030

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Hydrostatic Differential Steering
Coolant Capacity (qts): 44
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: III/IV
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter, 12 volts
Brake Type: -
Hydraulic System Type: Closed
