CBT 2500

Last Updated: June 2024

Key Specifications

Transmission: 6-speed

Drive Type: 2WD

Operating Weight: 10,780

Fuel Type: Diesel

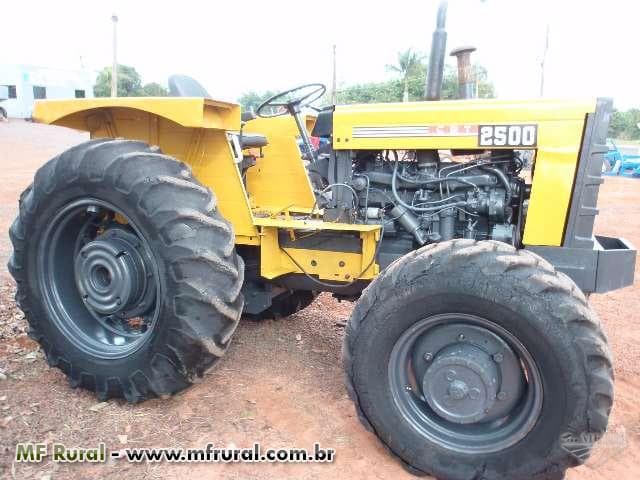

Image Gallery

CBT 2500 Tractor CBT 2500 Tractor CBT 2500 Tractor CBT 2500 Tractor CBT 2500 Tractor CBT 2500 Tractor

Technical Specifications

Engine

Manufacturer
Perkins
Model
6-358
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
6
Displacement (ci)
356.4
Bore (in)
4.1
Stroke (in)
4.5
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
6-speed
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
166.3
Width (in)
101.6
Height (in)
107.5
Operating Weight (lb)
10,780

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
23.25
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag tires
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
