CBT 2400

Last Updated: June 2024

Overview

The CBT 2400 is a proprietary tractor model equipped with a 4-cylinder, liquid-cooled Detroit Diesel engine, sporting a displacement of 212.4 cubic inches. This diesel-fueled powertrain operates at a rated RPM of 2200. The tractor features a manual transmission system with 6 forward gears and 2 reverse gears. The chassis is designed with a 4x2 2WD configuration. The tractor's dimensions are 157.5 inches in length, 85.8 inches in width, and 75.6 inches in height with an operating weight of 10820 lbs. The tire type specified for this tractor is agricultural.

Key Specifications

Transmission: Manual

Drive Type: 2WD

Operating Weight: 10,820

Fuel Type: Diesel

Image Gallery

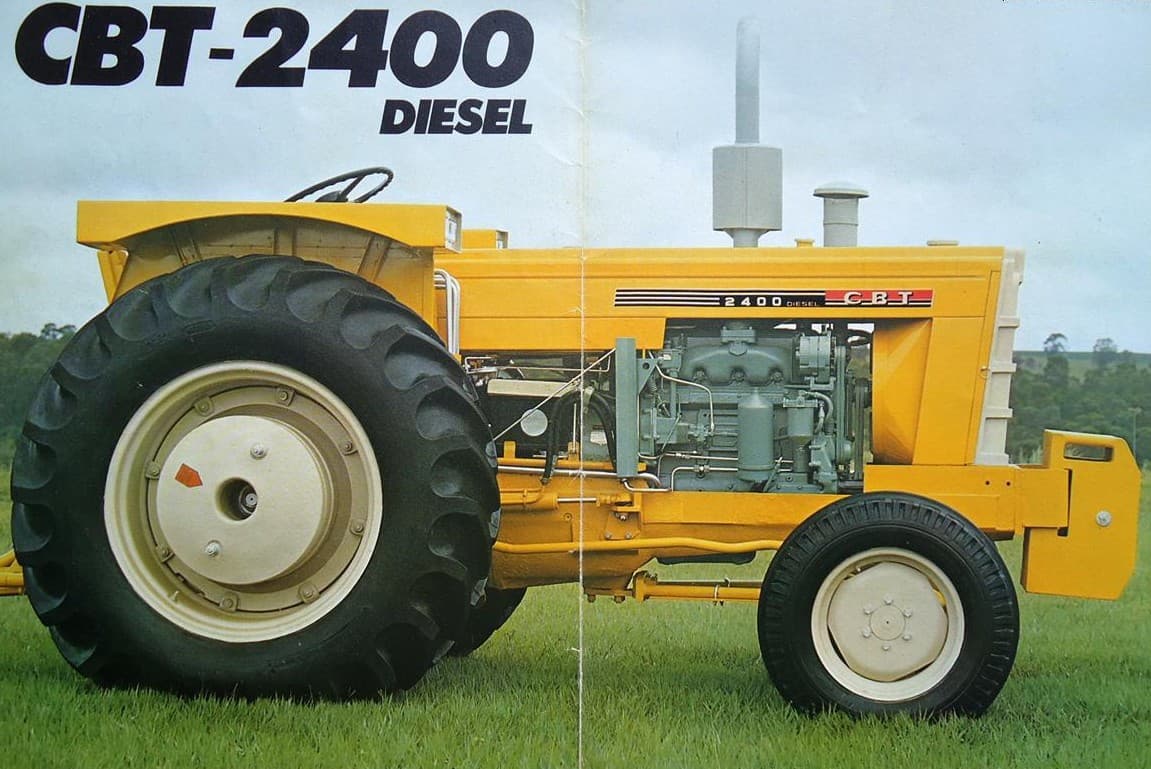

CBT 2400 Tractor

Technical Specifications

Engine

Manufacturer: Detroit Diesel
Model: 5043-5050
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 212.4
Bore (in): 3.858
Stroke (in): 4.488
Rated RPM: 2200
Power Output (hp): -

Transmission

Type: Manual
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 157.5
Width (in): 85.8
Height (in): 75.6
Operating Weight (lb): 10,820

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power (optional)
Coolant Capacity (qts): 25.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Optional
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
