Caterpillar Fifteen

Last Updated: June 2024

Overview

The Caterpillar Fifteen is a gasoline tractor with a choice of two engines: a 3.6L 4-cylinder and a 2.3L 4-cylinder. Displacement for the engines is 220 ci and 143 ci respectively. The bore x stroke measurements for the 3.6L engine are 3.75x5.00 inches, while for the 2.3L engine, they are 3.375x4.00 inches. The tractor is equipped with a gear transmission system featuring 3 forward and 1 reverse gear. This model has a substantial weight, ranging from 4500 to 5500 pounds. The total length of the tractor is 104 inches, width is 57.75 inches, and height is 58 inches.

Key Specifications

Transmission: Gear

Operating Weight: 5500

Fuel Type: Gasoline

Image Gallery

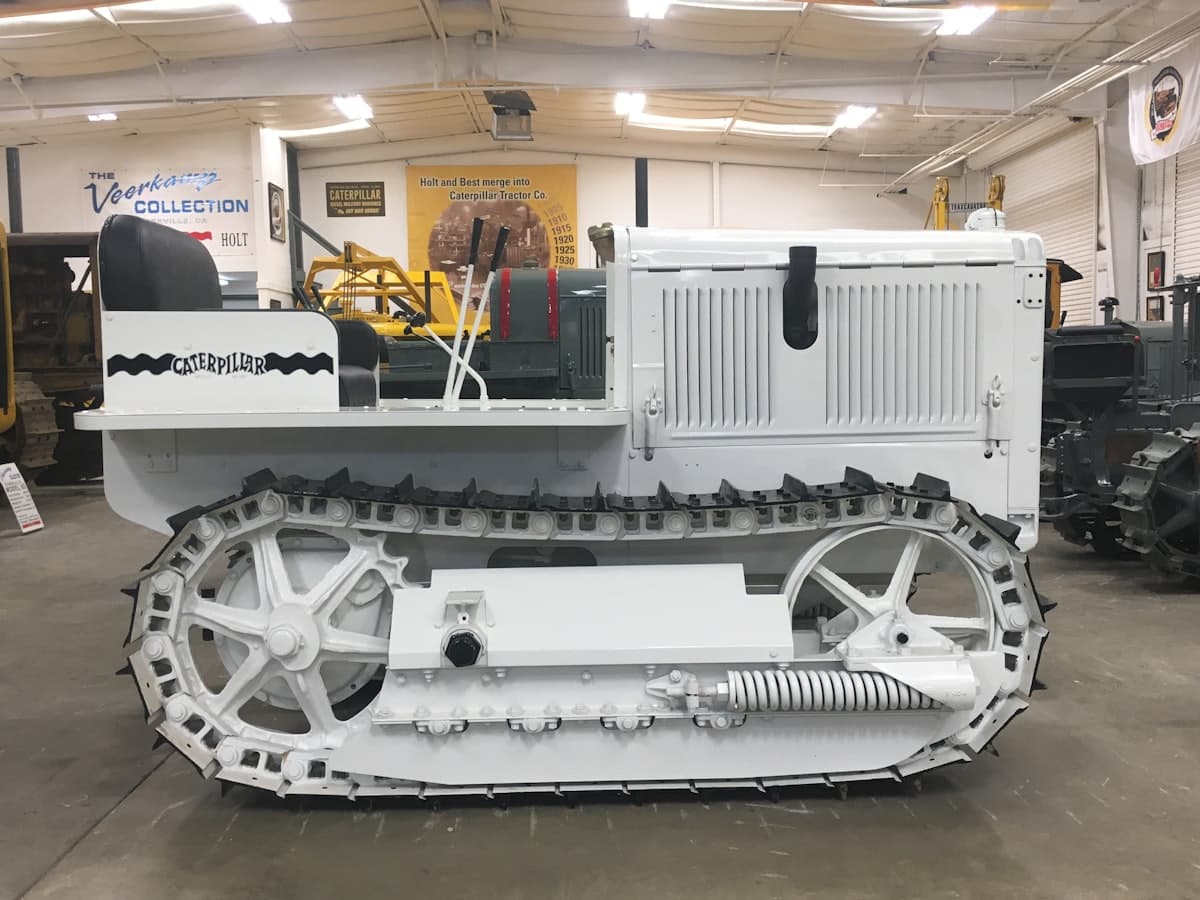

Caterpillar Fifteen Tractor

Technical Specifications

Engine

Manufacturer: Caterpillar
Model: 3.6L 4-cyl gasoline / 2.3L 4-cyl gasoline
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: -
Cylinders: 4
Displacement (ci): 220 / 143
Bore (in): 3.75 / 3.375
Stroke (in): 5.00 / 4.00
Rated RPM: 1250 / 1500
Power Output (hp): -

Transmission

Type: Gear
Forward Gears: 3
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 104
Width (in): 57.75
Height (in): 58
Operating Weight (lb): 5500

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
