Caterpillar D3C SA Special Application

Last Updated: June 2024

Overview

The Caterpillar D3C SA Special Application is an agricultural crawler tractor. It operates on a Caterpillar 3204 engine, a turbocharged diesel, 4-cylinder, liquid-cooled inline unit. The engine produces a power output of 110 horsepower, with a rated RPM of 2400. The engine has a displacement of 318 cubic inches with a bore and stroke of 4.50x5.00 inches. The tractor's transmission is geared, with 5 forward and 4 reverse gears. The tractor measures 146 inches in length, 76.5 inches in width, and 108 inches in height. The operating weight of the tractor is 14,750 pounds. The Caterpillar D3C SA Special Application runs on an electric starter system.
Show more...

Key Specifications

Category: Agricultural

Power Output: 110

Transmission: Gear

Operating Weight: 14750

Fuel Type: Diesel

Image Gallery

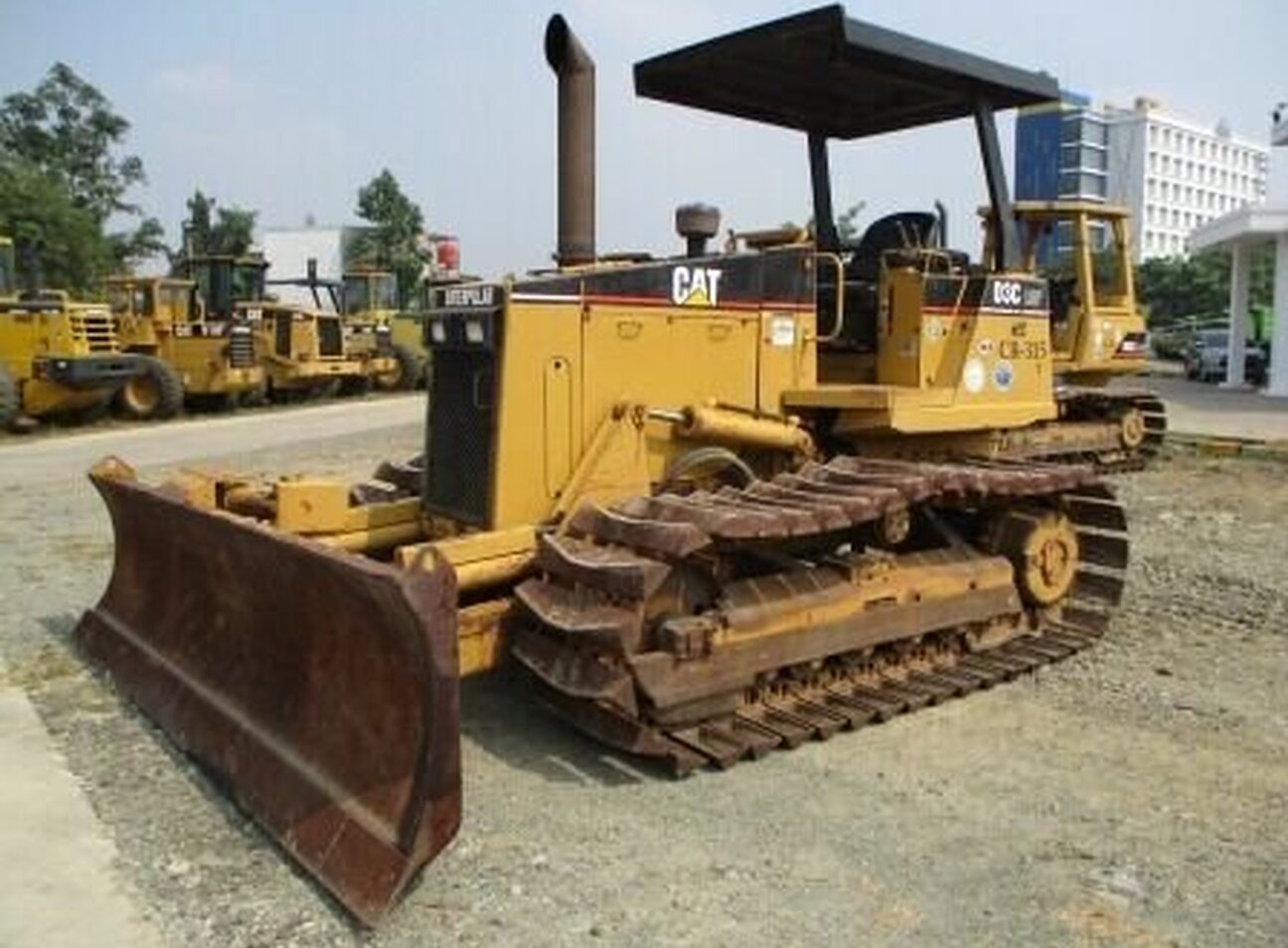

Caterpillar D3C SA Special Application Tractor Caterpillar D3C SA Special Application Tractor Caterpillar D3C SA Special Application Tractor Caterpillar D3C SA Special Application Tractor Caterpillar D3C SA Special Application Tractor Caterpillar D3C SA Special Application Tractor

Caterpillar D3C SA Special Application vs. Similar Tractors

Power Output
Above Average
Greater than 79% of similar tractors.
Operating Weight
Average
Greater than 50% of similar tractors.

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
3204
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
318
Bore (in)
4.5
Stroke (in)
5
Rated RPM
2400
Power Output (hp)
110

Transmission

Type
Gear
Forward Gears
5
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
146
Width (in)
76.5
Height (in)
108
Operating Weight (lb)
14750

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Crawler
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
