Caterpillar 426B

Last Updated: June 2024

Overview

The Caterpillar 426B is a 2WD or 4WD backhoe loader tractor manufactured by Caterpillar from 1992 to 1996. The Caterpillar 426B is equipped with a 4.0 L (243.0 cu·in) four-cylinder diesel engine and a power shuttle transmission with 4 forward and 4 reverse gears. The Caterpillar 426B backhoe loader tractor used the Caterpillar 3054 engine. It is a 4.0 L, 3,982 cm2, (243.0 cu·in) four-cylinder turbocharged diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 80.1 PS (58.9 kW; 79.0 HP) of net output power. The Cat 426B is equipped with hydrostatic power steering, wet disc brakes, ROPS canopy or cab (optional) and a 128.0 liters (33.8 US gal.; 28.2 Imp. gal) fuel tank.
Show more...

Key Specifications

Category: Specialized, Backhoe Loader

Power Output: 79

Transmission: Power shuttle

Drive Type: 2WD or 4WD

Operating Weight: 14,771

Fuel Type: Diesel

Image Gallery

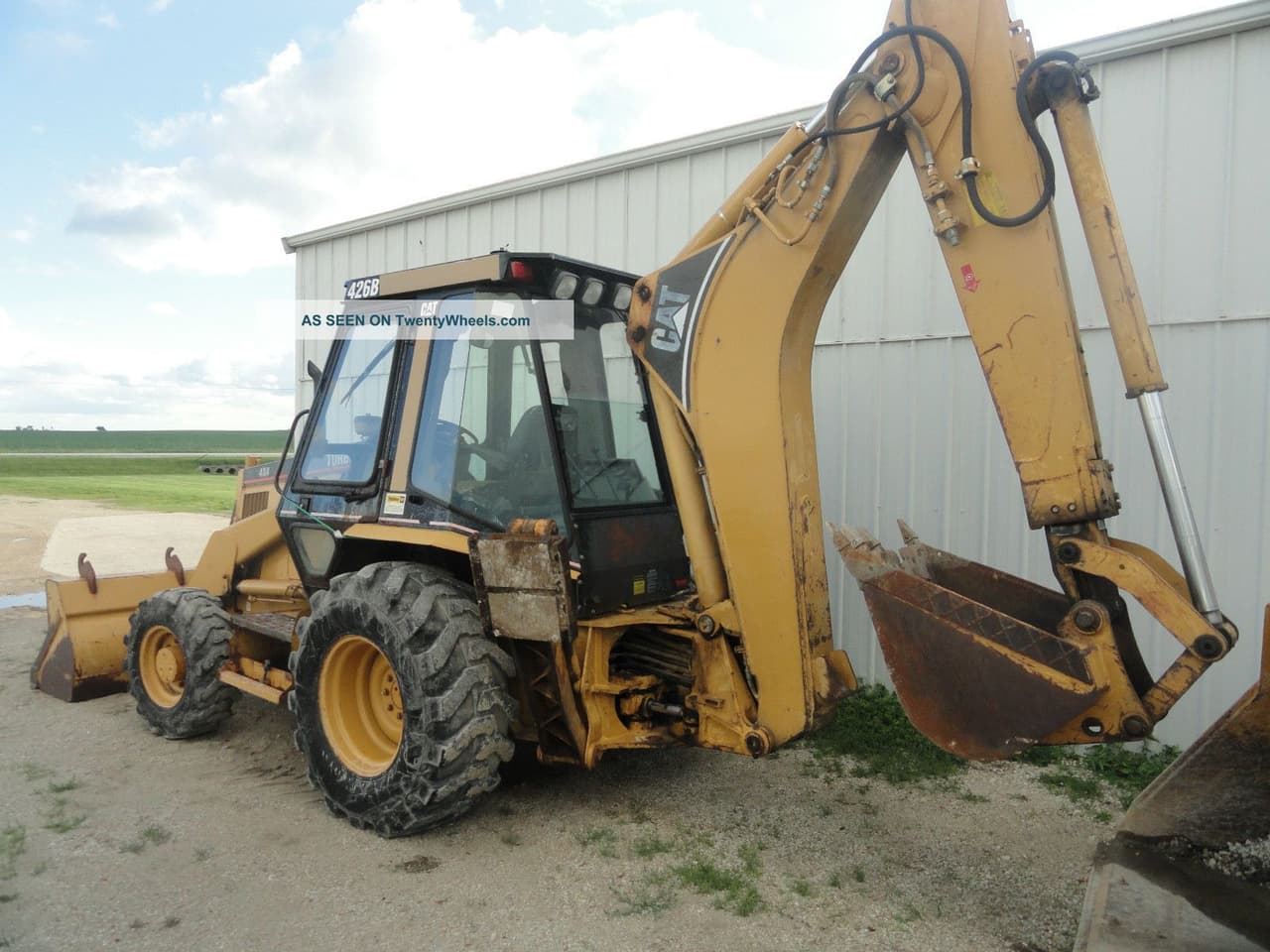

Caterpillar 426B Tractor Caterpillar 426B Tractor Caterpillar 426B Tractor Caterpillar 426B Tractor Caterpillar 426B Tractor Caterpillar 426B Tractor Caterpillar 426B Tractor Caterpillar 426B Tractor

Caterpillar 426B vs. Similar Tractors

Power Output
Above Average
Greater than 72% of similar tractors.
Operating Weight
Below Average
Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
3054
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
243
Bore (in)
3.94
Stroke (in)
5
Rated RPM
-
Power Output (hp)
79

Transmission

Type
Power shuttle
Forward Gears
4
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
274
Width (in)
89
Height (in)
106.9
Operating Weight (lb)
14,771

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD or 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
22.2
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
1996
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS canopy or cab (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Closed center
