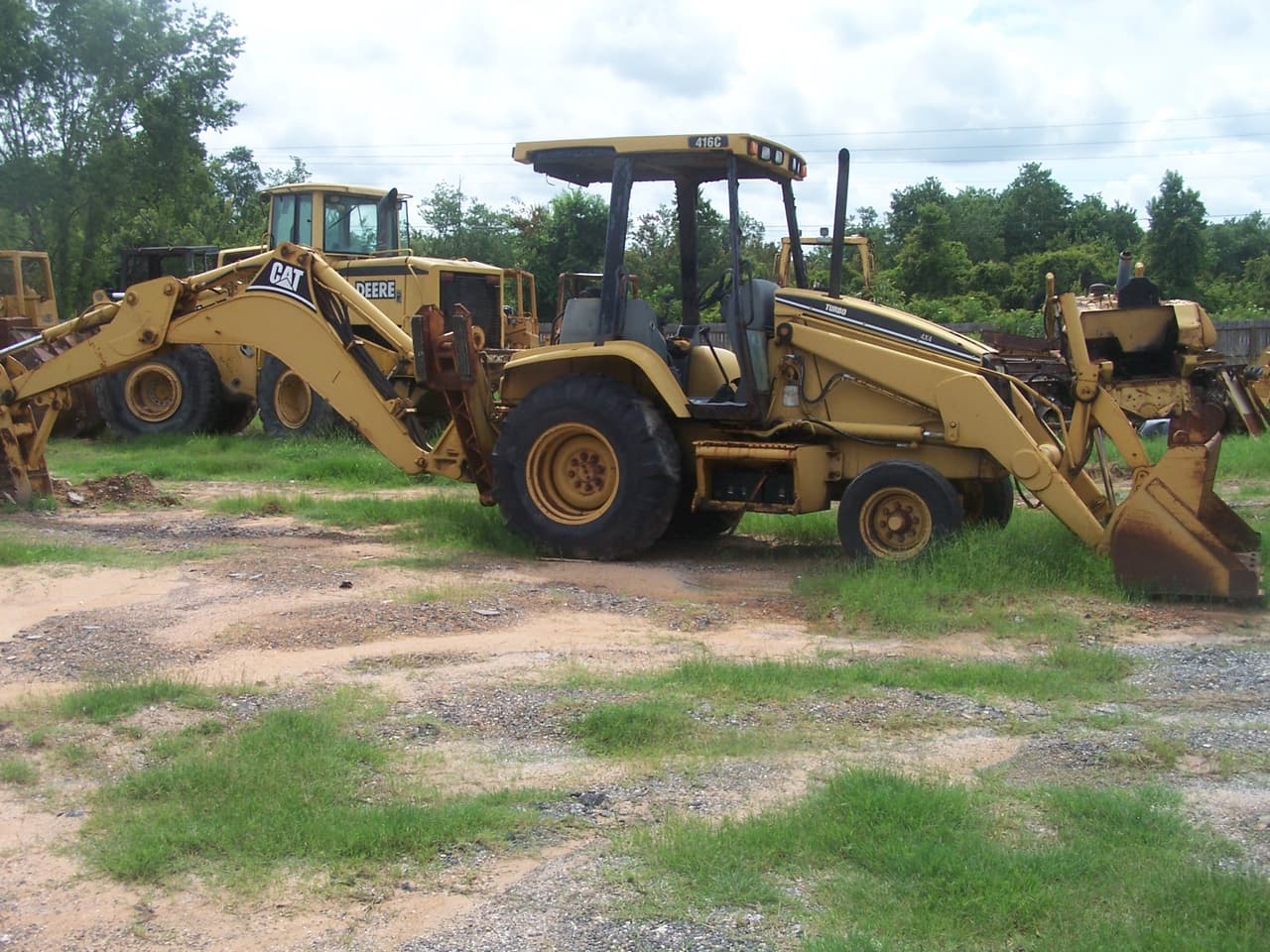

Caterpillar 416C

Last Updated: June 2024

Overview

The Caterpillar 416C is a 2WD or 4WD backhoe loader tractor that was manufactured by Caterpillar from 1996 to 2001. The tractor is powered by a Caterpillar 3054 engine, a four-stroke, liquid-cooled, inline, four-cylinder diesel engine with a displacement of 4.4 L (268.0 cu in). The engine has a bore and stroke of 105.0 mm X 127.0 mm (4.13 in X 5 in), producing 75.0 HP. The tractor features hydrostatic power steering, multiple disc brakes, four-post ROPS, and a fuel tank capacity of 128.0 liters (33.8 US gal.; 28.2 Imp. gal).
Show more...

Key Specifications

Category: Specialized, Backhoe Loader

Power Output: 75

Drive Type: 2WD or 4WD

Operating Weight: 13,966

Fuel Type: Diesel

Image Gallery

Caterpillar 416C Tractor Caterpillar 416C Tractor Caterpillar 416C Tractor Caterpillar 416C Tractor Caterpillar 416C Tractor Caterpillar 416C Tractor Caterpillar 416C Tractor Caterpillar 416C Tractor Caterpillar 416C Tractor Caterpillar 416C Tractor

Caterpillar 416C vs. Similar Tractors

Power Output
Average
Greater than 64% of similar tractors.
Operating Weight
Below Average
Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
3054
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
268
Bore (in)
4.13
Stroke (in)
5
Rated RPM
-
Power Output (hp)
75

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
274.4
Width (in)
92.5
Height (in)
140.9
Operating Weight (lb)
13,966

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD or 4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
11Lx16 for 2WD, 12.5/80-18 for 4WD
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2001
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open (Four-post ROPS)
Starter Type
Electric
Brake Type
Multiple Discs
Hydraulic System Type
-
