CaseIH STX450

Last Updated: June 2024

Overview

The CaseIH STX450 is a robust tractor with a powerful 450 hp engine manufactured by Cummins. The QSX 15 engine model features a turbocharged aftercooled diesel engine with 6 cylinders and an engine power of 335.6 kW. The displacement is 912 ci with a bore of 5.39 inches and a stroke of 6.65 inches. The power-shift transmission system has 16 forward gears and 2 reverse gears with an electro-hydraulic wet disc clutch. With a total length of 317.5 inches and a height of 152.1 inches, this tractor is designed for intensive tasks and larger cultivation areas.

Key Specifications

Power Output: 450

Transmission: Full Power Shift

Operating Weight: 39325

Fuel Type: Diesel

Image Gallery

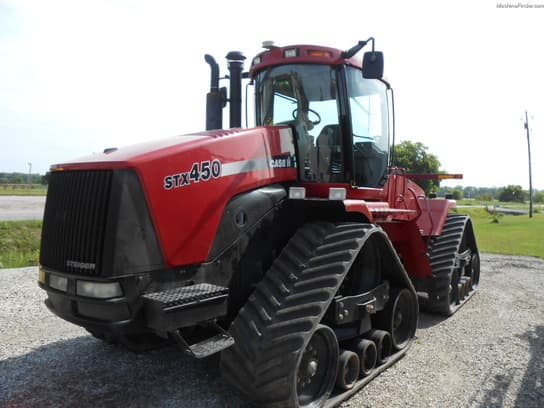

CaseIH STX450 Tractor

Technical Specifications

Engine

Manufacturer: Cummins
Model: QSX 15
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged aftercooled
Cylinders: 6
Displacement (ci): 912
Bore (in): 5.39
Stroke (in): 6.65
Rated RPM: 2000
Power Output (hp): 450

Transmission

Type: Full Power Shift
Forward Gears: 16
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 317.5
Width (in): 44 (frame)
Height (in): 152.1
Operating Weight (lb): 39325

Power Take-Off (PTO)

PTO Type: 1000 (1.75)
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: IVN/III
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (12 volts)
Brake Type: -
Hydraulic System Type: Pressure Flow Compensated (PFC)
