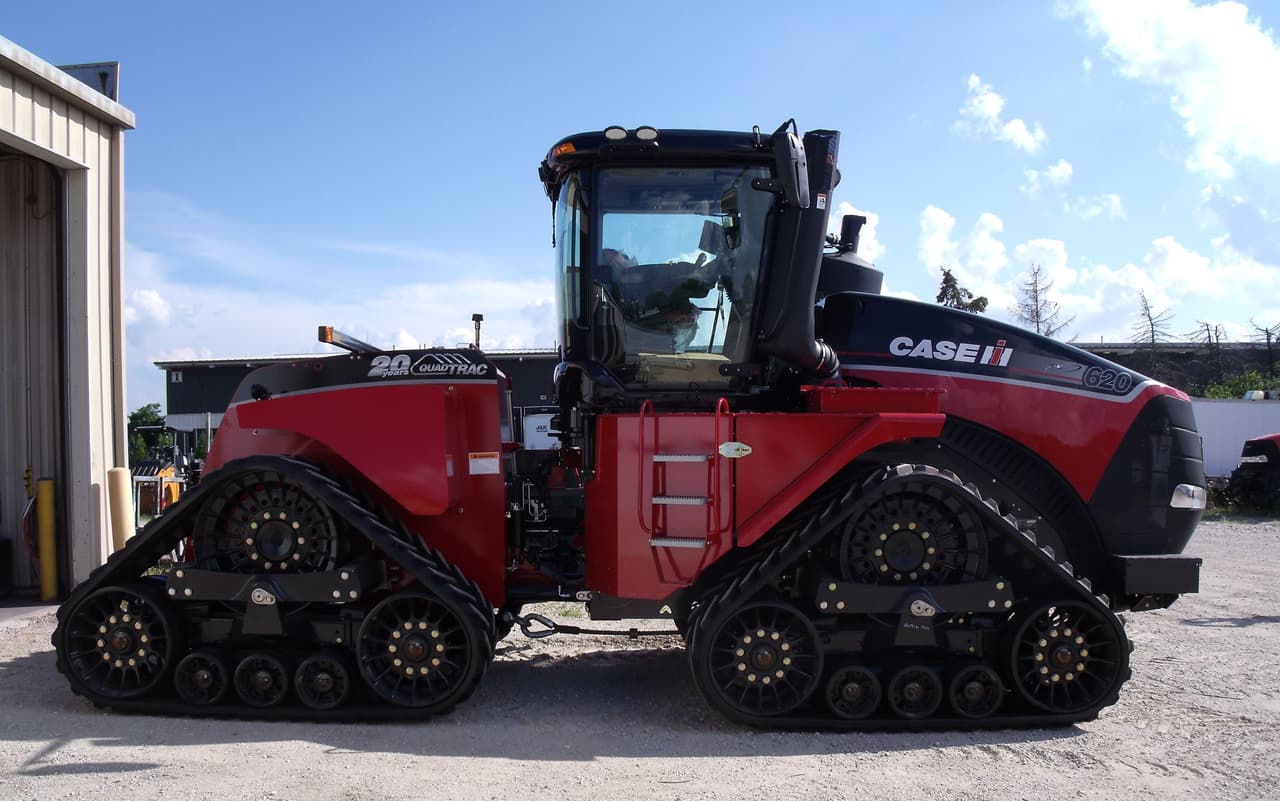

CaseIH STX380QT Quadtrac

Last Updated: June 2024

Key Specifications

Power Output: 380

Transmission: Full power shift

Operating Weight: 54000

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
786
Bore (in)
5.314
Stroke (in)
5.906
Rated RPM
2000
Power Output (hp)
380

Transmission

Type
Full power shift
Forward Gears
16
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
30, 36
Height (in)
-
Operating Weight (lb)
54000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Pressure flow compensated
