CaseIH STX375QT Quadtrac

Last Updated: June 2024

Overview

The CaseIH STX375QT Quadtrac Tractor is a robust machine designed for intensive work in various agro-industrial applications. Its engine, manufactured by Cummins, is a 6-cylinder power unit with a displacement of 915 cubic inches. It is a liquid-cooled engine, which is turbocharged and after-cooled for peak performance and efficiency. The engine delivers a power output of 375hp at a rated RPM of 2000. The tractor employs full power shift transmission with 16 forward and 2 reverse gears, controlled by an electro-hydraulic wet disc clutch. Its hydrostatic power steering ensures smoother and effortless maneuverability. The hydraulic system is of a pressure flow compensated type, designed for reliable and efficient performance.

Key Specifications

Power Output: 375

Transmission: Full Power Shift

Drive Type: Quad Track

Operating Weight: 53264

Fuel Type: Diesel

Image Gallery

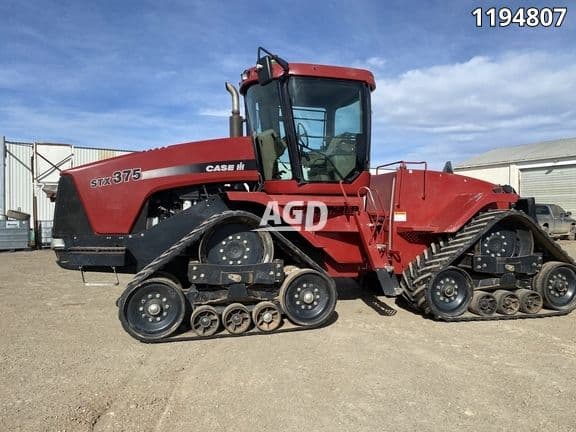

CaseIH STX375QT Quadtrac Tractor

Technical Specifications

Engine

Manufacturer: Cummins
Model: QSX15
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged aftercooled
Cylinders: 6
Displacement (ci): 915
Bore (in): 5.39
Stroke (in): 6.65
Rated RPM: 2000
Power Output (hp): 375

Transmission

Type: Full Power Shift
Forward Gears: 16
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): -
Width (in): 44 (frame width)
Height (in): -
Operating Weight (lb): 53264

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4X4 (judging by quadtrac in Model)
Drive Type: Quad Track
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Track (judging by quadtrac in Model)
Manufacture - End Year: -
Hitch Type: IVN/III
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Pressure Flow Compensated
