CaseIH STX375

Last Updated: June 2024

Overview

The CaseIH STX375 is a powerful, durable tractor equipped with a Cummins QSX 15 engine. This turbocharged aftercooled diesel engine is liquid-cooled, and the inline cylinder arrangement delivers a strong 375 horsepower. It also boasts a full power shift and fully synchronized transmission system and Hydrostatic power steering. The tractor is quite spacious, measuring 317.5 inches in length, 44 inches in width, and 152.1 inches in height. Its substantial operating weight of 17,059 kilograms testifies to its robust structure and capability. The tractor also features a pressure flow compensated (PFC) hydraulic system type, and the rear hitch system falls under Hitch Category 3.

Key Specifications

Power Output: 375

Transmission: Full power shift and Fully synchronized

Operating Weight: 37610

Fuel Type: Diesel

Image Gallery

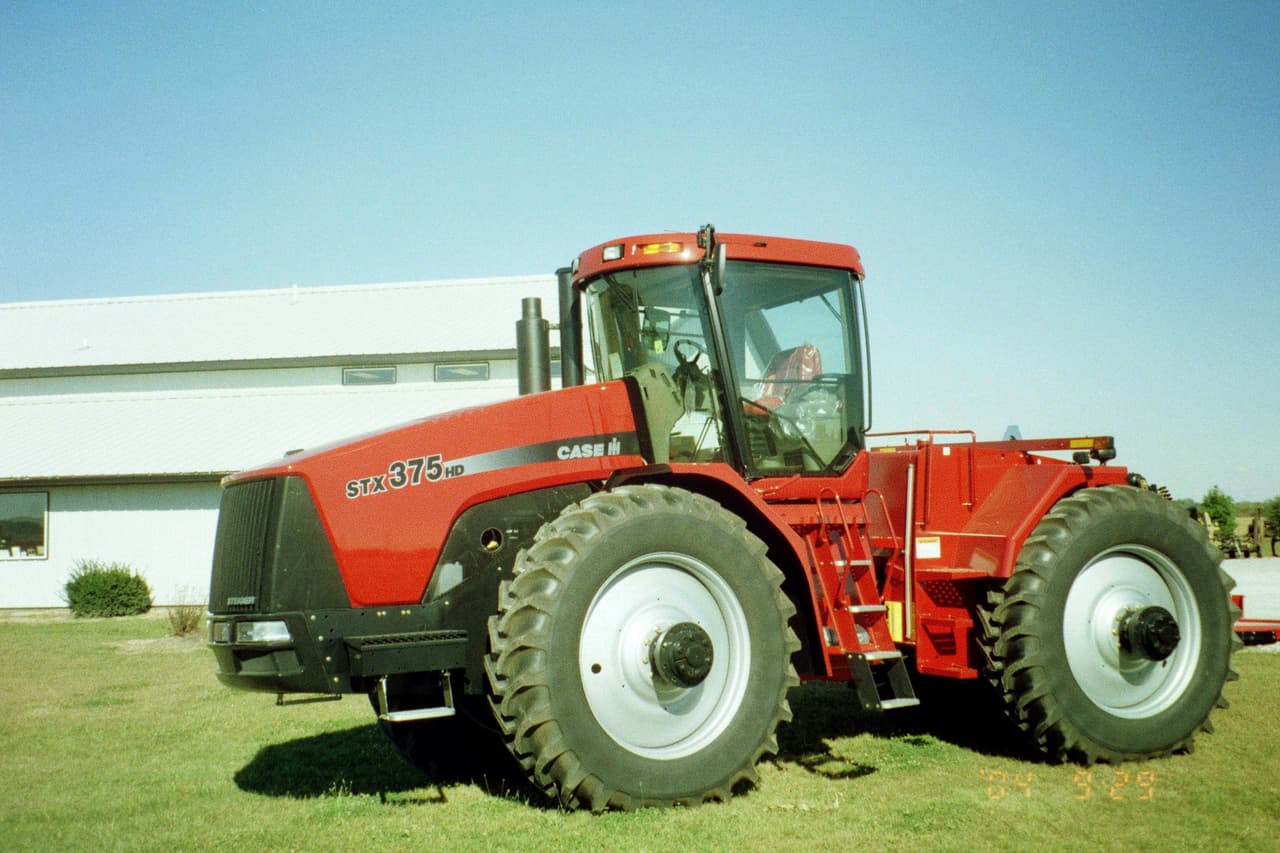

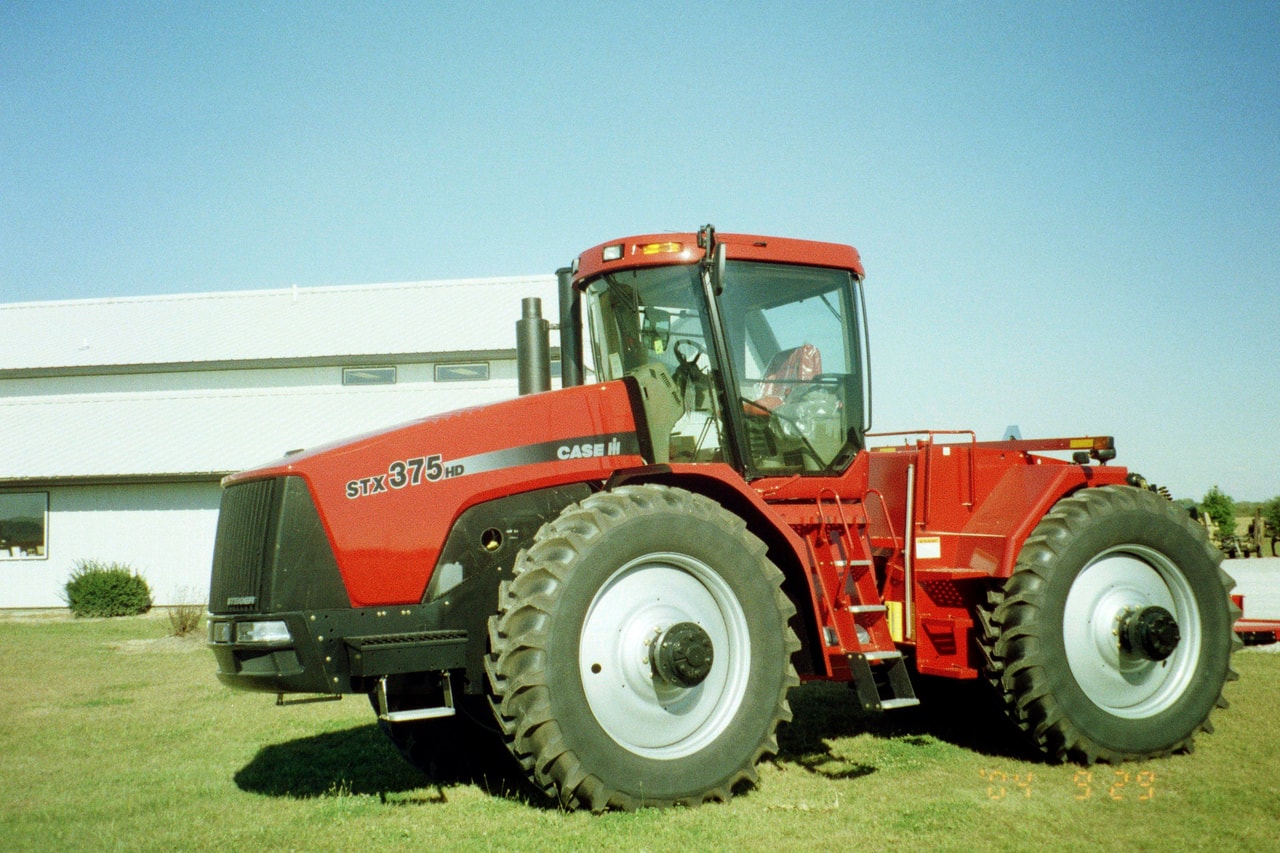

CaseIH STX375 Tractor

Technical Specifications

Engine

Manufacturer: Cummins
Model: QSX 15
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged aftercooled
Cylinders: 6
Displacement (ci): 912
Bore (in): 5.39
Stroke (in): 6.65
Rated RPM: 2000
Power Output (hp): 375

Transmission

Type: Full power shift and Fully synchronized
Forward Gears: 16
Reverse Gears: 2 and 6
Total Gears: -

Dimensions

Length (in): 317.5
Width (in): 44
Height (in): 152.1
Operating Weight (lb): 37610

Power Take-Off (PTO)

PTO Type: 1000 (1.75)
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: IVN/III
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: Pressure flow compensated (PFC)
