CaseIH Steiger 550 Quadtrac

Last Updated: June 2024

Overview

The CaseIH Steiger 550 Quadtrac is an articulated crawler tractor equipped with an impressive 550 horsepower Iveco engine. Designed with power, durability, and productivity in mind, this model provides an outstanding overall work performance. The engine is liquid-cooled, with a two-stage turbocharged, intercooled, and aftercooled diesel system. The tractor's transmission features 16 forward and 2 reverse gears, managed through an electro-hydraulic wet disc clutch. Safety and reliability are ensured with the hydraulic system, which is of the closed center pressure flow compensated type. This tractor's weight reaches up to 53,804 lbs.
Show more...

Key Specifications

Category: Articulated, Crawler

Power Output: 550

Transmission: 16-speed full power shift

Operating Weight: 53,804

Fuel Type: Diesel

Image Gallery

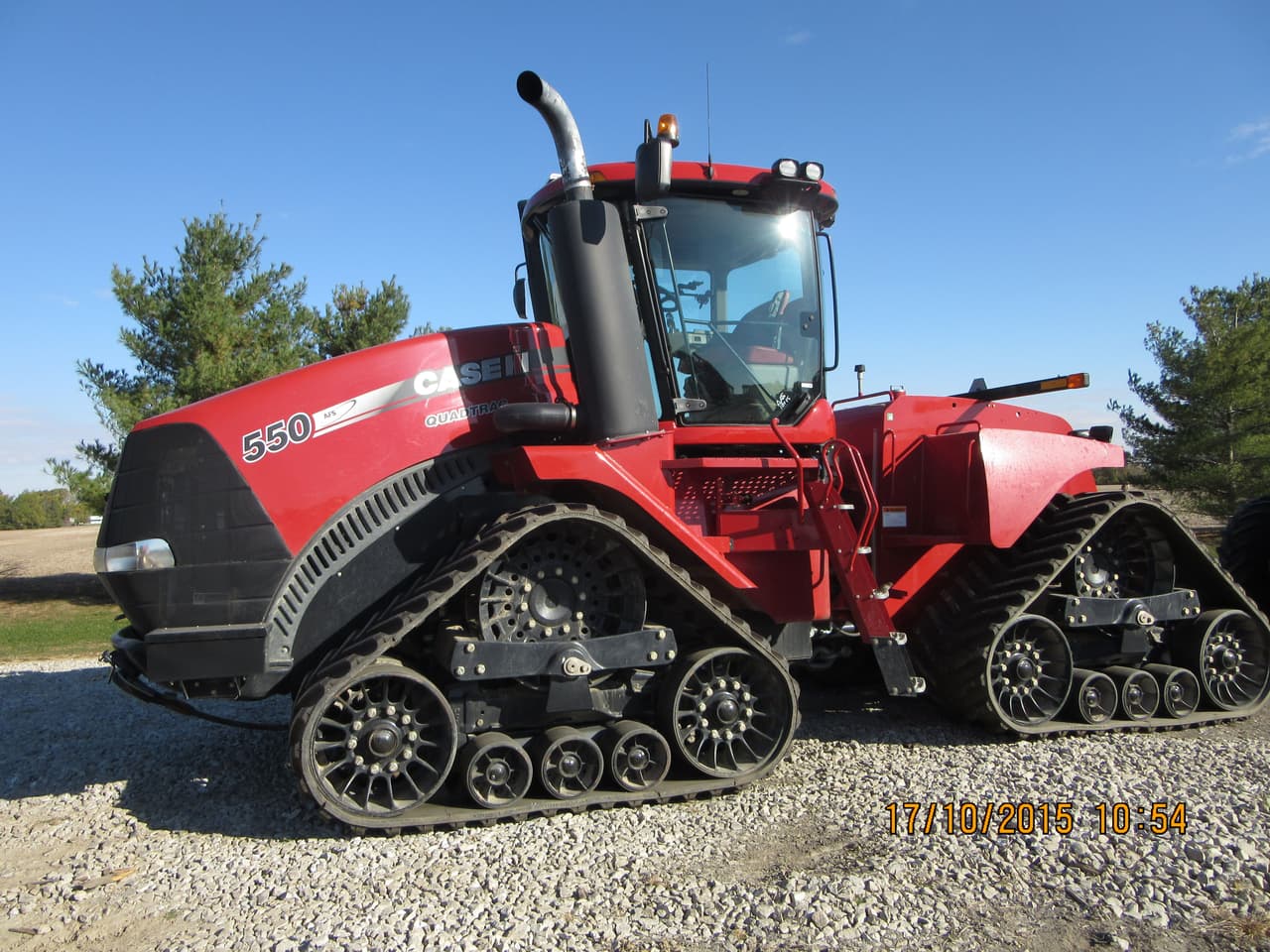

CaseIH Steiger 550 Quadtrac Tractor CaseIH Steiger 550 Quadtrac Tractor CaseIH Steiger 550 Quadtrac Tractor CaseIH Steiger 550 Quadtrac Tractor CaseIH Steiger 550 Quadtrac Tractor CaseIH Steiger 550 Quadtrac Tractor CaseIH Steiger 550 Quadtrac Tractor CaseIH Steiger 550 Quadtrac Tractor CaseIH Steiger 550 Quadtrac Tractor CaseIH Steiger 550 Quadtrac Tractor

CaseIH Steiger 550 Quadtrac vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Operating Weight
Below Average
Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
two-stage turbocharged, intercooled and aftercooled
Cylinders
6
Displacement (ci)
787
Bore (in)
5.315
Stroke (in)
5.906
Rated RPM
2100
Power Output (hp)
550

Transmission

Type
16-speed full power shift
Forward Gears
16
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
53,804

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
articulated crawler
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
4N
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
electro-hydraulic wet discs
Hydraulic System Type
closed center pressure flow compensated (PFC)
