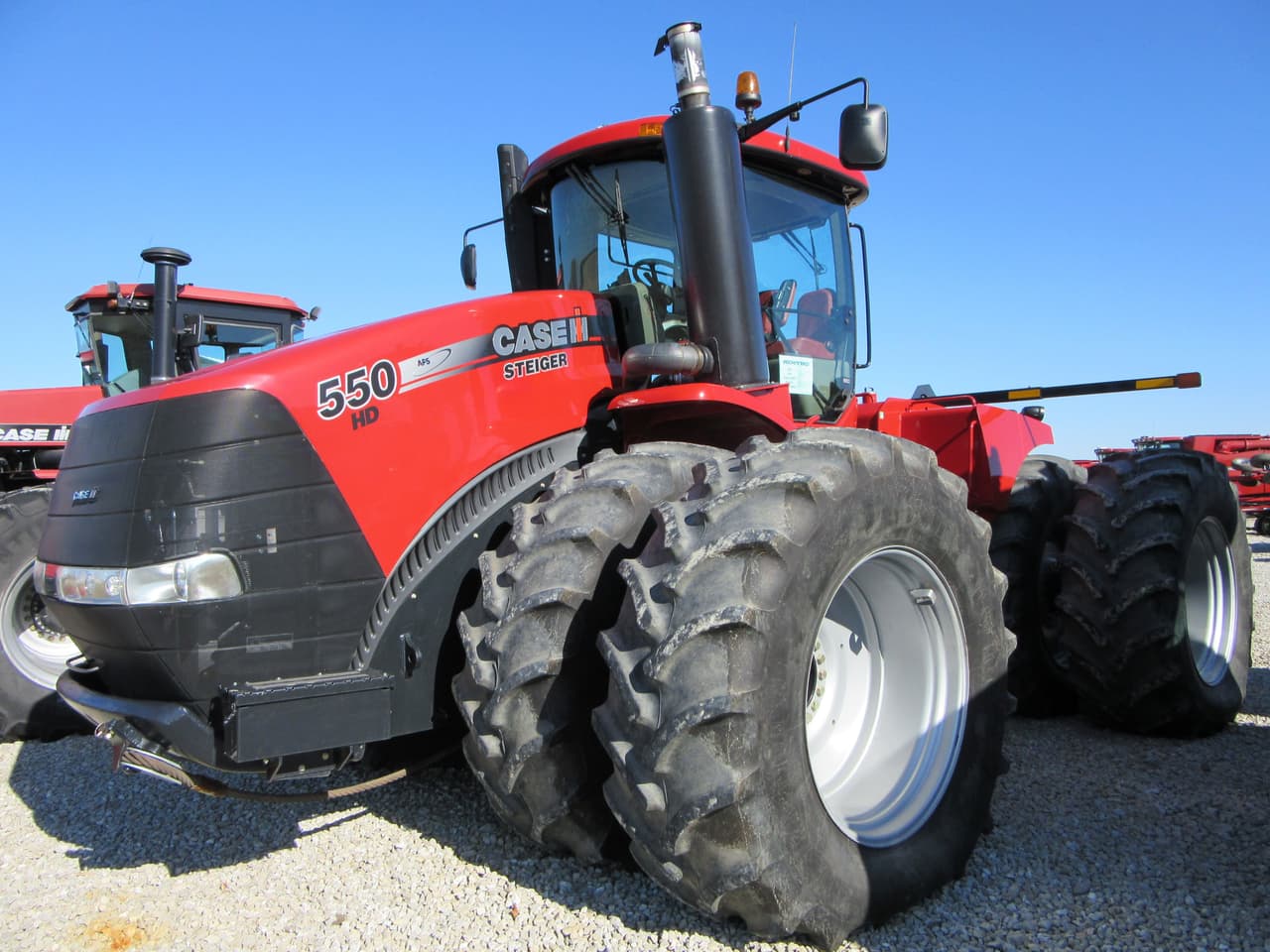

CaseIH Steiger 550

Last Updated: June 2024

Overview

The CaseIH Steiger 550 is a high-performance 4WD tractor, designed for a diverse range of heavy-duty tasks. With a powerful 550 hp engine manufactured by Iveco, and featuring a two-stage turbocharged, intercooled and aftercooled system, the tractor delivers abundant power and efficient performance. The engine employs a selective catalytic reduction (SCR) system to control emissions, matching Interim Tier 4 standards. The tractor operates on a full power shift transmission system, offering 16 forward and 2 reverse gears, thereby providing a broad operational range catering to multiple tasks. An effective hydraulic system, based upon the pressure flow compensating (PFC) design, facilitates powerful and reliable operation of attachments. The tractor features a significant operating weight of 44,046 lbs, indicating its hefty build and rugged features. This tractor proves itself as a reliable workhorse for a variety of robust agricultural tasks.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 550

Transmission: full power shift

Drive Type: 4WD

Operating Weight: 44,046

Fuel Type: Diesel

CaseIH Steiger 550 vs. Similar Tractors

Power Output
Excellent
Greater than 98% of similar tractors.
Operating Weight
Poor
Greater than 7% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
two-stage turbocharged intercooled and aftercooled
Cylinders
6
Displacement (ci)
787
Bore (in)
5.315
Stroke (in)
5.906
Rated RPM
2100
Power Output (hp)
550

Transmission

Type
full power shift
Forward Gears
16
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
44,046

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
4N
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
electro-hydraulic wet discs
Hydraulic System Type
pressure flow compensating (PFC)
