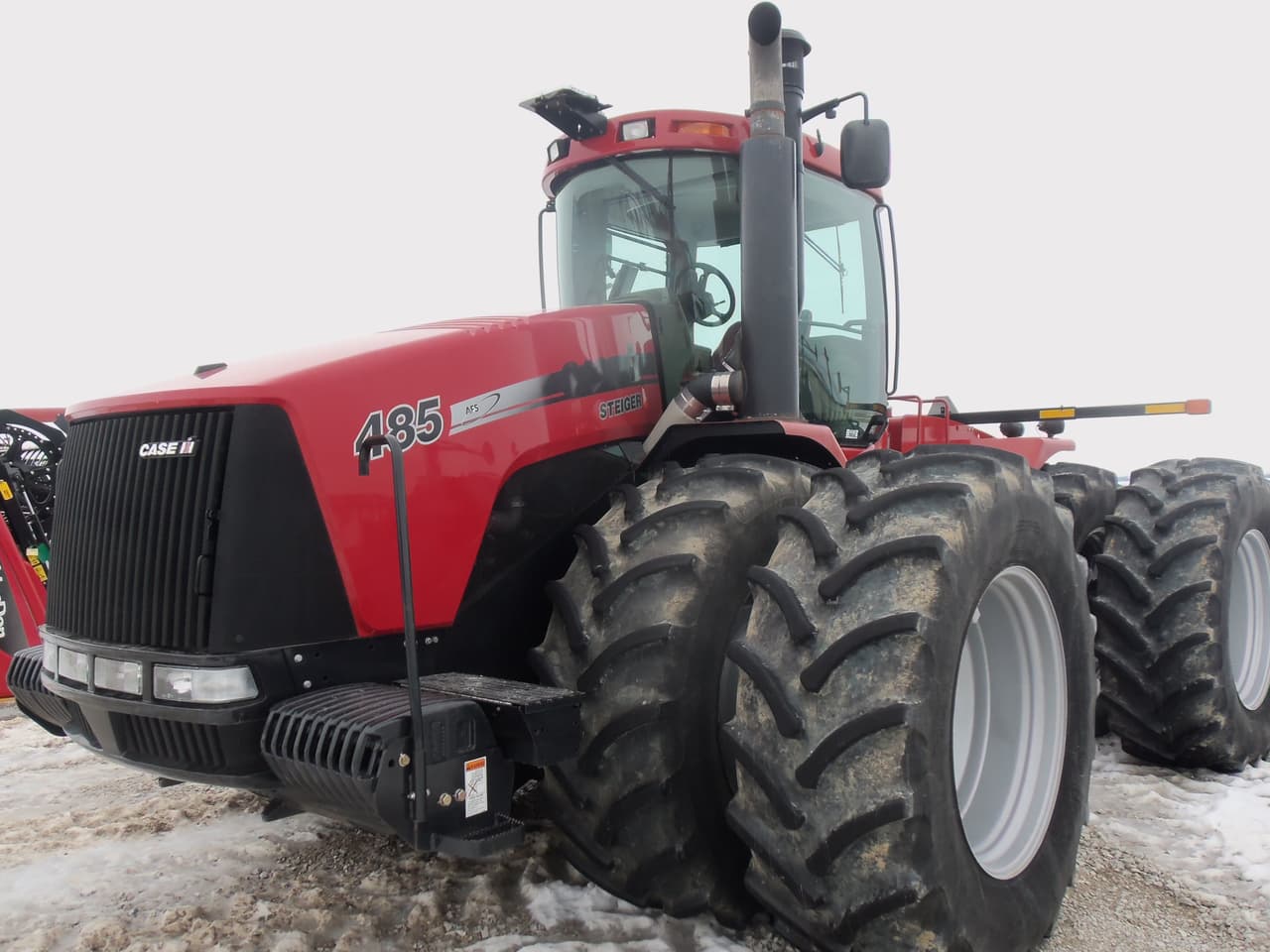

CaseIH Steiger 485

Last Updated: June 2024

Overview

The CaseIH Steiger 485 is a four-wheel drive (4WD) tractor. It is equipped with a 6-cylinder, 24-valve, turbocharged diesel engine by Iveco. The engine is liquid-cooled and has a displacement of 786 cubic inches. The engine has a power output of 485 hp and is capable of reaching up to 534 hp at maximum. The tractor uses a hydrostatic power steering and has a full power shift transmission with 16 forward gears and 2 reverse gears. The chassis is of 4x4 articulated 4WD type. The tractor has a frame width of 44 inches and weighs approximately 38500 lbs.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 485

Transmission: full power shift

Drive Type: 4WD

Operating Weight: 38500

Fuel Type: turbocharged diesel

Image Gallery

CaseIH Steiger 485 Tractor CaseIH Steiger 485 Tractor CaseIH Steiger 485 Tractor CaseIH Steiger 485 Tractor CaseIH Steiger 485 Tractor CaseIH Steiger 485 Tractor

CaseIH Steiger 485 vs. Similar Tractors

Power Output
Excellent
Greater than 97% of similar tractors.
Operating Weight
Above Average
Greater than 74% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
turbocharged diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
786
Bore (in)
5.315
Stroke (in)
5.906
Rated RPM
2000
Power Output (hp)
485

Transmission

Type
full power shift
Forward Gears
16
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
44
Height (in)
-
Operating Weight (lb)
38500

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
4N
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter (volts: 24)
Brake Type
-
Hydraulic System Type
parallel pressure flow compensated (PFC)
