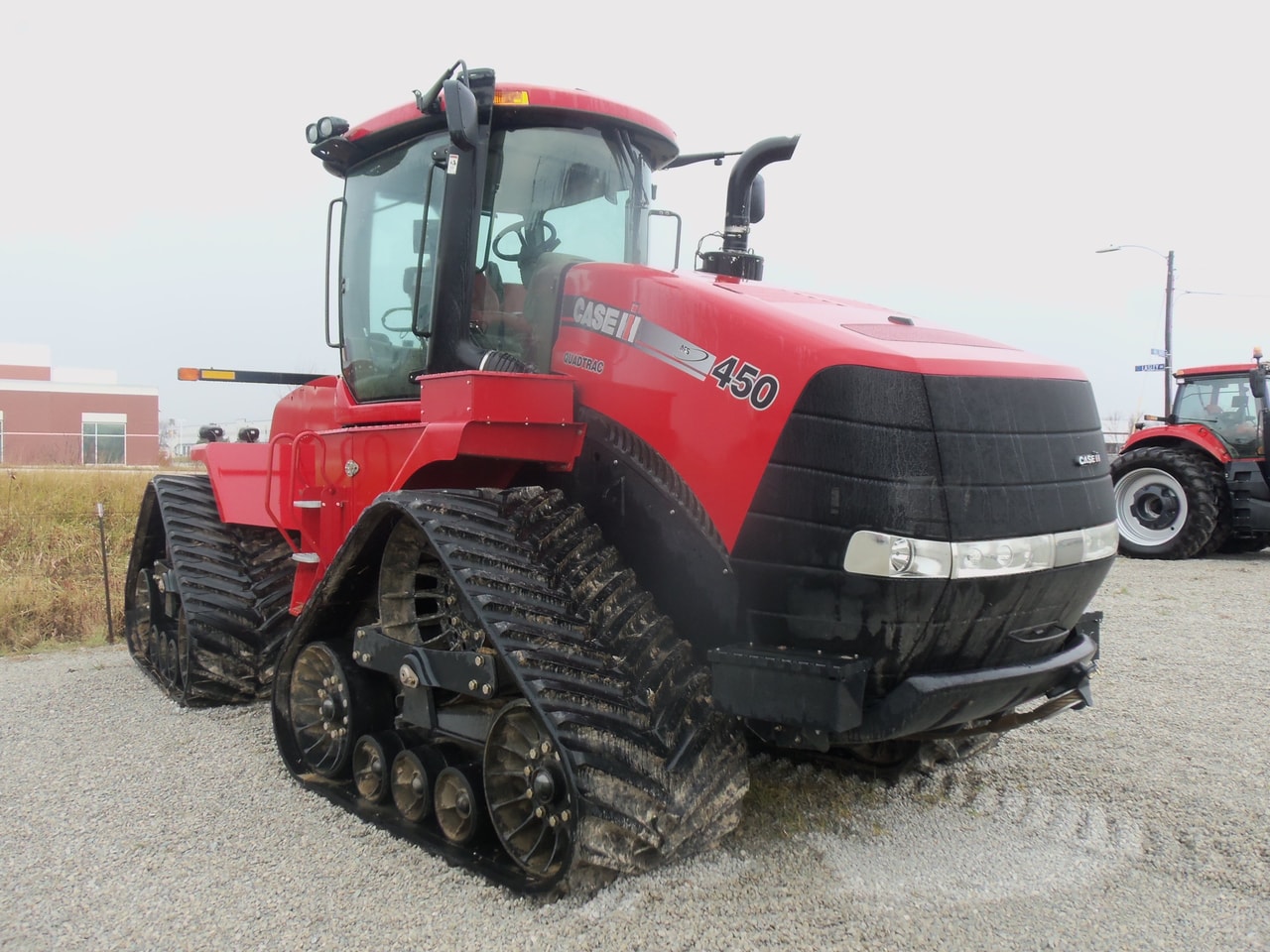

CaseIH Steiger 450 Quadtrac

Last Updated: June 2024

Overview

The CaseIH Steiger 450 Quadtrac tractor maneuvers with a 4WD chassis built for heavy-duty work. Its engine, manufactured by Iveco, delivers a power output of 450 horsepower, providing robust capability for demanding tasks. The engine features a liquid cooling system and a turbocharged and aftercooled induction system, with a displacement of 787 ci, operating at a rated RPM of 2100. The tractor's full power shift transmission ensures versatile and efficient operation with 16 forward and 2 reverse gears. This model has an operating weight of between 53,554 lbs and 54,290 lbs, enabling strong performance in various terrains. The hydraulic system is a closed center pressure flow compensated (PFC), designed for efficient power delivery. Overall, the Steiger 450 Quadtrac provides impressive power and adaptability.
Show more...

Key Specifications

Power Output: 450 hp

Transmission: Full power shift

Drive Type: 4WD

Operating Weight: 53554 lbs to 54290 lbs

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged and aftercooled
Cylinders
6
Displacement (ci)
787
Bore (in)
5.315 in
Stroke (in)
5.906
Rated RPM
2100 rpm
Power Output (hp)
450 hp

Transmission

Type
Full power shift
Forward Gears
16
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
53554 lbs to 54290 lbs

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 (based on Model name Quadtrac)
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
4N
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Closed center pressure flow compensated (PFC)
