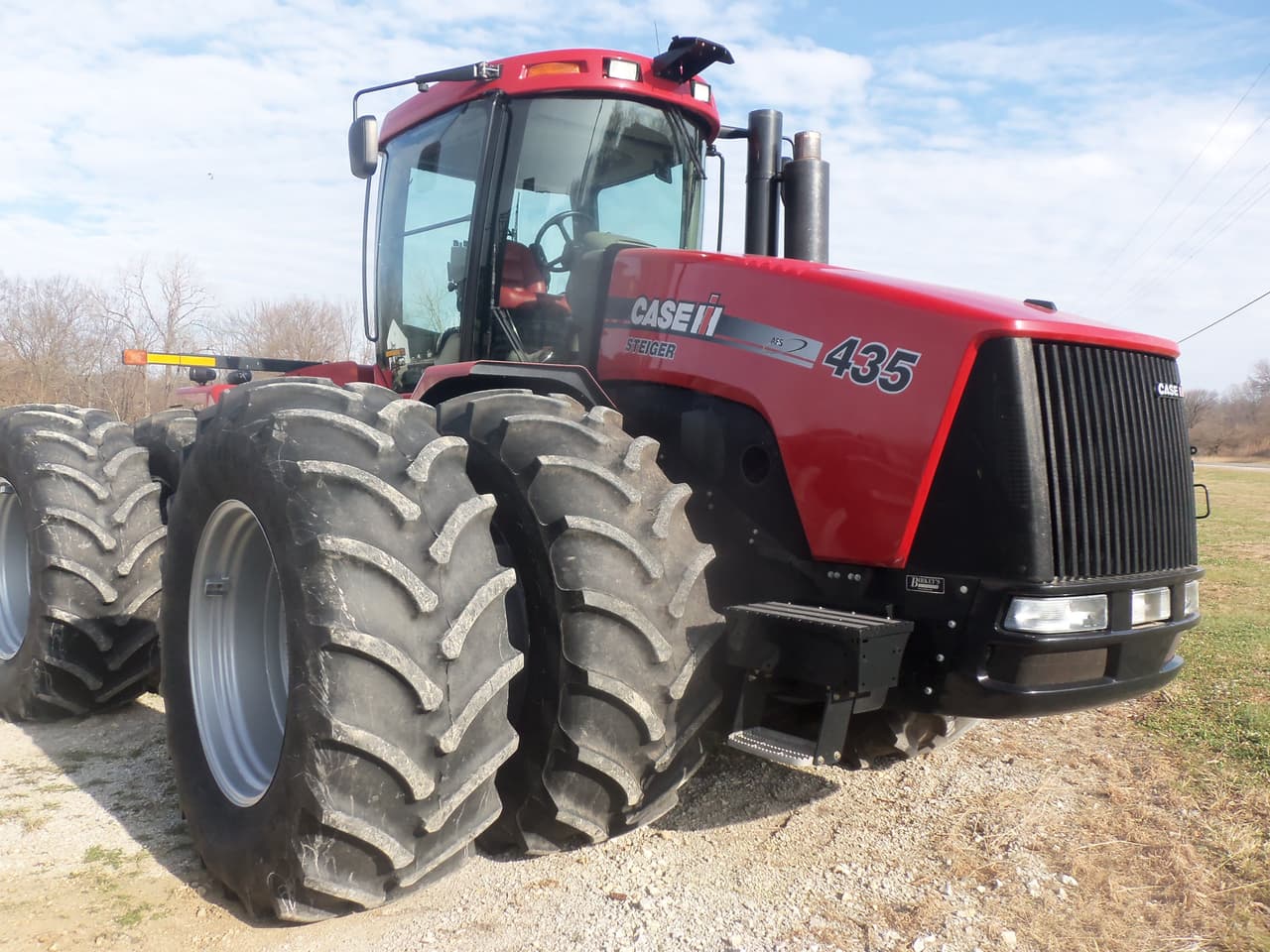

CaseIH Steiger 435

Last Updated: June 2024

Overview

The CaseIH Steiger 435 is a powerful tractor designed for large-scale agricultural operations. It features a turbocharged, aftercooled diesel engine with 6 cylinders and a displacement of 786 cubic inches. The tractor produces a power output of 435hp and operates at a rated RPM of 2000. The transmission type is a full power shift with 24 forward gears and 6 reverse gears. The steering is hydrostatic power and the cooling system is liquid-cooled. The tractor operates with a width of 44 inches (frame size). Its operating weight is 41,605 lbs, making it suitable for heavy-duty operations.
Show more...

Key Specifications

Category: Agricultural

Power Output: 435

Transmission: Full Power Shift

Operating Weight: 41605

Fuel Type: Diesel

Image Gallery

CaseIH Steiger 435 Tractor CaseIH Steiger 435 Tractor CaseIH Steiger 435 Tractor CaseIH Steiger 435 Tractor CaseIH Steiger 435 Tractor CaseIH Steiger 435 Tractor CaseIH Steiger 435 Tractor CaseIH Steiger 435 Tractor

CaseIH Steiger 435 vs. Similar Tractors

Power Output
Excellent
Greater than 93% of similar tractors.
Operating Weight
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
Liquid-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Aftercooled
Cylinders
6
Displacement (ci)
786
Bore (in)
5.314
Stroke (in)
5.906
Rated RPM
2000
Power Output (hp)
435

Transmission

Type
Full Power Shift
Forward Gears
24
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
-
Width (in)
44
Height (in)
-
Operating Weight (lb)
41605

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Parallel Pressure Flow Compensated (PFC)
