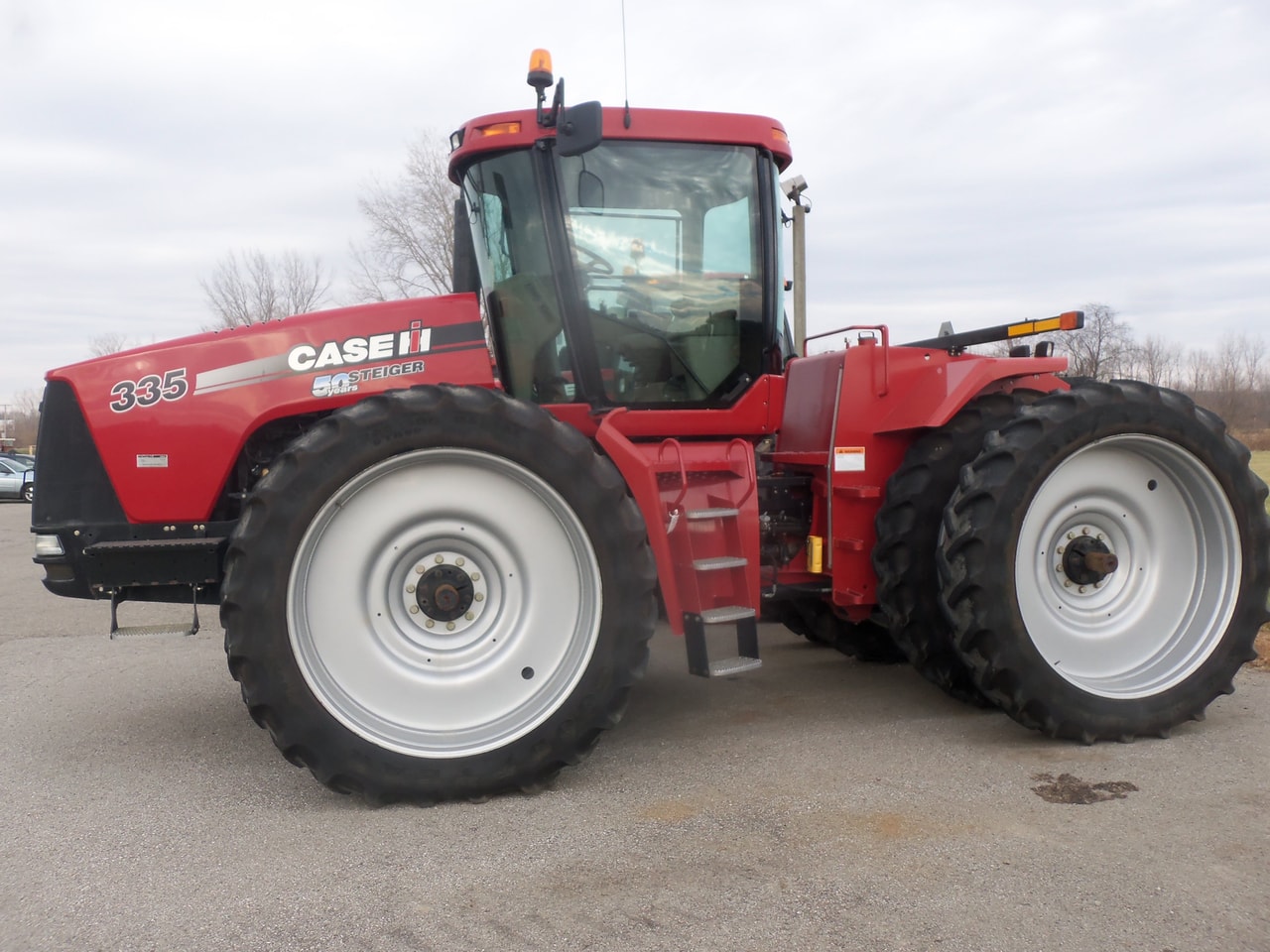

CaseIH Steiger 335

Last Updated: June 2024

Overview

The CaseIH Steiger 335 is a Four-wheel Drive (4WD) tractor designed with power and efficiency in mind. It boasts a 4x4 articulated 4WD chassis and relies on hydrostatic power steering for precise control. Providing plenty of power, the Steiger 335 incorporates a 6-cylinder turbocharged aftercooled diesel engine, built by CNH, with a power output of 335 hp. The engine delivers smooth operation with liquid cooling and a rated RPM of 2000. It also features a 16-speed full power shift transmission, allowing for a selection of 16 forward and 2 reverse gears. It operates under a parallel pressure flow compensated (PFC) hydraulic system, ensuring excellent performance at all times. Despite its power, the Steiger 335 maintains compactness with a frame width of 36.5 inches.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 335

Transmission: full power shift

Drive Type: 4WD

Operating Weight: 32120

Fuel Type: diesel

Image Gallery

CaseIH Steiger 335 Tractor CaseIH Steiger 335 Tractor CaseIH Steiger 335 Tractor CaseIH Steiger 335 Tractor CaseIH Steiger 335 Tractor CaseIH Steiger 335 Tractor CaseIH Steiger 335 Tractor CaseIH Steiger 335 Tractor CaseIH Steiger 335 Tractor CaseIH Steiger 335 Tractor CaseIH Steiger 335 Tractor CaseIH Steiger 335 Tractor

CaseIH Steiger 335 vs. Similar Tractors

Power Output
Excellent
Greater than 95% of similar tractors.
Operating Weight
Above Average
Greater than 73% of similar tractors.

Technical Specifications

Engine

Manufacturer
CNH
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged aftercooled
Cylinders
6
Displacement (ci)
540
Bore (in)
4.488
Stroke (in)
5.689
Rated RPM
2000
Power Output (hp)
335

Transmission

Type
full power shift
Forward Gears
16
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
36.5
Height (in)
-
Operating Weight (lb)
32120

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
parallel pressure flow compensated (PFC)
