CaseIH Puma 230

Last Updated: June 2024

Overview

The CaseIH Puma 230 is a robust Row-Crop tractor designed for versatile and efficient performance. It features a 6-cylinder, 24-valve FPT engine with a displacement of 411 ci that's turbocharged and diesel-fuelled. The Puma 230 boasts a maximum power of 269 hp, and it operates on a continuously variable transmission (CVT) system allowing infinite forward and reverse gears. With a weight of 19800 lbs, it supports large-scale farming and fieldwork operations. It follows an Interim Tier 4 emission standard, contributing to a carbon-efficient farming practice. The tractor's rear type 2/3N hitch system offers excellent towing capabilities for various attachments.

Key Specifications

Category: Row Crop

Power Output: 231 hp (ECE R120 Rated Power)

Transmission: Continuously variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 19800

Fuel Type: Turbocharged diesel

Image Gallery

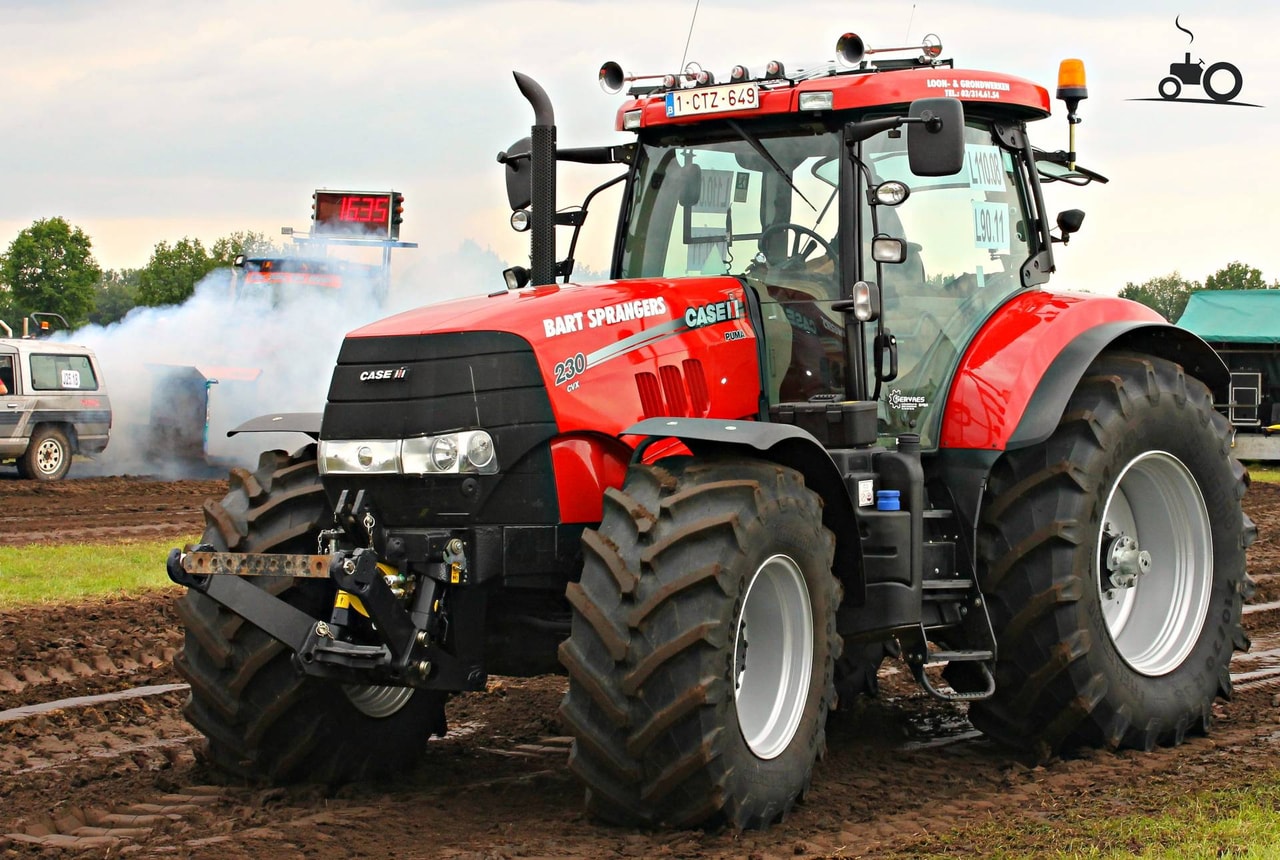

CaseIH Puma 230 Tractor

CaseIH Puma 230 vs. Similar Tractors

Power Output

Excellent

Greater than 96% of similar tractors.

Operating Weight

Above Average

Greater than 71% of similar tractors.

Technical Specifications

Engine

Manufacturer: FPT
Model: -
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Turbocharged diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 411
Bore (in): 4.094
Stroke (in): 5.197
Rated RPM: 2200
Power Output (hp): 231 hp (ECE R120 Rated Power)

Transmission

Type: Continuously variable transmission (CVT)
Forward Gears: -
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 19800

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Rear Type: 2/3N
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: Closed center pressure flow compensating (PFC)
