CaseIH Puma 195

Last Updated: June 2024

Key Specifications

Category: Row Crop

Power Output: 195

Transmission: Full power shift, EconoGear, Continuous variable transmission (CVT)

Operating Weight: 17635

Fuel Type: Diesel

Image Gallery

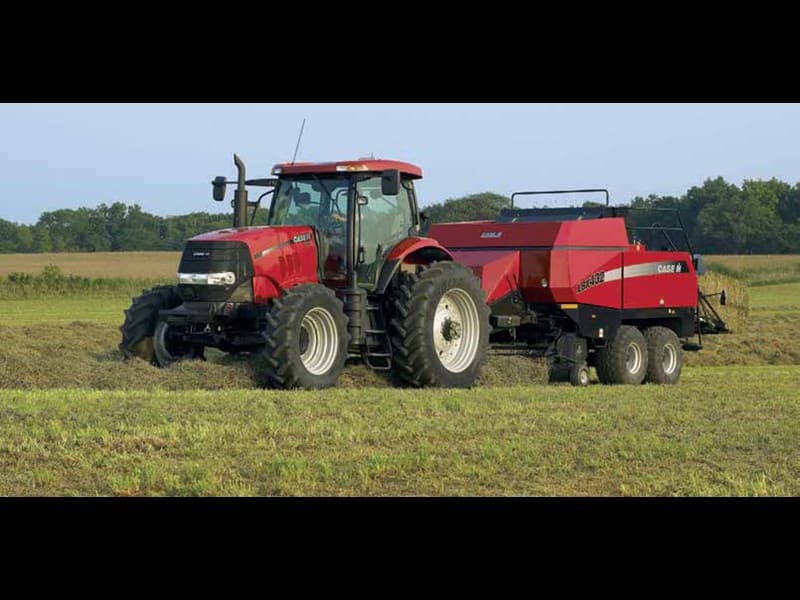

CaseIH Puma 195 Tractor CaseIH Puma 195 Tractor CaseIH Puma 195 Tractor CaseIH Puma 195 Tractor CaseIH Puma 195 Tractor CaseIH Puma 195 Tractor CaseIH Puma 195 Tractor CaseIH Puma 195 Tractor CaseIH Puma 195 Tractor CaseIH Puma 195 Tractor CaseIH Puma 195 Tractor CaseIH Puma 195 Tractor

CaseIH Puma 195 vs. Similar Tractors

Power Output
Above Average
Greater than 71% of similar tractors.
Operating Weight
Average
Greater than 65% of similar tractors.

Technical Specifications

Engine

Manufacturer
CNH
Model
-
Cooling Type
Liquid (Viscous fan)
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Intercooled turbocharged
Cylinders
6
Displacement (ci)
411
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
195

Transmission

Type
Full power shift, EconoGear, Continuous variable transmission (CVT)
Forward Gears
17/18/19 (Multiple Transmission options)
Reverse Gears
6 (Across all Transmission types)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
122.6 (Highest point: Exhaust)
Operating Weight (lb)
17635

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard Agricultural
Manufacture - End Year
-
Hitch Type
II/IIIN
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Pressure flow compensating (PFC)
