CaseIH Puma 185

Last Updated: June 2024

Overview

The CaseIH Puma 185 is a robust and versatile row-crop tractor designed for a variety of farming tasks. Equipped with a 6-cylinder, 24-valve, turbocharged diesel engine from FPT, it features liquid cooling and a displacement of 410.6ci. An 18-speed or 19-speed full power shift, or a continuously variable transmission (CVT) are available. It has a maximum operating weight of 18135 lbs and a wheelbase of 113.6 inches. Notable features include a dual paper elements air cleaner and a selective catalytic reduction (SCR) emission control system, which assists in maintaining clean emissions.

Key Specifications

Category: Row Crop

Power Output: 185 (Rated), 234 (Maximum)

Transmission: 18-speed full power shift / 19-speed full power shift / Continuously variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 18135

Fuel Type: Diesel

Image Gallery

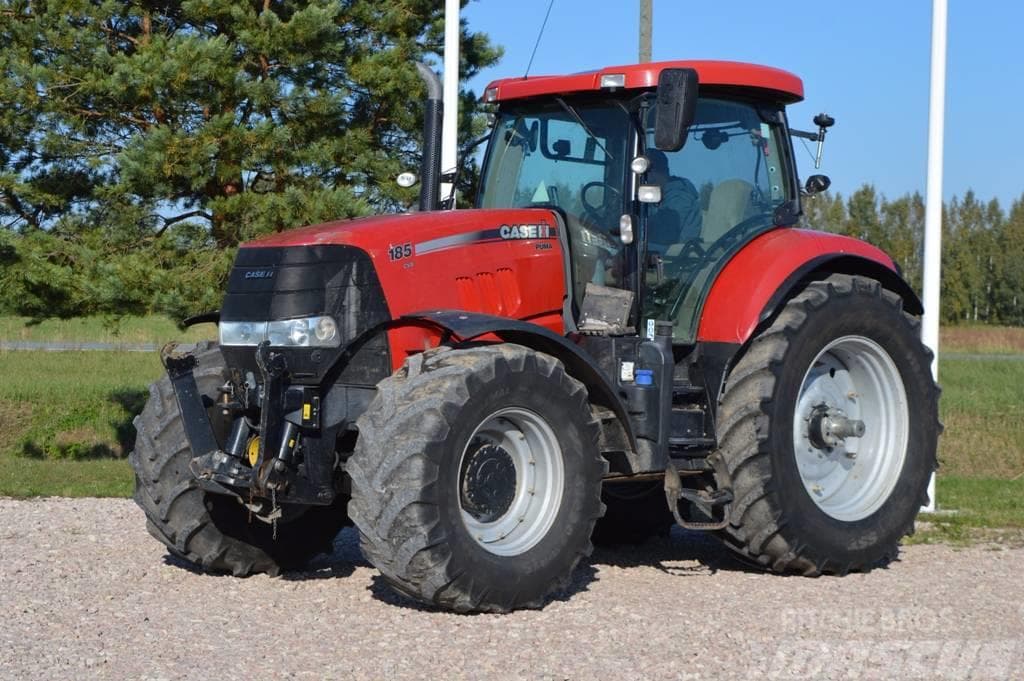

CaseIH Puma 185 Tractor

CaseIH Puma 185 vs. Similar Tractors

Power Output

Average

Greater than 69% of similar tractors.

Operating Weight

Average

Greater than 67% of similar tractors.

Technical Specifications

Engine

Manufacturer: FPT
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 410.6
Bore (in): 4.094
Stroke (in): 5.197
Rated RPM: 2200
Power Output (hp): 185 (Rated), 234 (Maximum)

Transmission

Type: 18-speed full power shift / 19-speed full power shift / Continuously variable transmission (CVT)
Forward Gears: 18 / 19
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): -
Width (in): 60 to 88 (Front Tread Width)
Height (in): -
Operating Weight (lb): 18135

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Type 2/3N
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed center pressure flow compensating (PFC)
