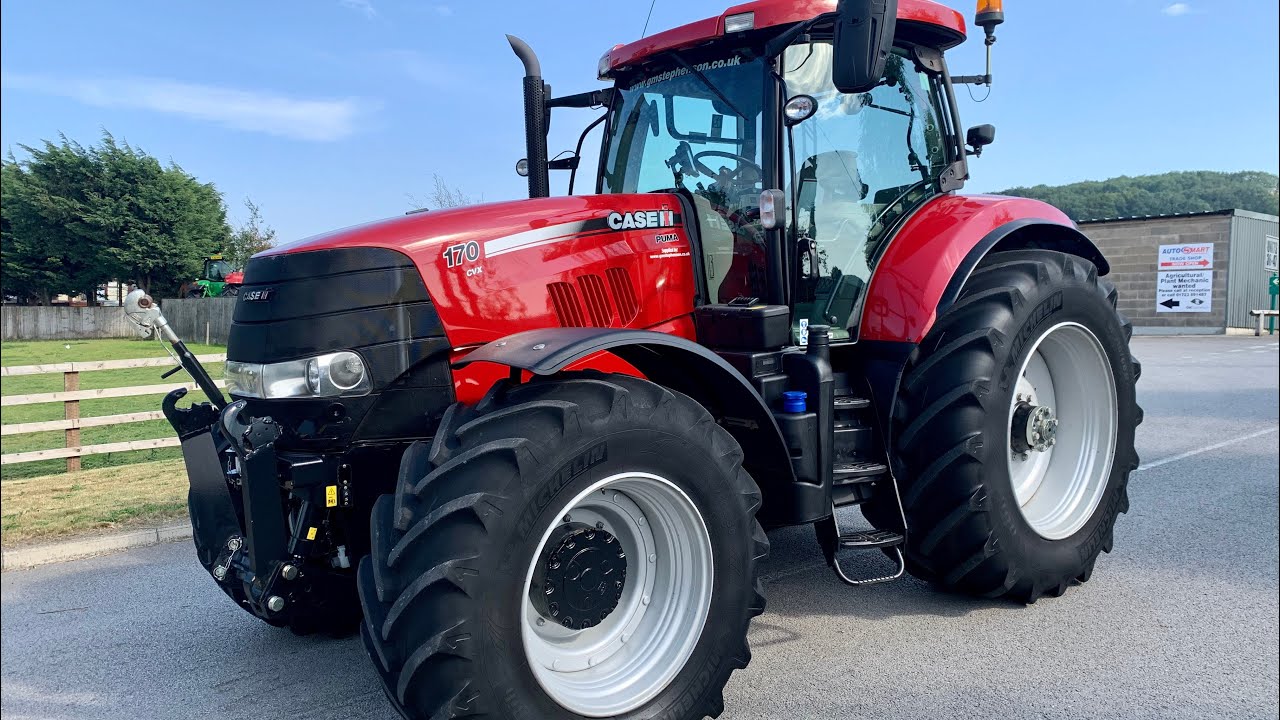

CaseIH Puma 170

Last Updated: June 2024

Key Specifications

Category: Row Crop

Power Output: 167 (ECE R120 rated), 218 (ECE R120 max)

Transmission: Full power shift / Continuously variable transmission (CVT)

Drive Type: 4 Wheel Drive (4WD)

Operating Weight: 18740

Fuel Type: Diesel

Image Gallery

CaseIH Puma 170 Tractor CaseIH Puma 170 Tractor CaseIH Puma 170 Tractor CaseIH Puma 170 Tractor CaseIH Puma 170 Tractor CaseIH Puma 170 Tractor CaseIH Puma 170 Tractor CaseIH Puma 170 Tractor CaseIH Puma 170 Tractor CaseIH Puma 170 Tractor

CaseIH Puma 170 vs. Similar Tractors

Power Output
Excellent
Greater than 95% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
Not provided
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
410.6
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
167 (ECE R120 rated), 218 (ECE R120 max)

Transmission

Type
Full power shift / Continuously variable transmission (CVT)
Forward Gears
18 / Infinite (CVT)
Reverse Gears
6 / Infinite (CVT)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
18740

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4 Wheel Drive (4WD)
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
2/3N
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed Center Pressure Flow Compensating (PFC)
