CaseIH Puma 165

Last Updated: June 2024

Key Specifications

Category: Row Crop

Power Output: 165

Transmission: Full power shift

Drive Type: 4WD

Operating Weight: 17725

Fuel Type: Diesel

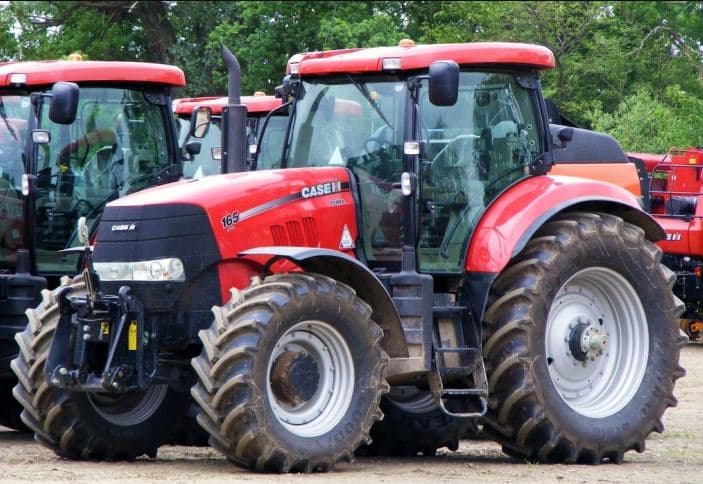

Image Gallery

CaseIH Puma 165 Tractor CaseIH Puma 165 Tractor CaseIH Puma 165 Tractor CaseIH Puma 165 Tractor CaseIH Puma 165 Tractor CaseIH Puma 165 Tractor CaseIH Puma 165 Tractor CaseIH Puma 165 Tractor CaseIH Puma 165 Tractor CaseIH Puma 165 Tractor CaseIH Puma 165 Tractor CaseIH Puma 165 Tractor

CaseIH Puma 165 vs. Similar Tractors

Power Output
Average
Greater than 61% of similar tractors.
Operating Weight
Average
Greater than 66% of similar tractors.

Technical Specifications

Engine

Manufacturer
CNH / FPT
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged with air-to-air aftercooling
Cylinders
6
Displacement (ci)
411
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
165

Transmission

Type
Full power shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
119.7 (cab) / 122.6 (exhaust)
Operating Weight (lb)
17725

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
30
Front Tire Width (in)
16.9
Rear Tire Diameter (in)
42
Rear Tire Width (in)
20.8
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II/IIIN
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center pressure flow compensating
