CaseIH Puma 160

Last Updated: June 2024

Overview

The CaseIH Puma 160 is a row-crop tractor equipped with a 4x4 MFWD 4WD chassis for robust performance. Powering the Puma 160 is a turbocharged diesel engine, sporting 6 cylinders, a displacement of 410.6 ci, and liquid cooling. Two transmission types are implemented; an 18/19 speed full power shift and a continuously variable transmission, each inclining towards specific tasks. It features a hydraulic system of closed center pressure flow compensating. Boasting a notable operating weight of 16360 lbs, it stands as a versatile and reliable choice for diverse farming operations.

Key Specifications

Category: Row Crop

Power Output: 160 - 203

Transmission: Full power shift/Continuously variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 16360

Fuel Type: Diesel

Image Gallery

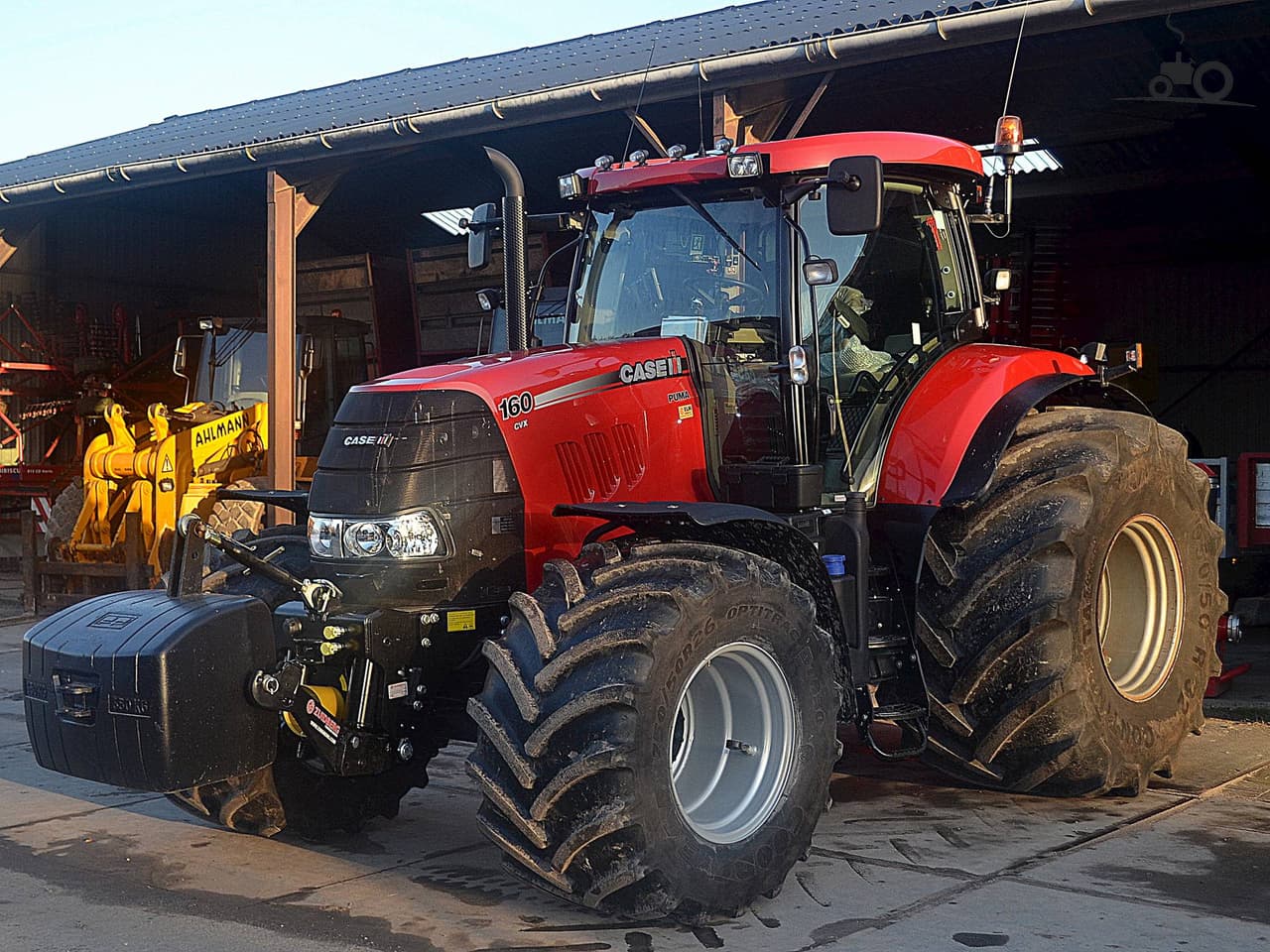

CaseIH Puma 160 Tractor

CaseIH Puma 160 vs. Similar Tractors

Power Output

Excellent

Greater than 95% of similar tractors.

Operating Weight

Average

Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer: FPT
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 410.6
Bore (in): 4.094
Stroke (in): 5.197
Rated RPM: 2200
Power Output (hp): 160 - 203

Transmission

Type: Full power shift/Continuously variable transmission (CVT)
Forward Gears: 18/19/Infinite (CVT)
Reverse Gears: 6/6/Infinite (CVT)
Total Gears: -

Dimensions

Length (in): -
Width (in): 61.4 to 88.8
Height (in): -
Operating Weight (lb): 16360

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: 2/3N
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed center pressure flow compensating (PFC)
