CaseIH MX90C

Last Updated: June 2024

Overview

The CaseIH MX90C is a utility tractor featuring a turbocharged diesel engine manufactured by Perkins. This 4-wheel-drive model operates on a hydrostatic power steering system and uses a 16-speed partial power shift transmission. The 4-cylinder engine produces 90 horsepower and is rated for 2200 RPM. The hydraulic wet disc brake system ensures effective stopping power, and the tractor operates with a closed center pressure-flow compensating (PFC) hydraulic system. The tractor is approximately 170.6 inches in length and has a height of 110.3 inches. It operates at a weight of 11,200 pounds.

Key Specifications

Category: Utility

Power Output: 90

Transmission: 16-speed partial power shift

Drive Type: 4WD

Operating Weight: 11200

Fuel Type: Diesel

Image Gallery

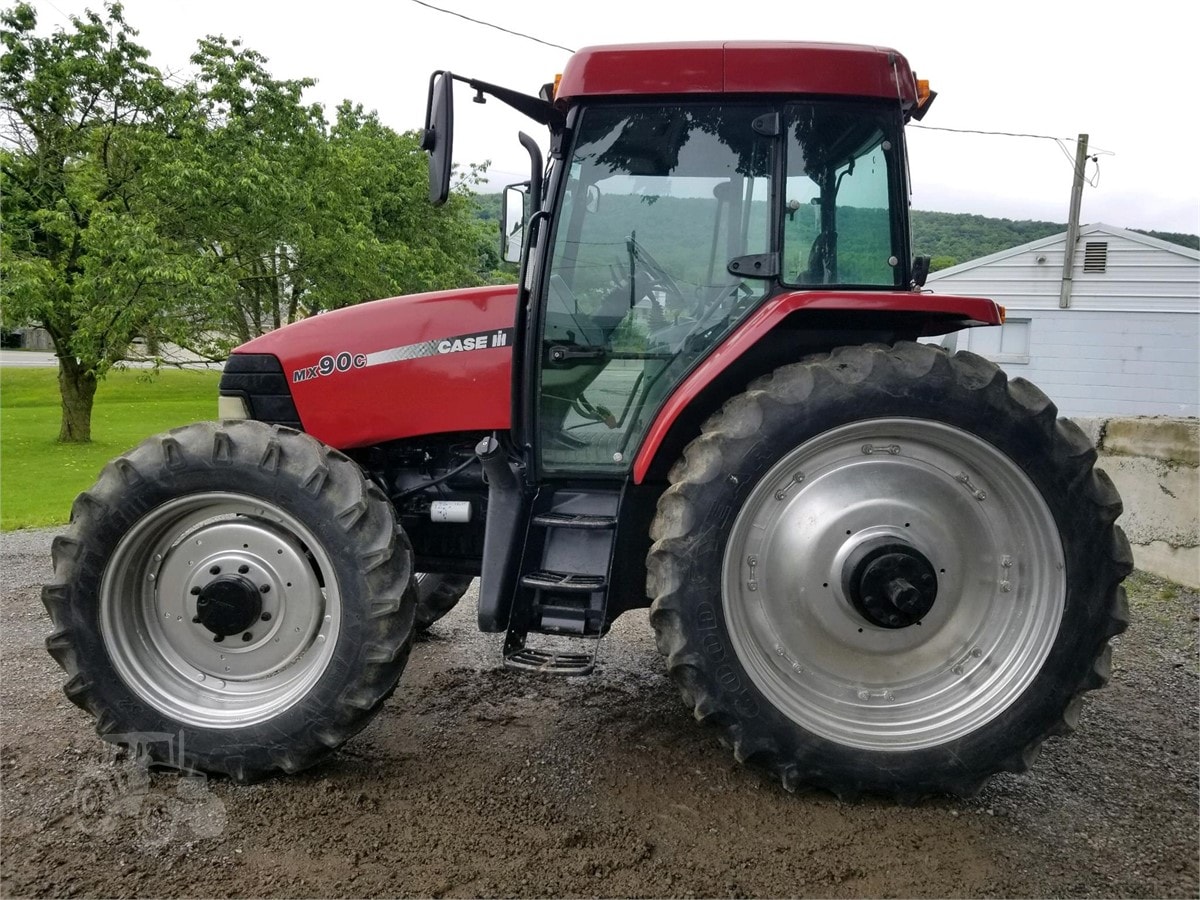

CaseIH MX90C Tractor

CaseIH MX90C vs. Similar Tractors

Power Output

Above Average

Greater than 77% of similar tractors.

Operating Weight

Average

Greater than 65% of similar tractors.

Technical Specifications

Engine

Manufacturer: Perkins
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 243.5
Bore (in): 3.937
Stroke (in): 5
Rated RPM: 2200
Power Output (hp): 90

Transmission

Type: 16-speed partial power shift
Forward Gears: 16
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 170.6
Width (in): -
Height (in): 110.3
Operating Weight (lb): 11200

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 16.6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: II
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric Starter (12 volts)
Brake Type: Hydraulic wet discs
Hydraulic System Type: Closed center pressure-flow compensating (PFC)
