CaseIH MX150 Maxxum

Last Updated: June 2024

Key Specifications

Transmission: Partial Power Shift, Creeper

Drive Type: 2WD and 4WD

Operating Weight: 14,000

Fuel Type: Diesel

Image Gallery

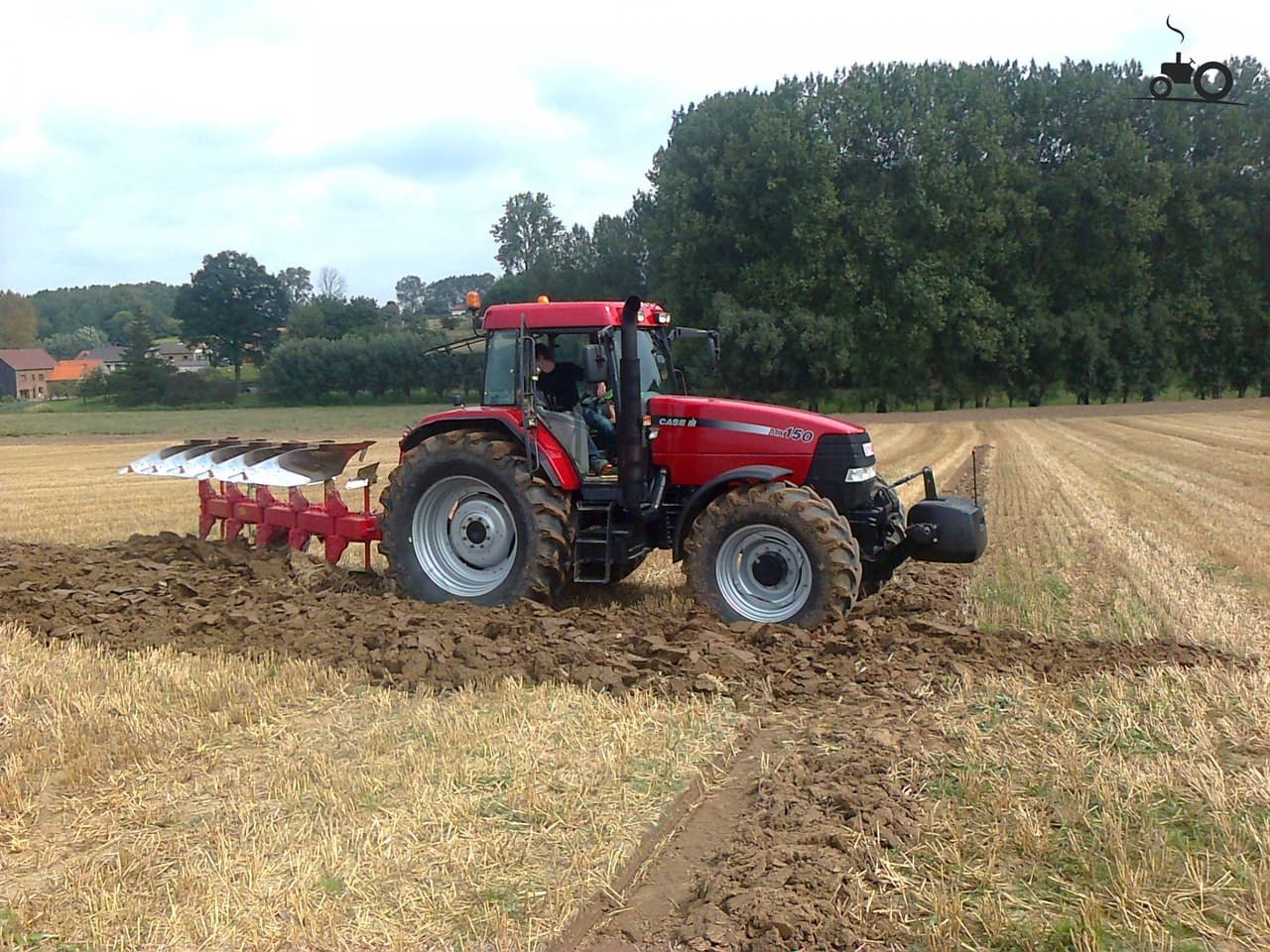

CaseIH MX150 Maxxum Tractor CaseIH MX150 Maxxum Tractor CaseIH MX150 Maxxum Tractor CaseIH MX150 Maxxum Tractor CaseIH MX150 Maxxum Tractor CaseIH MX150 Maxxum Tractor CaseIH MX150 Maxxum Tractor CaseIH MX150 Maxxum Tractor CaseIH MX150 Maxxum Tractor CaseIH MX150 Maxxum Tractor

Technical Specifications

Engine

Manufacturer
Cummins/CDC
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
359
Bore (in)
4.016
Stroke (in)
4.724
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Partial Power Shift, Creeper
Forward Gears
16 (Partial Power Shift), 32 (Creeper)
Reverse Gears
12 (Partial Power Shift), 24 (Creeper)
Total Gears
-

Dimensions

Length (in)
206.4
Width (in)
-
Height (in)
114.7 (Cab)
Operating Weight (lb)
14,000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 for 2WD, 4x4 for 4WD
Drive Type
2WD and 4WD
Steering Type
-
Coolant Capacity (qts)
21
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
II/III/IIIN
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric Starter, 12 volts
Brake Type
Wet Disc
Hydraulic System Type
Closed center pressure-flow compensated (PFC)
