CaseIH MX100C

Last Updated: June 2024

Overview

The CaseIH MX100C utility tractor is a reliable and powerful machine. Its engine is supplied by Perkins, a trusted manufacturer known for its engines' durability and power efficiency. This model comes with a turbocharged diesel, 4-cylinder, liquid-cooled engine, providing an impressive 100 horsepower. The CaseIH MX100C employs a partial power shift transmission with 16 forward and 12 reverse gears. With its operating weight of 10,472 lbs, it holds well in demanding work environments. The size is complemented by its length of 170.6 inches and a height of 110.3 inches, with a hydraulic wet disc braking system that adds to the safety and control of the machine. For operators, a comfortable cab offers protection and improved efficiency during long hours of work.

Key Specifications

Category: Utility

Power Output: 100

Transmission: Partial Power Shift

Drive Type: 4WD

Operating Weight: 10472

Fuel Type: Diesel

Image Gallery

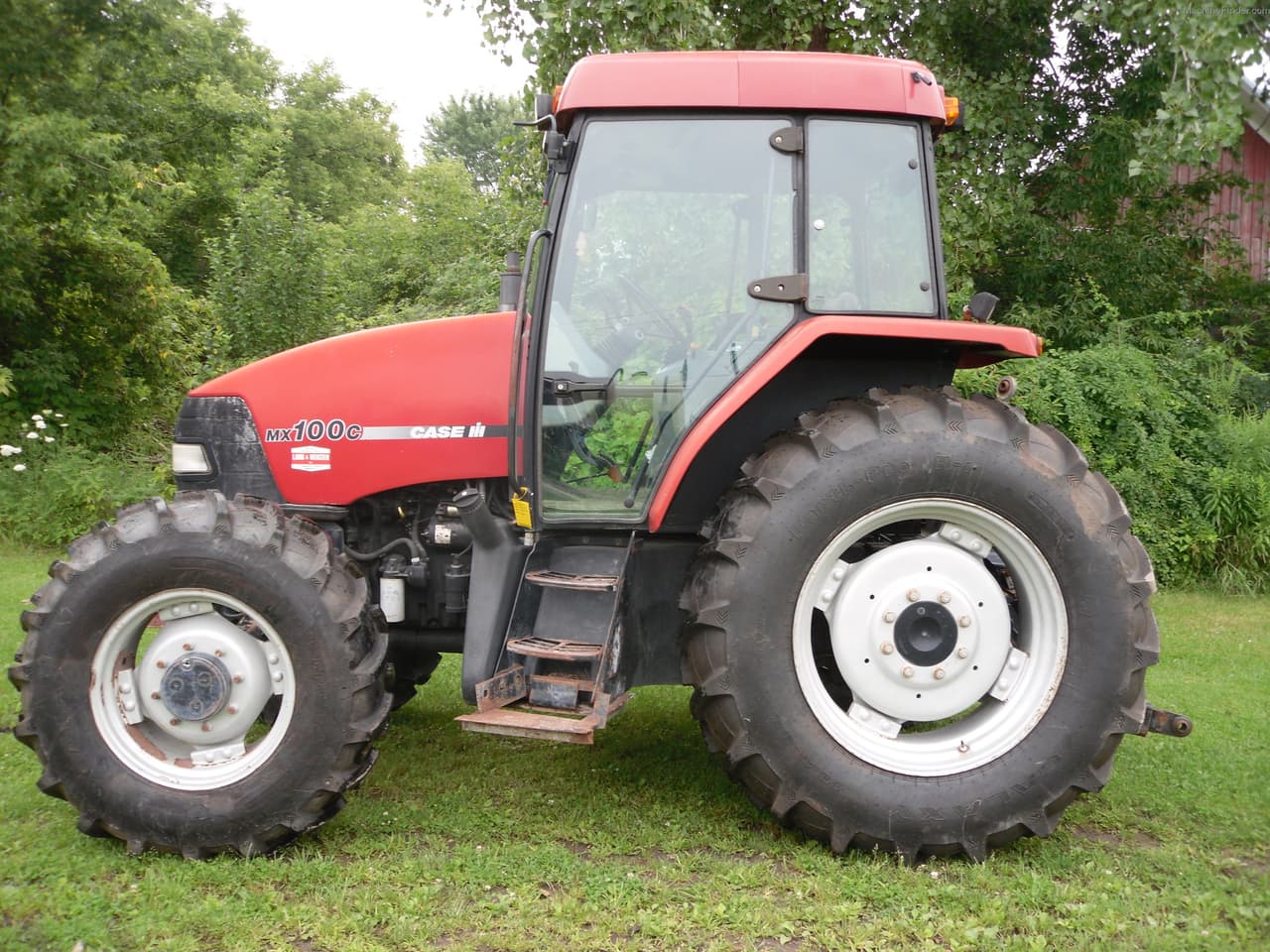

CaseIH MX100C Tractor

CaseIH MX100C vs. Similar Tractors

Power Output

Above Average

Greater than 82% of similar tractors.

Operating Weight

Average

Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer: Perkins
Model: -
Cooling Type: Liquid
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 243.5
Bore (in): 3.937
Stroke (in): 5
Rated RPM: 2200
Power Output (hp): 100

Transmission

Type: Partial Power Shift
Forward Gears: 16
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 170.6
Width (in): -
Height (in): 110.3
Operating Weight (lb): 10472

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): 16.6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: Hydraulic wet discs
Hydraulic System Type: Closed Center Pressure-Flow Compensating (PFC)
