CaseIH Maxxum 130

Last Updated: September 2024

Overview

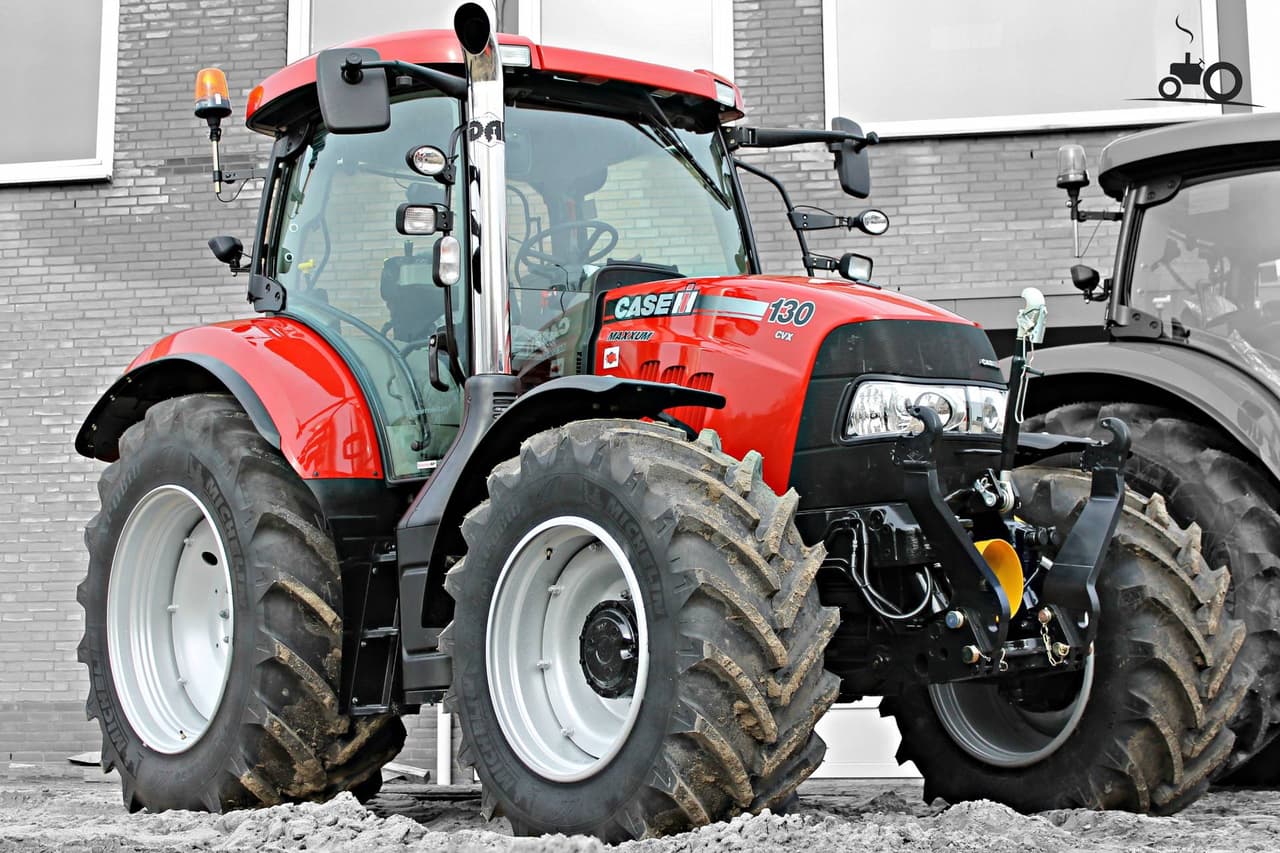

The CaseIH Maxxum 130 is a powerful row crop tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by FPT that produces 130 horsepower. This engine is turbocharged and aftercooled, which helps it perform well in various conditions. The tractor has a 16-speed transmission that lets farmers change gears easily for different tasks.

This Maxxum model is a 4-wheel drive tractor with big tires, making it great for working in fields. It weighs 12,465 pounds, which is about average for tractors in its class. The tractor has a closed center hydraulic system and a rear hitch that can handle heavy implements. It also has wet disc brakes and power steering to make driving easier. Some extra features include a 12-volt electrical system and a wheelbase of 94.9 inches. Overall, the CaseIH Maxxum 130 is a reliable tractor that can handle many farm jobs with ease.
Show more...

Key Specifications

Category: Row Crop

Power Output: 130 hp (96.9 kW)

Transmission: 16-speed partial power shift

Drive Type: 4WD

Operating Weight: 12465 lb (5654 kg)

Fuel Type: Diesel

CaseIH Maxxum 130 vs. Similar Tractors

Power Output

The Power Output for the CaseIH Maxxum 130 is Average. It is greater than 44% of similar Row Crop tractors in our database.

Horsepower distribution of Row Crop tractors

(across 1.1K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH Maxxum 130 is Average. It is greater than 51% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH Maxxum 130 is Below Average. It is greater than 23% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH Maxxum 130 is Average. It is greater than 58% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
FPT
Cooling Type
Viscous fan
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled diesel
Cylinders
4
Displacement
273 ci (4.5 L)
Bore
4.09 in (104.0 mm)
Stroke
5.20 in (132.0 mm)
Rated RPM
2200
Power Output
130 hp (96.9 kW)

Transmission

Type
16-speed partial power shift

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Brake Type
Hydraulic Wet Disc
