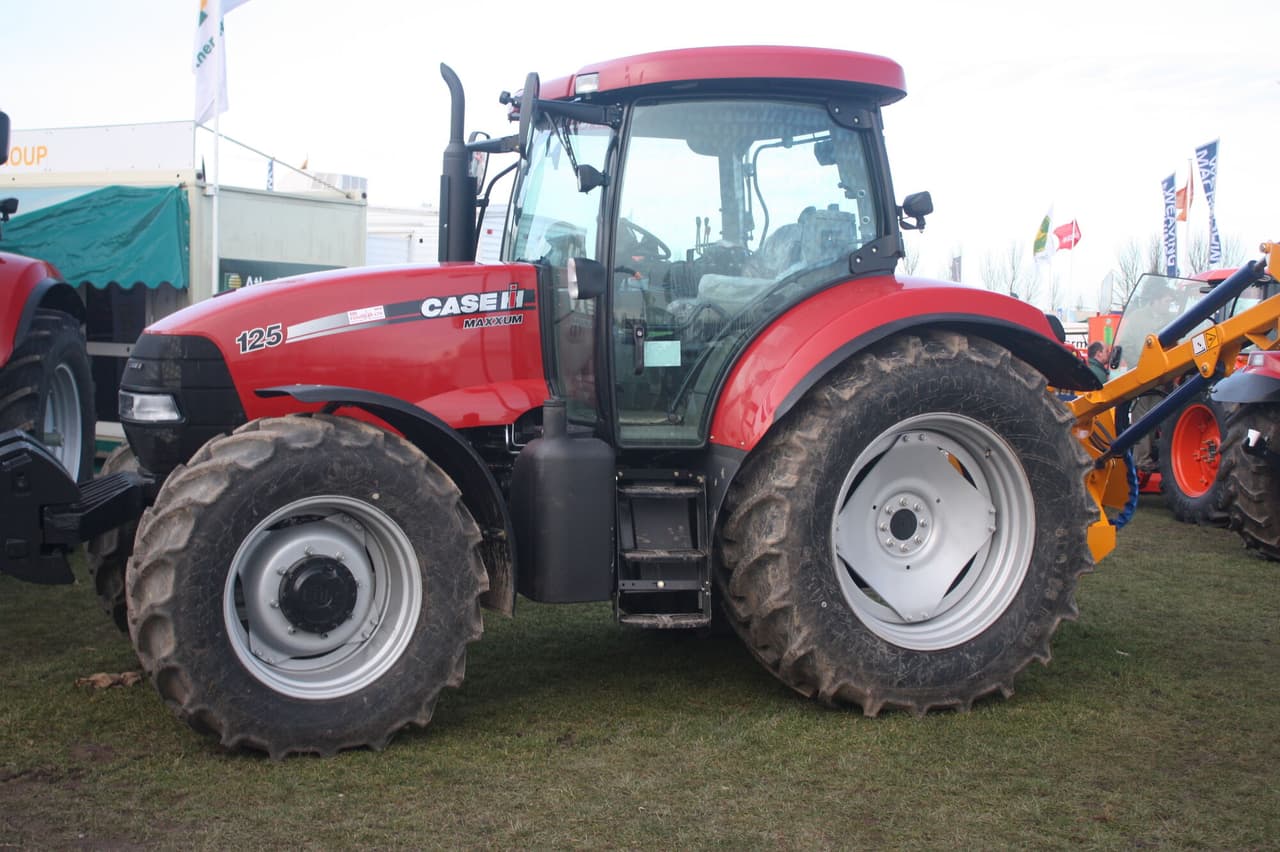

CaseIH Maxxum 125

Last Updated: June 2024

Key Specifications

Category: Row Crop

Power Output: 125

Transmission: Mechanical shuttle / Partial power shift

Drive Type: 2WD

Operating Weight: 9466 to 12270

Fuel Type: Diesel

Image Gallery

CaseIH Maxxum 125 Tractor CaseIH Maxxum 125 Tractor CaseIH Maxxum 125 Tractor CaseIH Maxxum 125 Tractor CaseIH Maxxum 125 Tractor CaseIH Maxxum 125 Tractor CaseIH Maxxum 125 Tractor CaseIH Maxxum 125 Tractor

CaseIH Maxxum 125 vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Operating Weight
Excellent
Greater than 91% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
-
Cooling Type
Viscous fan (Liquid-cooled)
Cylinder Orientation
-
Valve Configuration
12-valve
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
6
Displacement (ci)
411
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
125

Transmission

Type
Mechanical shuttle / Partial power shift
Forward Gears
12 / 24 / 16 / 17 (Different transmission types)
Reverse Gears
12 / 24 / 16 / 16 (Different transmission types)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
114.1
Operating Weight (lb)
9466 to 12270

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Standard agricultural tires
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 2/3N
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
Open center
