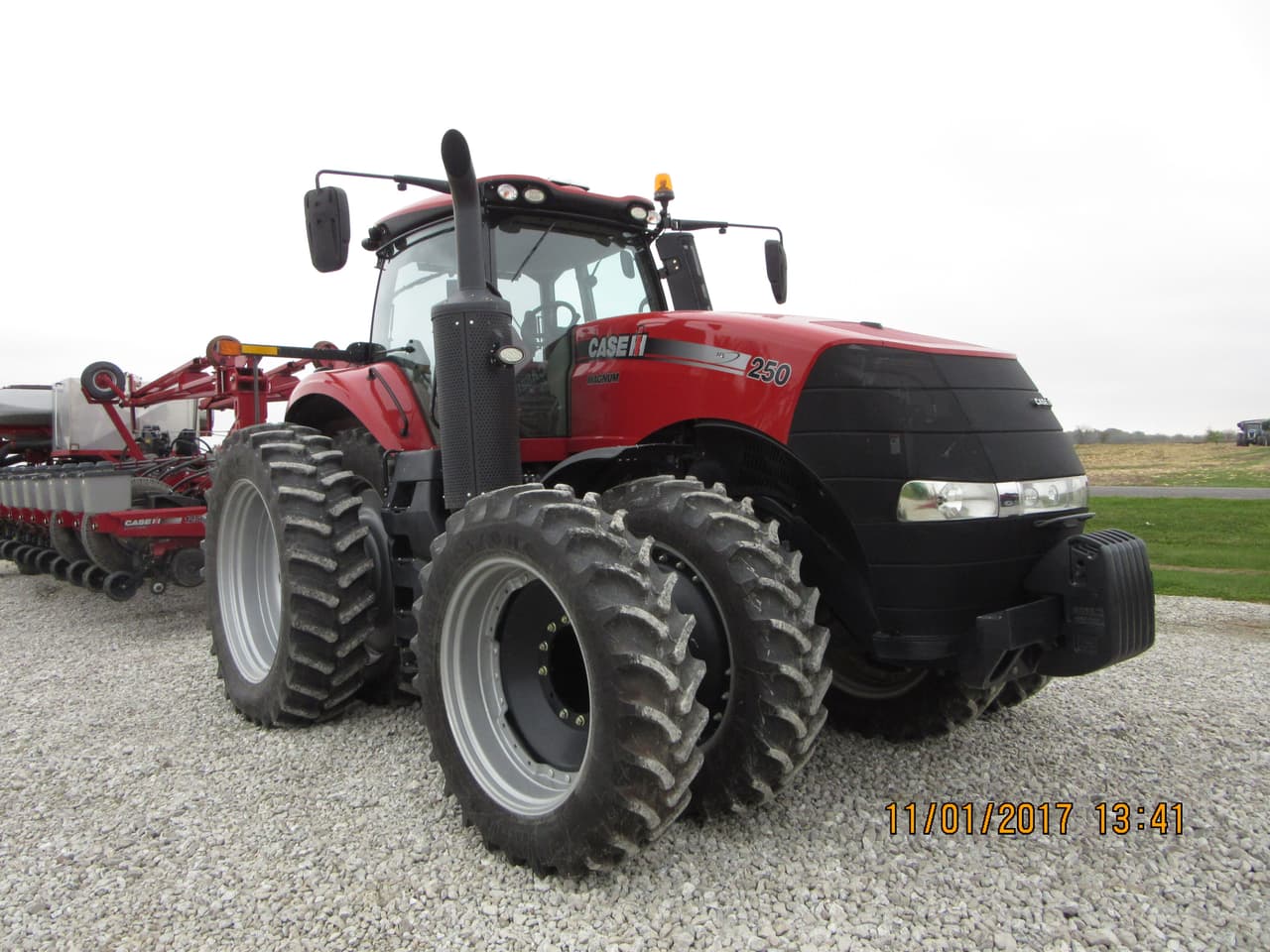

CaseIH Magnum 250

Last Updated: September 2024

Overview

The CaseIH Magnum 250 is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine that makes 252 horsepower. This engine is very big compared to other tractors, with a displacement of 504.5 cubic inches. It's also turbocharged and intercooled, which helps it work even harder.

This tractor is big and heavy, weighing 20,140 pounds. It's 234.3 inches long, 100.4 inches wide, and 128.5 inches tall. The Magnum 250 has four-wheel drive and uses hydrostatic power steering, making it easy to control. It has a 19-speed full power shift transmission, which gives the driver lots of options for different tasks. The tractor also has a good hydraulic system and a strong hitch for pulling heavy equipment.

CaseIH is known for making tough farm machines, and the Magnum 250 fits that reputation. It has some special features like a smart cooling fan and a wet disc clutch. The tractor uses SCR technology to control emissions, which is good for the environment. With its mix of power and features, the Magnum 250 is a great choice for farmers who need a strong, reliable tractor for their fields.
Show more...

Key Specifications

Category: Row Crop

Power Output: 252 hp (187.9 kW)

Transmission: 19-speed full power shift

Drive Type: 4WD

Operating Weight: 20140 lb (9135 kg)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
CDC/FPT
Cooling Type
Liquid-cooled
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
6
Displacement
504 ci (8.3 L)
Bore
4.49 in (114.0 mm)
Stroke
5.32 in (135.0 mm)
Rated RPM
2000
Power Output
252 hp (187.9 kW)

Transmission

Type
19-speed full power shift

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
