CaseIH Magnum 225

Last Updated: June 2024

Key Specifications

Category: Row Crop

Power Output: 225

Transmission: CVT and Full Power Shift

Drive Type: 4WD

Operating Weight: 19,000 and 20,140 respectively for different versions

Fuel Type: Diesel

Image Gallery

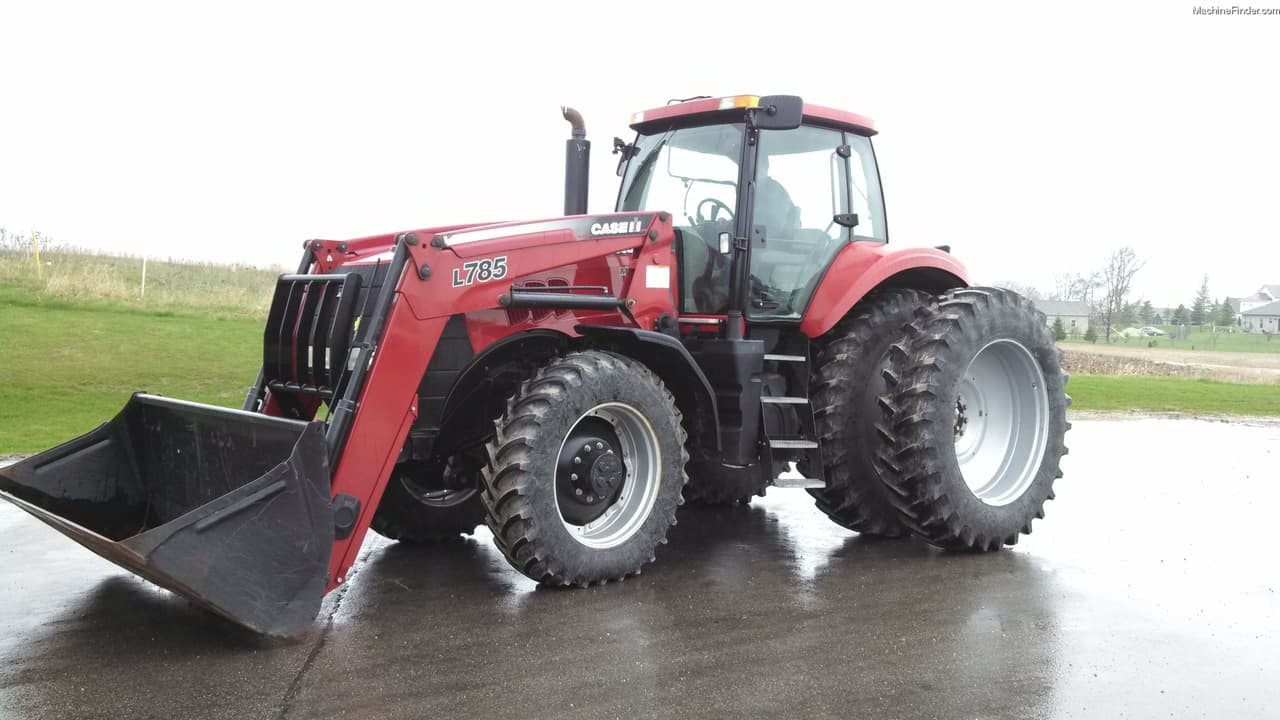

CaseIH Magnum 225 Tractor CaseIH Magnum 225 Tractor CaseIH Magnum 225 Tractor CaseIH Magnum 225 Tractor CaseIH Magnum 225 Tractor CaseIH Magnum 225 Tractor CaseIH Magnum 225 Tractor CaseIH Magnum 225 Tractor

CaseIH Magnum 225 vs. Similar Tractors

Power Output
Above Average
Greater than 79% of similar tractors.

Technical Specifications

Engine

Manufacturer
CaseIH and FPT from engine detail
Model
CDC from engine detail
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-Valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
410.6 and 504.5 respectively from engine detail
Bore (in)
4.094 and 4.488 respectively from engine detail
Stroke (in)
5.197 and 5.315 respectively from engine detail
Rated RPM
2200 and 2000 respectively from engine detail
Power Output (hp)
225

Transmission

Type
CVT and Full Power Shift
Forward Gears
Infinite (4-range) and 19 respectively for CVT and Full Power Shift
Reverse Gears
Infinite (2-range) and 4 respectively for CVT and Full Power Shift
Total Gears
-

Dimensions

Length (in)
234.3
Width (in)
100.4
Height (in)
128.5
Operating Weight (lb)
19,000 and 20,140 respectively for different versions

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Rear Type: II/III or III/IVN
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Pressure Flow Compensating (PFC)
