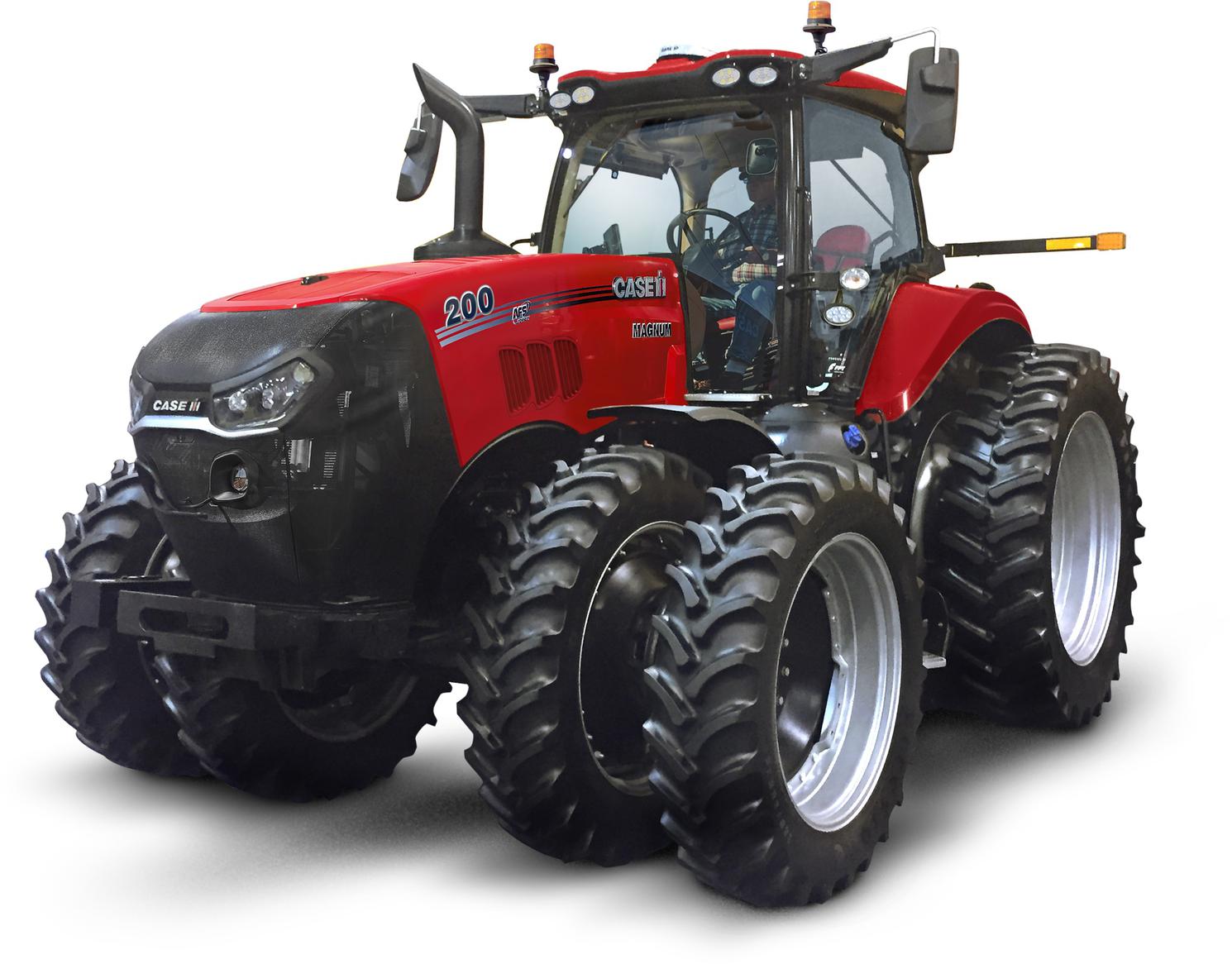

CaseIH Magnum 200

Last Updated: September 2024

Overview

The CaseIH Magnum 200 is a powerful row crop tractor built for serious farming. It has a strong four-wheel drive system and a full power shift transmission with 19 forward gears and 6 reverse gears. This gives farmers lots of options when working in different field conditions.

Under the hood, the Magnum 200 has a 6-cylinder diesel engine made by FPT. The engine is turbocharged and intercooled, which helps it produce 200 horsepower. It has above average displacement and power for its class. The tractor is big and heavy, weighing 20,705 pounds, which is very high compared to other tractors. It has a three-point hitch at the back for attaching various farm tools.

The Magnum 200 comes with a comfortable cab for the driver. It has special features like selective catalytic reduction to reduce emissions and an advanced fuel injection system. The hydraulic system is designed to handle tough jobs, and the tractor has both front and rear agricultural tires for good traction in the fields. Overall, the CaseIH Magnum 200 is a capable and reliable tractor for large-scale farming operations.
Show more...

Key Specifications

Category: Row Crop

Power Output: 200 hp (149.1 kW)

Transmission: Full Power Shift

Drive Type: Four-Wheel Drive (4WD)

Operating Weight: 20705 lb (9392 kg)

Fuel Type: Diesel

CaseIH Magnum 200 vs. Similar Tractors

Power Output

The Power Output for the CaseIH Magnum 200 is Above Average. It is greater than 76% of similar Row Crop tractors in our database.

Horsepower distribution of Row Crop tractors

(across 1.1K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH Magnum 200 is Above Average. It is greater than 86% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH Magnum 200 is Average. It is greater than 60% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH Magnum 200 is Average. It is greater than 58% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
FPT
Cooling Type
Liquid-Cooled with Viscous Fan
Valve Configuration
24 Valve
Fuel Type
Diesel
Induction Type
Wastegate Turbocharged Air-to-Air Intercooled
Cylinders
6
Displacement
411 ci (6.7 L)
Bore
4.09 in (104.0 mm)
Stroke
5.20 in (132.1 mm)
Rated RPM
2200
Power Output
200 hp (149.1 kW)

Transmission

Type
Full Power Shift
Forward Gears
19
Reverse Gears
6

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
Four-Wheel Drive (4WD)
Steering Type
Power
