CaseIH Magnum 190

Last Updated: June 2024

Overview

The CaseIH Magnum 190 is a robust row-crop tractor designed with powerful performance in mind. It features a 6-cylinder, 24-valve, turbocharged intercooled diesel engine, which has a displacement of 410.6 cubic inches and is rated at 190 horsepower. The Magnum 190's Hydrostatic power steering ensures smooth handling, while the versatile 18-speed full power shift transmission or an alternative continuously variable transmission (CVT) offer excellent control and operational flexibility. The Magnum 190 also boasts a Pressure Flow Compensated (PFC) hydraulic system, with a 4x4 MFWD 4WD chassis, ensuring it can handle a wide range of tasks.
Show more...

Key Specifications

Category: Row Crop

Power Output: 190

Transmission: 18-speed full power shift / Continuously variable transmission (CVT)

Drive Type: 4WD

Operating Weight: 19000

Fuel Type: Turbocharged intercooled diesel

Image Gallery

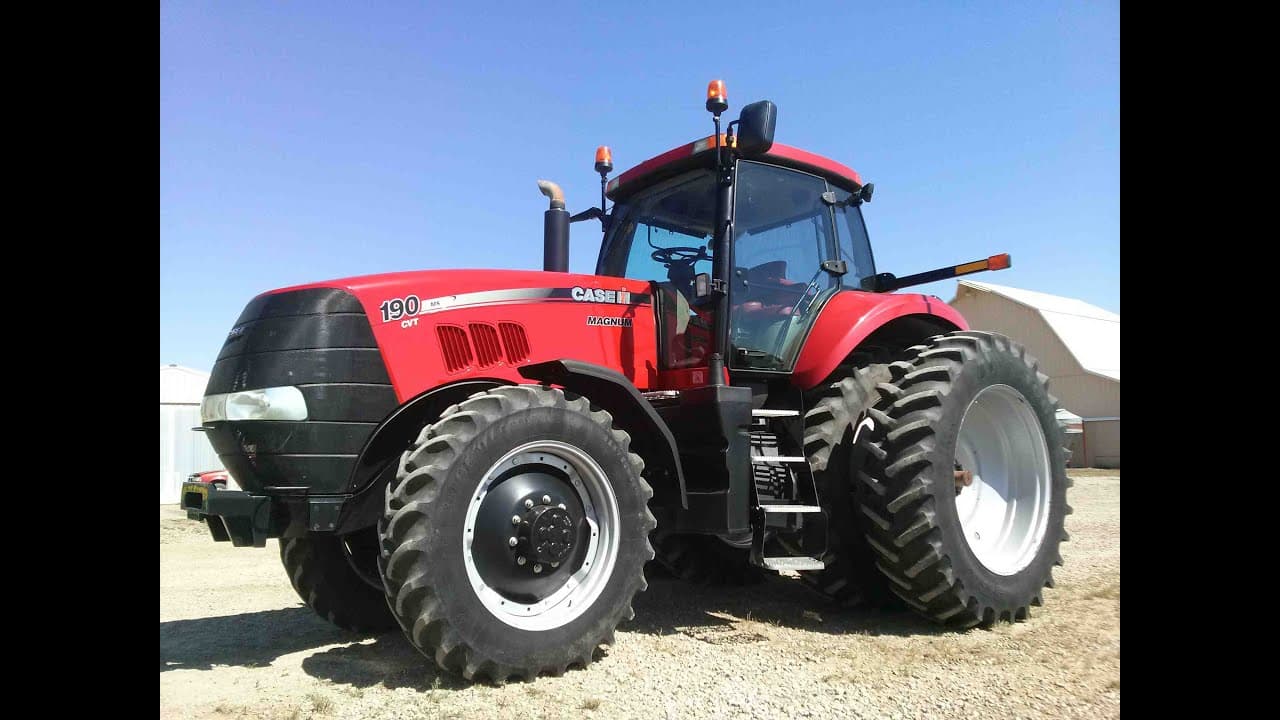

CaseIH Magnum 190 Tractor CaseIH Magnum 190 Tractor

CaseIH Magnum 190 vs. Similar Tractors

Power Output
Above Average
Greater than 70% of similar tractors.
Operating Weight
Average
Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
-
Cooling Type
Liquid-cooled, Viscous fan
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Turbocharged intercooled diesel
Induction Type
Turbocharged Intercooling
Cylinders
6
Displacement (ci)
410.6
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
190

Transmission

Type
18-speed full power shift / Continuously variable transmission (CVT)
Forward Gears
18 / Infinite (4-range)
Reverse Gears
6 / Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
128.5
Operating Weight (lb)
19000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II/III
Hitch Category
II/III
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Pressure Flow Compensated (PFC)
