CaseIH JXU 115

Last Updated: June 2024

Overview

The CaseIH JXU 115 is a utility tractor with a concise balance of power and efficiency. It is equipped with a 4WD wheel drive system and a powerful Iveco NEF F4C engine. This high-performance engine has 4 cylinders and is turbocharged to provide optimal performance. The tractor also features 12-speed forward and reverse mechanical shuttle transmission. The tractor's operating weight stands at 9369 lbs and it has an impressive length of 162.2 inches. This utility tractor proves its worth with its advanced features and capabilities.

Key Specifications

Category: Utility

Power Output: 111.3

Transmission: Mechanical shuttle / Two-speed power shift / Power shuttle

Drive Type: 4WD

Operating Weight: 9369

Fuel Type: Diesel

Image Gallery

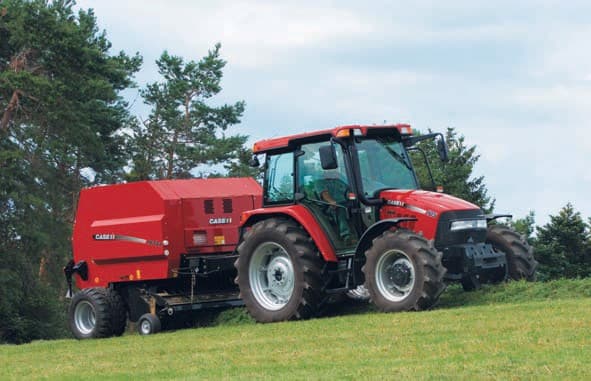

CaseIH JXU 115 Tractor

CaseIH JXU 115 vs. Similar Tractors

Power Output

Above Average

Greater than 85% of similar tractors.

Operating Weight

Average

Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer: Iveco
Model: NEF F4C
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged, Intercooled
Cylinders: 4
Displacement (ci): 273.7
Bore (in): 4.09
Stroke (in): 5.2
Rated RPM: 2300
Power Output (hp): 111.3

Transmission

Type: Mechanical shuttle / Two-speed power shift / Power shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 162.2
Width (in): -
Height (in): 103.2
Operating Weight (lb): 9369

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard tires (ag)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
