CaseIH JXU 105

Last Updated: June 2024

Overview

The CaseIH JXU 105 is a utility tractor, known for its versatility and strength. With a 2WD chassis and power steering, this tractor offers precision and optimal control under various working conditions. It features a mechanical shuttle transmission with 12 forward and reverse gears, ensuring smooth and efficient operations. The engine, manufactured by Iveco, is a turbocharged and intercooled diesel type with liquid-cooling features that prevent overheating, even during heavy operations. With a four-cylinder configuration and an impressive displacement of 273.7 ci, the engine guarantees excellent performance and reliability. Further, the tractor's dimensions and significant operating weight of 9369 lbs speak of its robust design. It is perfect for demanding tasks in diverse farming, landscaping, or construction projects.

Key Specifications

Category: Utility

Power Output: 104.6

Transmission: Mechanical shuttle

Drive Type: 2WD

Operating Weight: 9369

Fuel Type: Diesel

Image Gallery

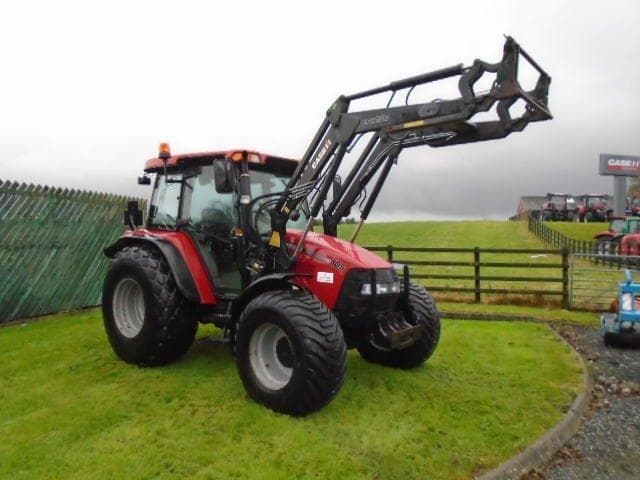

CaseIH JXU 105 Tractor

CaseIH JXU 105 vs. Similar Tractors

Power Output

Above Average

Greater than 83% of similar tractors.

Operating Weight

Average

Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer: Iveco
Model: NEF F4C
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 4
Displacement (ci): 273.7
Bore (in): 4.09
Stroke (in): 5.2
Rated RPM: 2300
Power Output (hp): 104.6

Transmission

Type: Mechanical shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 162.2
Width (in): -
Height (in): 107.9 (ROPS), 103.2 (Cab)
Operating Weight (lb): 9369

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): 10
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Available with ROPS or Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
