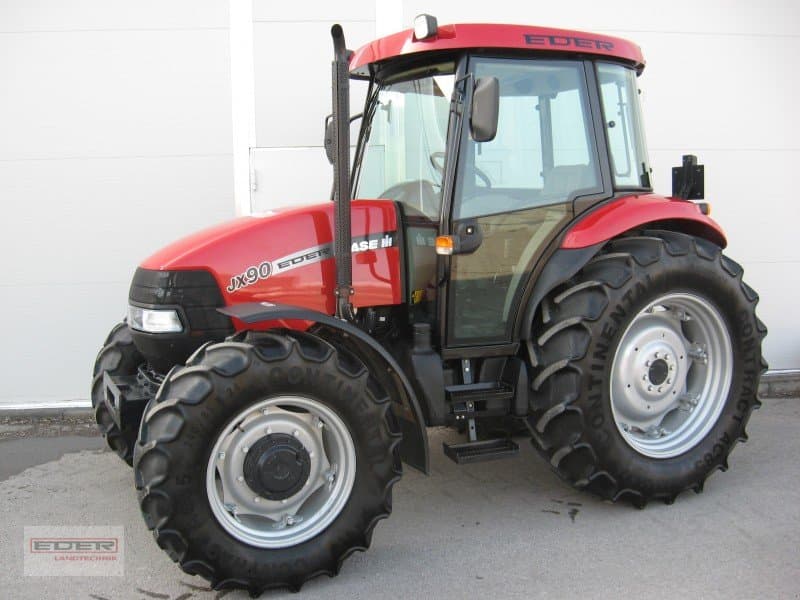

CaseIH JX90

Last Updated: June 2024

Overview

The CaseIH JX90 is a 2WD/4WD utility tractor from the JX series. This tractor was manufactured by Turk Tractor for distributor CaseIH in Ankara, Turkey from 2007 to 2008. The CaseIH JX90 is equipped with a 3.9L (238.5 cu·in) four-cylinder diesel engine from Iveco. It features turbocharged intercooling and direct injection with a mechanical governor. The tractor has a hydrostatic power steering system and can be fitted with a two-post folding ROPS or an optional cab. The CaseIH JX90 uses a 12 speed mechanical shuttle transmission system and is fitted with hydraulic wet disc brakes (in USA) or mechanical wet disc brakes. The tractor uses an open center hydraulic system and a rear II/I hitch category system with a lifting capacity of 5025lbs at 610mm/24in.

Key Specifications

Category: Utility

Power Output: 82

Transmission: 12-Speed Mechanical Shuttle

Drive Type: 2WD

Fuel Type: Diesel

Lift Capacity: 5025

Image Gallery

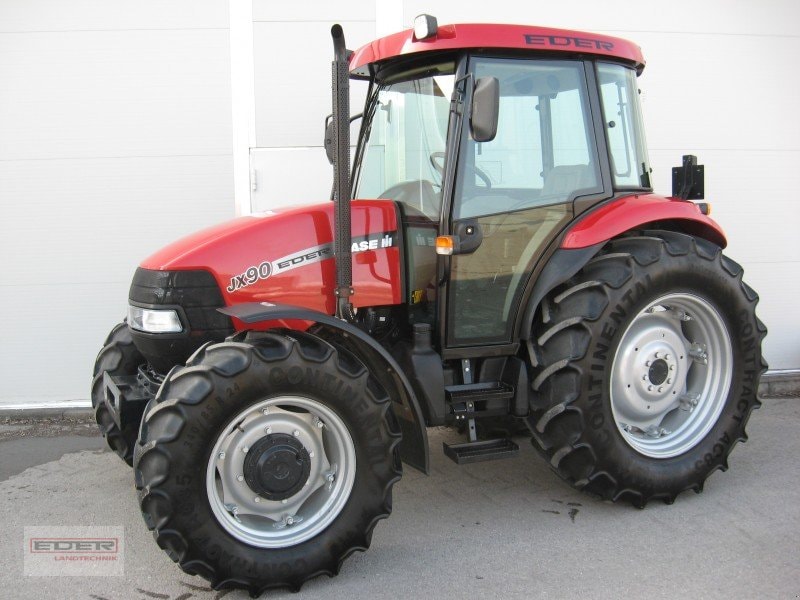

CaseIH JX90 Tractor

CaseIH JX90 vs. Similar Tractors

Power Output

Above Average

Greater than 72% of similar tractors.

Hitch Capacity

Above Average

Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer: Iveco
Model: 8045.25
Cooling Type: Liquid-Cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged Intercooled
Cylinders: 4
Displacement (ci): 238.5
Bore (in): 4.09
Stroke (in): 4.53
Rated RPM: 2500
Power Output (hp): 82

Transmission

Type: 12-Speed Mechanical Shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 158.7
Width (in): 71.2
Height (in): 101.1 (with ROPS), 103.1 (with cab)
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: Rear PTO: Independent w/ mechanical dry disc clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 540E (optional)
PTO Speed 3 (rpm): 1000 (optional)

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2008
Hitch Type: II/I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): 5025
Operator Station Type: Two-post folding ROPS or Cab (optional)
Starter Type: Electric
Brake Type: Hydraulic Wet Disc (USA) or Mechanical Wet Disc
Hydraulic System Type: Open Center
