CaseIH JX80U

Last Updated: June 2024

Overview

The CaseIH JX80U is a utility tractor outfitted with a 4-cycle, liquid-cooled Iveco diesel engine with a displacement of 238.5 cubic inches. It features power steering and a 24-speed two-speed power shift transmission, with 24 forward and 12 reverse gears. The tractor's weight ranges between 7855 and 8330 pounds without ballast and between 9505 and 9975 pounds with ballast. The tractor has both a cab and ROPS option available, providing versatile options for operator safety. It has an open center hydraulic system and a rear Type II hitch. The tractor's operational details show attention to performance, power, and resilience, making it an excellent choice for a variety of agricultural tasks.

Key Specifications

Category: Utility

Power Output: 74

Transmission: Two-Speed Power Shift

Drive Type: 2WD

Operating Weight: 7855 to 8330 (Without Ballast), 9505 to 9975 (With Ballast)

Fuel Type: Diesel

Image Gallery

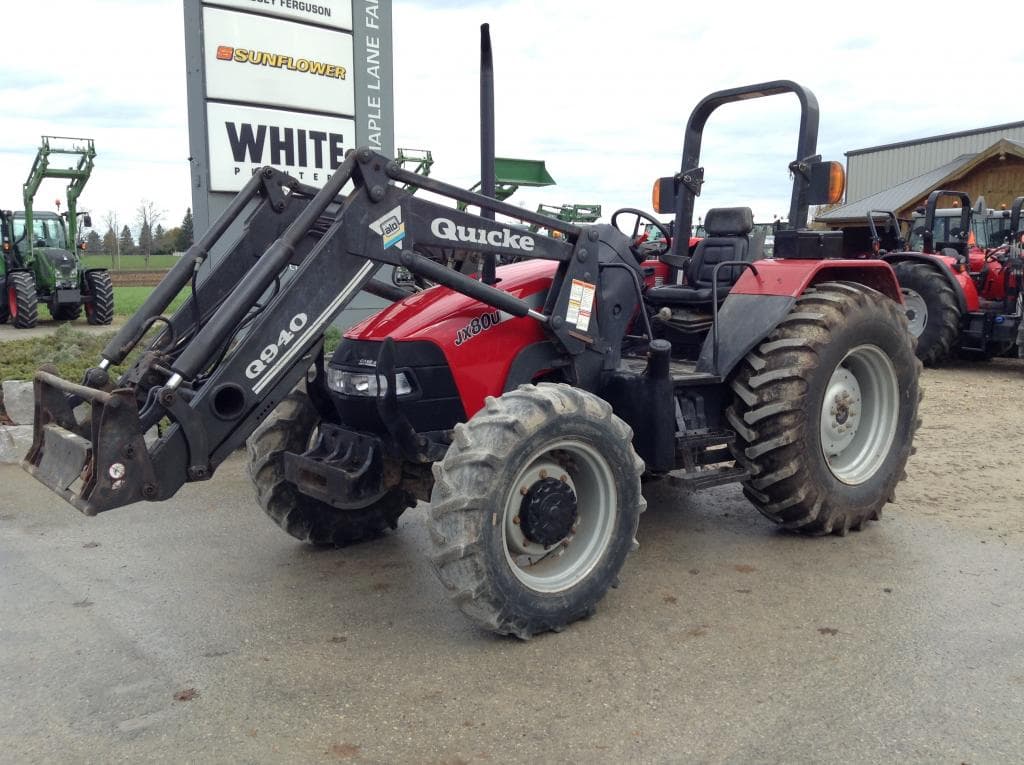

CaseIH JX80U Tractor

CaseIH JX80U vs. Similar Tractors

Power Output

Average

Greater than 67% of similar tractors.

Operating Weight

Excellent

Greater than 92% of similar tractors.

Technical Specifications

Engine

Manufacturer: Iveco
Model: -
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 4
Displacement (ci): 238.5
Bore (in): 4.094
Stroke (in): 4.528
Rated RPM: 2500
Power Output (hp): 74

Transmission

Type: Two-Speed Power Shift
Forward Gears: 24
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): 108.75 (ROPS), 103.25 (Cab), 109.5 (Exhaust)
Operating Weight (lb): 7855 to 8330 (Without Ballast), 9505 to 9975 (With Ballast)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power Steering
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Rear Type II
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab, ROPS (Roll-Over Protection System)
Starter Type: 12-Volt Electric Starter
Brake Type: -
Hydraulic System Type: Open Center
