CaseIH JX55 Maxxima

Last Updated: June 2024

Overview

The CaseIH JX55 Maxxima tractor is powered by an Iveco 3-cylinder, liquid-cooled diesel engine with a displacement of 165.4 cubic inches. Engine power output is 58 horsepower, and it operates at a rated speed of 2500 RPM. The tractor features a hydrostatic power steering system for smooth and efficient handling. In terms of transmission, there are two types: a mechanical shuttle with 12 forward and 12 reverse gears, and a creeper transmission that provides 20 forward and 12 reverse gears. This tractor is notably versatile in its weight options, offering a 2WD weight of 5655 lbs and a 4WD weight of 6705 lbs. Its dimensions are: a length of 154.9 inches, a height of 100.3 inches, and a wheelbase of 83.4 inches.

Key Specifications

Power Output: 58

Transmission: Mechanical shuttle / Creeper

Operating Weight: 5655 (2WD) / 6705 (4WD)

Fuel Type: Diesel

Image Gallery

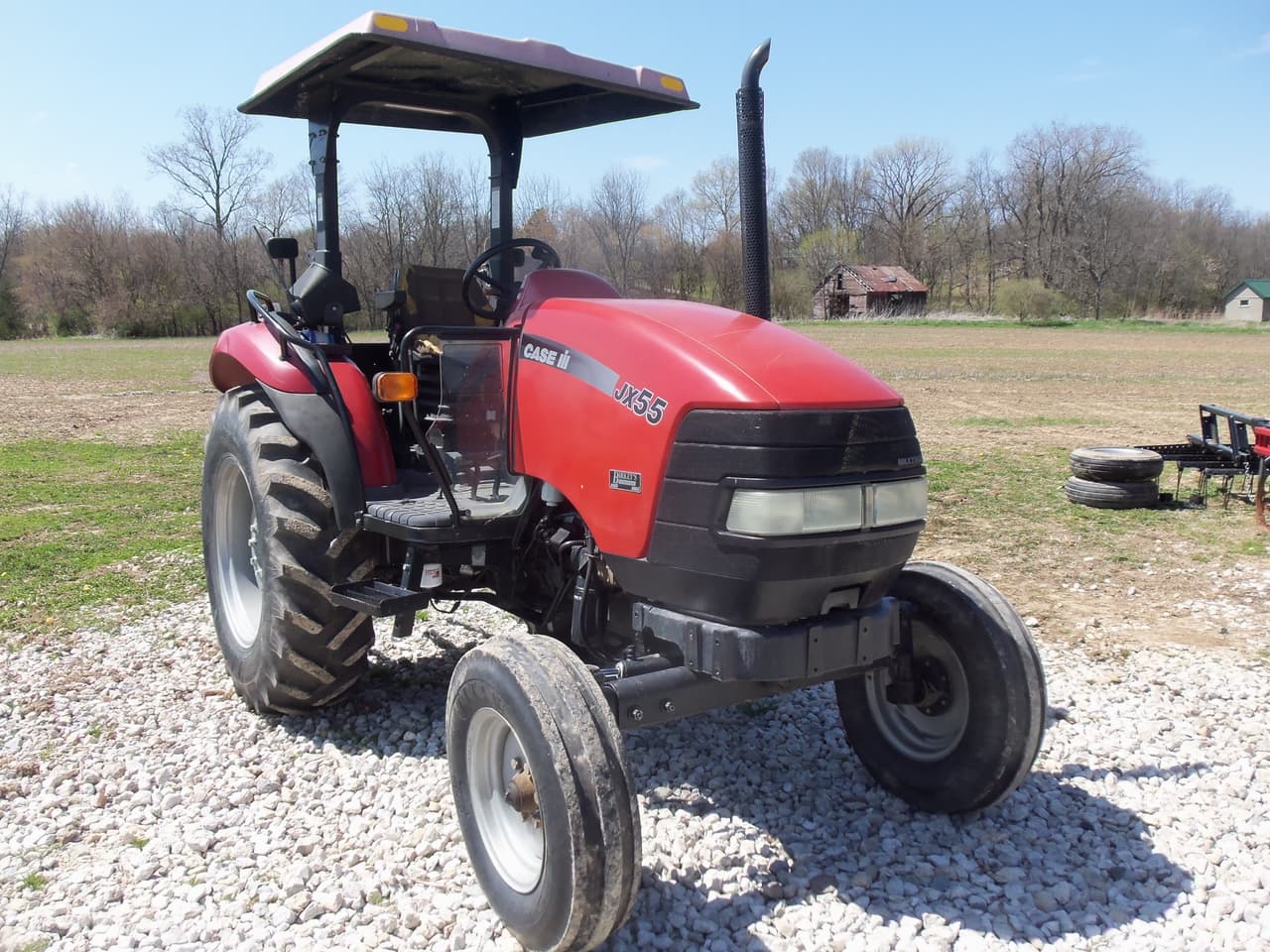

CaseIH JX55 Maxxima Tractor

Technical Specifications

Engine

Manufacturer: Iveco
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 165.4
Bore (in): 3.937
Stroke (in): 4.528
Rated RPM: 2500
Power Output (hp): 58

Transmission

Type: Mechanical shuttle / Creeper
Forward Gears: 12 (standard) / 20 (with creeper)
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 154.9
Width (in): -
Height (in): 100.3
Operating Weight (lb): 5655 (2WD) / 6705 (4WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: II/I
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open Center
Starter Type: 12 volts
Brake Type: -
Hydraulic System Type: Open Center
