CaseIH JX1090U

Last Updated: June 2024

Overview

The CaseIH JX1090U is a utility tractor, with a 2WD, 4x2 chassis. It features a power steering system and has a 12-speed synchronized shuttle transmission. The CaseIH branded engine is a turbocharged, liquid-cooled diesel with 4 cylinders and a displacement of 273.7 cubic inches. It has a bore of 4.094 inches, a stroke of 5.197 inches and is rated at 2500 RPM, providing a powerful 90 horsepower. The tractor weighs between 6834 to 8895 lbs.

Key Specifications

Category: Utility

Power Output: 90

Transmission: Synchronized shuttle

Drive Type: 2WD

Operating Weight: 6834 to 8895

Fuel Type: Diesel

Image Gallery

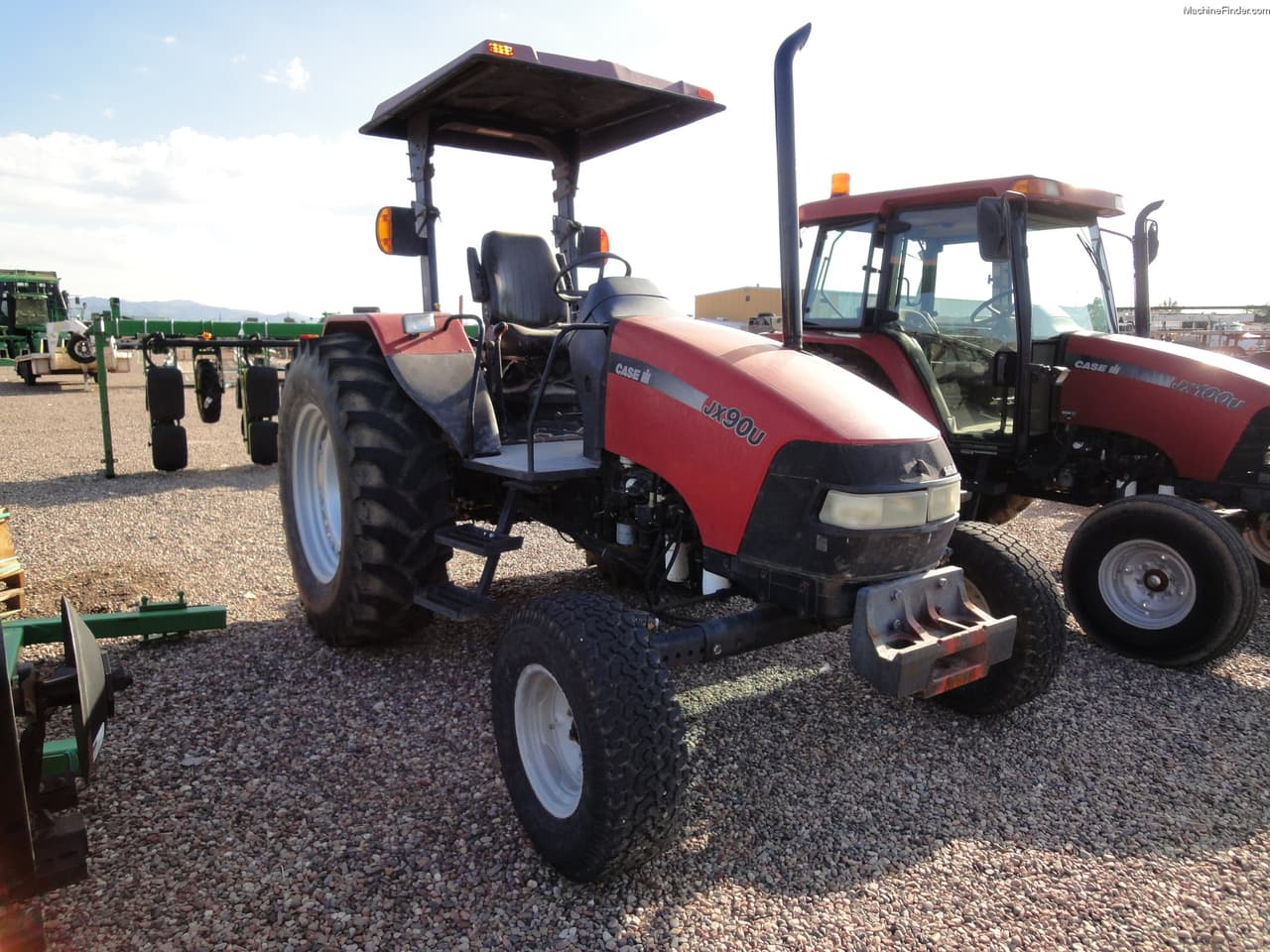

CaseIH JX1090U Tractor

CaseIH JX1090U vs. Similar Tractors

Power Output

Above Average

Greater than 77% of similar tractors.

Operating Weight

Excellent

Greater than 91% of similar tractors.

Technical Specifications

Engine

Manufacturer: CaseIH
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 273.7
Bore (in): 4.094
Stroke (in): 5.197
Rated RPM: 2500
Power Output (hp): 90

Transmission

Type: Synchronized shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 6834 to 8895

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: II/I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: Open Center
