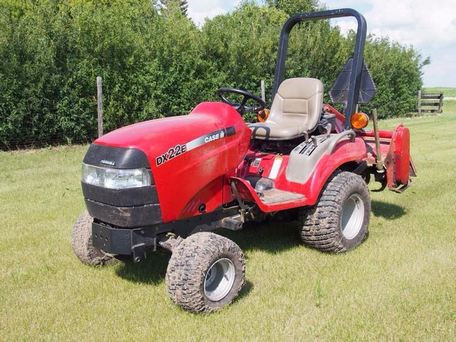

CaseIH Farmall DX22E

Last Updated: June 2024

Overview

The CaseIH Farmall DX22E is a sub-compact utility tractor designed with versatility and efficiency in mind. Powered by a robust Shibaura ISM-S753 engine, it offers a solid 22 horsepower. Its liquid-cooled, 3-cylinder diesel engine has a displacement of 58.2 cubic inches, maintaining a smooth operation even under hefty loads. The tractor's hydrostatic transmission ensures infinite forward and reverse gears, facilitating easier handling and maneuvering. With a 4x4 MFWD chassis, the tractor can tackle varied terrains, and with 1314 lbs as its operating weight, the DX22E provides stability for a wide array of tasks. Whether for farming or other heavy-duty tasks, the CaseIH Farmall DX22E could be a reliable choice.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 22

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1314

Fuel Type: Diesel

Image Gallery

CaseIH Farmall DX22E Tractor CaseIH Farmall DX22E Tractor CaseIH Farmall DX22E Tractor CaseIH Farmall DX22E Tractor CaseIH Farmall DX22E Tractor CaseIH Farmall DX22E Tractor CaseIH Farmall DX22E Tractor CaseIH Farmall DX22E Tractor CaseIH Farmall DX22E Tractor CaseIH Farmall DX22E Tractor

CaseIH Farmall DX22E vs. Similar Tractors

Power Output
Below Average
Greater than 13% of similar tractors.
Operating Weight
Poor
Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
ISM-S753
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
58.2
Bore (in)
2.953
Stroke (in)
2.835
Rated RPM
3000
Power Output (hp)
22

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
1314

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
