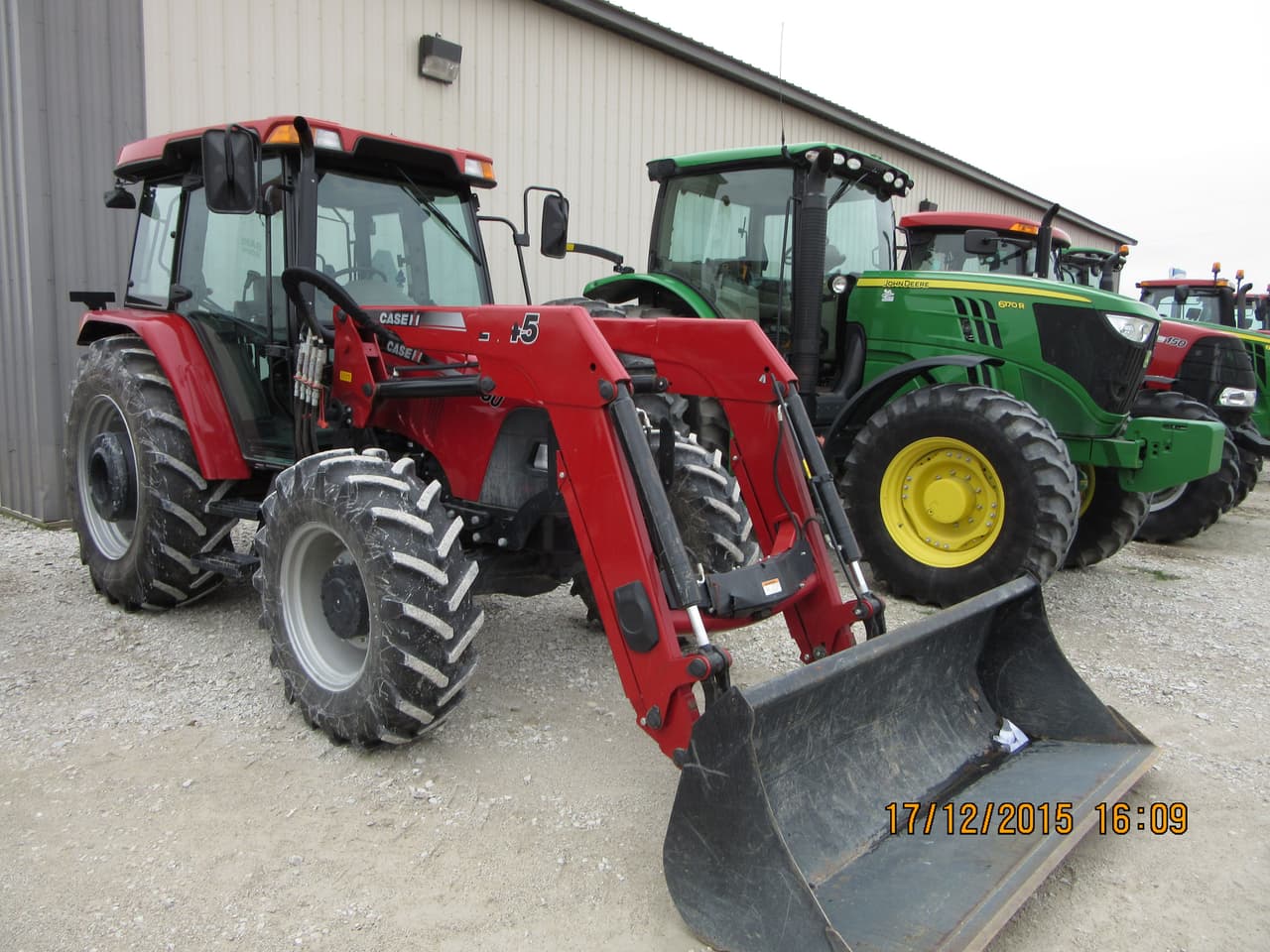

CaseIH Farmall 85U

Last Updated: September 2024

Overview

The CaseIH Farmall 85U is a versatile utility tractor designed for various farm tasks. It features a 2WD drive system and hydrostatic power steering for easy control. The tractor is powered by a CaseIH FPT engine, which is a 4-cylinder, turbocharged and intercooled diesel engine. This engine produces 85 hp at 2300 rpm, making it suitable for many farm jobs.

The Farmall 85U has a mechanical shuttle transmission with 12 forward and 12 reverse gears, giving the operator plenty of options for different tasks. It has an operating weight of 6393 lb, which is above average for its class. The tractor comes with a Category 2 rear hitch, useful for attaching various implements. Farmers can choose between a ROPS (Roll-Over Protective Structure) or a cab version, depending on their needs. The tractor also features an open center hydraulic system and an electric starter with a grid heater for cold weather starts.
Show more...

Key Specifications

Category: Utility

Power Output: 85 hp (63.4 kW)

Transmission: Mechanical shuttle

Drive Type: 2WD

Operating Weight: 6393 lb (2900 kg)

Fuel Type: Diesel

CaseIH Farmall 85U vs. Similar Tractors

Power Output

The Power Output for the CaseIH Farmall 85U is Above Average. It is greater than 75% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH Farmall 85U is Average. It is greater than 64% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH Farmall 85U is Above Average. It is greater than 80% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH Farmall 85U is Average. It is greater than 42% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
CaseIH
Model
FPT
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
4
Displacement
274 ci (4.5 L)
Bore
4.09 in (104.0 mm)
Stroke
5.20 in (132.0 mm)
Rated RPM
2300
Power Output
85 hp (63.4 kW)

Transmission

Type
Mechanical shuttle
Forward Gears
12
Reverse Gears
12

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
